Alpha M 2400 Grizzly, Flail mulcher with hydraulic sideshift 240 cm

Available to order 0.0 0 reviews Item no.: A01-0033

Parameters

Weight
580 kg
Hammer PCs
18 pcs
Working width
2400 mm
Sparepart Weight
1650 gr
Minimum HP
60 hp
CAT
II
V-Belts
5 pcs
Rotor Diameter
162 mm
Total diameter
452 mm
Width
2660 mm
Height
860 mm
Length
880 mm
Sideshift movement to the left
1270 mm
Sideshift movement to the right
1130 mm
Minimum Left side move
870 mm
Minimum Right side move
1530 mm
RPM
540 rpm
Drivegear
tractor PTO
Max tree diameter
7-8 cm
Sidemove
1

Description

Order now and get a gratis cardan shaft!

The extra heavy built Alpha M Grizzly is ideal in semi forestry conditions. Equipped with all options such as belt tensioner, hydraulic mulch doors and side shift. It is one of the most convenient machine for heavy all around use from stubblefields and overgrown fields. The cold forged serrated hammers can cut up to 10 cm wood as well as dense weed fields. The main shaft is equipped with SKF bearings and is very strong and resistant to bumps and small obstacles. The hydraulic operated doors allow an easy and comfortable switch from mulching to mowing with a higher working speed.

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com — our colleagues reply within 2-4 hours!

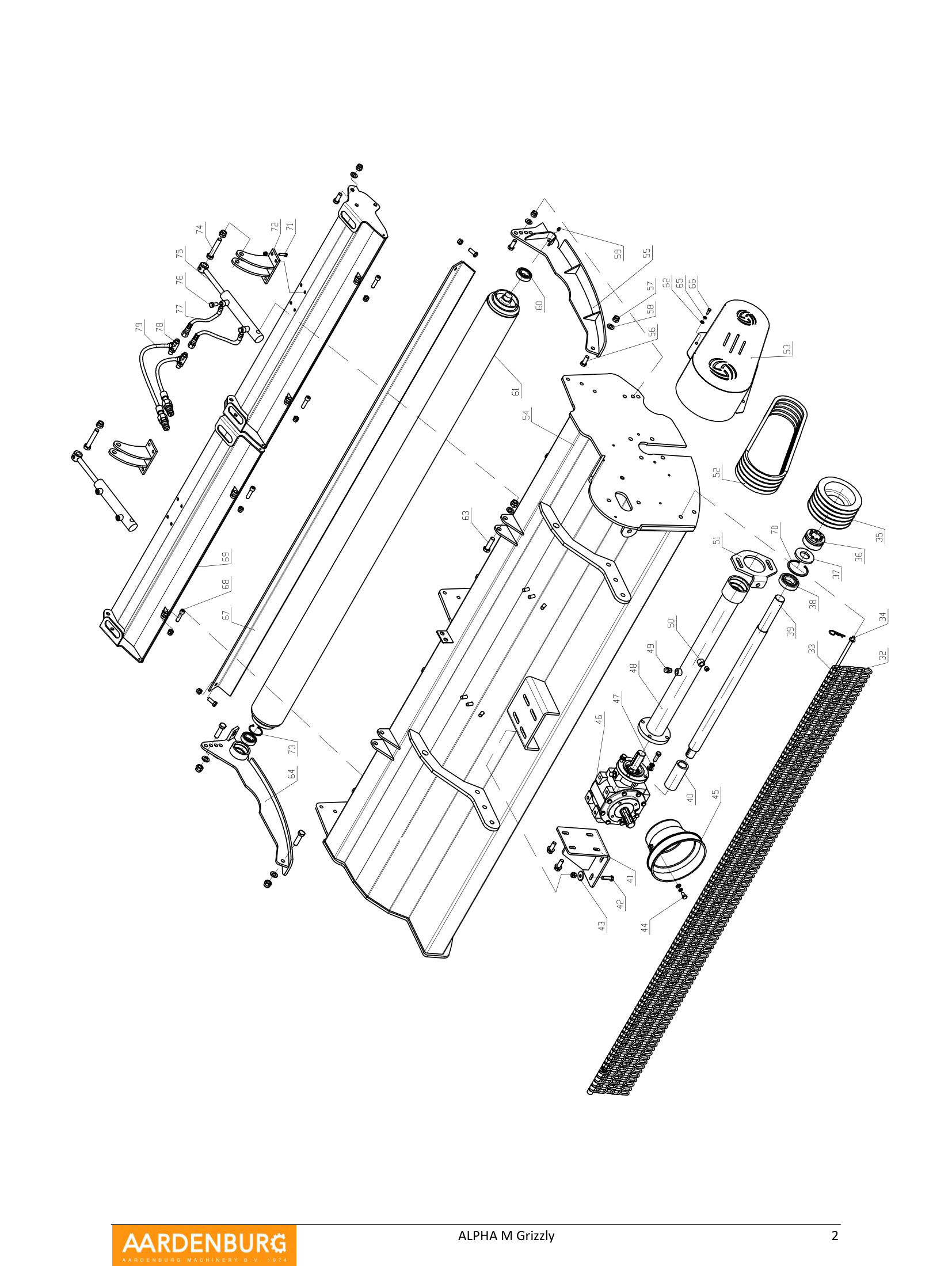

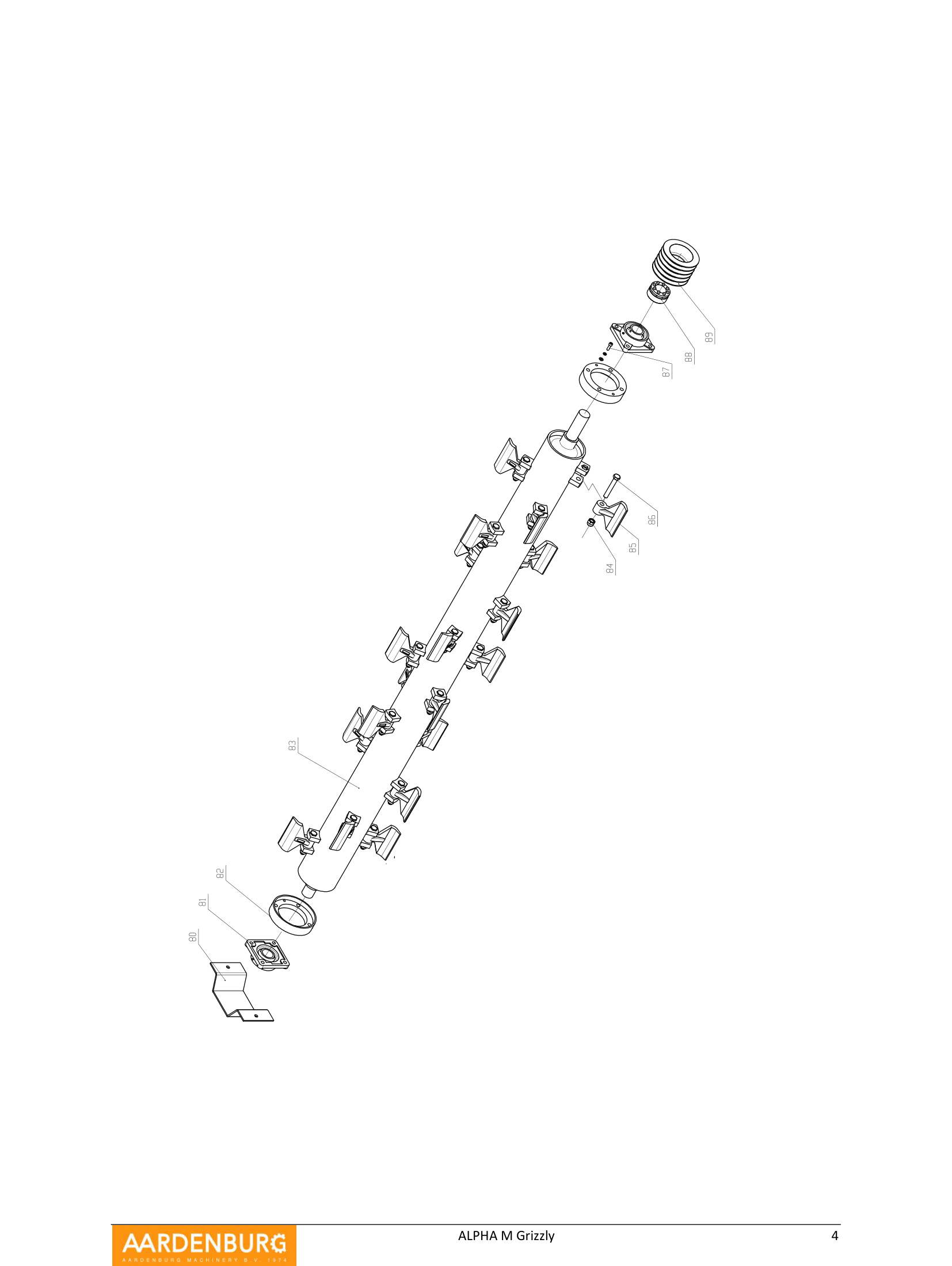

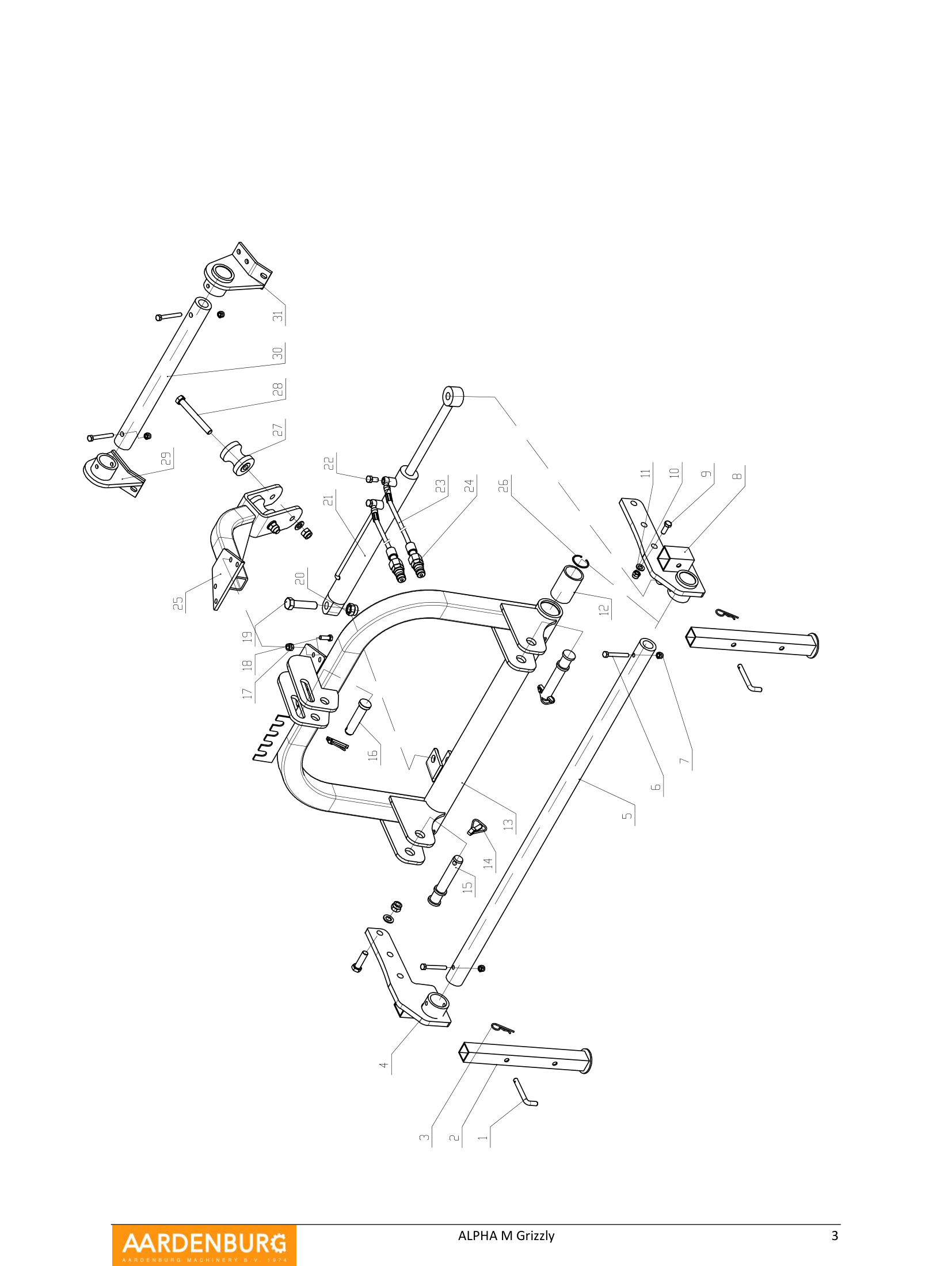

Exploded view


Diagrams

1
AARDENBURG
Locking pin stand foot

Item no.: A1-26534 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Stand foot

Item no.: A1-26535 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Locking clip

Item no.: A1-26536 · 4 pcs

Available to order
Price on request
4
AARDENBURG
Right connection weldment

Item no.: A1-26537 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Main guide rail

Item no.: A1-26538 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Bolt M10x80

Item no.: A1-26539 · 4 pcs

Available to order
Price on request
7
AARDENBURG
Lock Nut M10

Item no.: A1-26540 · 12 pcs

Available to order
Price on request
8
AARDENBURG
Left connection weldment

Item no.: A1-26541 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Bolt M16x55

Item no.: A1-26542 · 6 pcs

Available to order
Price on request
10
AARDENBURG
Washer 16

Item no.: A1-26543 · 12 pcs

Available to order
Price on request
11
AARDENBURG
Lock nut M16

Item no.: A1-26544 · 8 pcs

Available to order
Price on request
12
AARDENBURG
Nylon sleeve

Item no.: A1-26545 · 2 pcs

Available to order
Price on request
13
AARDENBURG
3-point-linkage weldment

Item no.: A1-26546 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Lock Pin

Item no.: A1-26547 · 5 pcs

Available to order
Price on request
15
AARDENBURG
Lower attachment pin

Item no.: A1-26548 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Upper attachment pin

Item no.: A1-26549 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Lock nut M12

Item no.: A1-26550 · 25 pcs

Available to order
Price on request
18
AARDENBURG
Bolt M12x40

Item no.: A1-26551 · 6 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M20x80

Item no.: A1-26552 · 2 pcs

Available to order
Price on request
20
AARDENBURG
Lock nut M20

Item no.: A1-26553 · 2 pcs

Available to order
Price on request
21
AARDENBURG
Cylinder

Item no.: A1-26554 · 1 pcs

Available to order
Price on request
22
AARDENBURG
Bolt M14x1,5x40

Item no.: A1-26555 · 2 pcs

Available to order
Price on request
23
AARDENBURG
Oil pipe

Item no.: A1-26556 · 2 pcs

Available to order
Price on request
24
AARDENBURG
Coupling G1/2

Item no.: A1-26557 · 2 pcs

Available to order
Price on request
25
AARDENBURG
Upper 3-point-linkage weldment

Item no.: A1-26558 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Inner circlip 60

Item no.: A1-26559 · 2 pcs

Available to order
3,00 EUR +VAT
27
AARDENBURG
Nylon roller

Item no.: A1-26560 · 2 pcs

Available to order
Price on request
28
AARDENBURG
Bolt M16x130

Item no.: A1-26561 · 2 pcs

Available to order
Price on request
29
AARDENBURG
Right bracket

Item no.: A1-26562 · 1 pcs

Available to order
Price on request
30
AARDENBURG
Upper guide rail

Item no.: A1-26563 · 1 pcs

Available to order
Price on request
31
AARDENBURG
Left bracket

Item no.: A1-26564 · 1 pcs

Available to order
Price on request
32
AARDENBURG
Guard chain

Item no.: A1-26565 · 114 pcs

Available to order
Price on request
33
AARDENBURG
Bushing for guard chain

Item no.: A1-26566 · 114 pcs

Available to order
Price on request
34
AARDENBURG
Bar for guard chain 1.600

Item no.: A1-26567 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Bar for guard chain 1.800

Item no.: A1-26568 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Bar for guard chain 2.000

Item no.: A1-26569 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Bar for guard chain 2.200

Item no.: A1-26570 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Bar for guard chain 2.400

Item no.: A1-26571 · 1 pcs

Available to order
Price on request
35
AARDENBURG
Large V-belt pulley

Item no.: A1-26572 · 1 pcs

Available to order
Price on request
36
AARDENBURG
Power lock bushing

Item no.: A1-26573 · 1 pcs

Available to order
30,00 EUR +VAT
37
AARDENBURG
Oil seal FB40x80x10

Item no.: A1-26574 · 1 pcs

Available to order
Price on request
38
AARDENBURG Popular part
Bearing 6208-2RS

Item no.: A1-26575 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Transmission shaft 1.600, 1.800

Item no.: A1-26576 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Transmission shaft 2.000, 2.200

Item no.: A1-26577 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Transmission shaft 2.400

Item no.: A1-26578 · 1 pcs

Available to order
Price on request
40
AARDENBURG
Connection bushing

Item no.: A1-26579 · 1 pcs

Available to order
Price on request
41
AARDENBURG
Weldment bracket for gearbox

Item no.: A1-26580 · 1 pcs

Available to order
Price on request
42
AARDENBURG
Bolt M12x35

Item no.: A1-26581 · 22 pcs

Available to order
Price on request
43
AARDENBURG
Large washer 12

Item no.: A1-26582 · 16 pcs

Available to order
Price on request
44
AARDENBURG
Bolt M10x20

Item no.: A1-26583 · 4 pcs

Available to order
Price on request
45
AARDENBURG
PTO Guard

Item no.: A1-26584 · 1 pcs

Available to order
Price on request
46
AARDENBURG
Gearbox

Item no.: A1-26585 · 1 pcs

Available to order
Price on request
47
AARDENBURG
Washer 12

Item no.: A1-26586 · 4 pcs

Available to order
Price on request
48
AARDENBURG
Transmission tube weldment 1.600, 1.800

Item no.: A1-26587 · 1 pcs

Available to order
Price on request
48
AARDENBURG
Transmission tube weldment 2.000, 2.200

Item no.: A1-26588 · 1 pcs

Available to order
Price on request
48
AARDENBURG
Transmission tube weldment 2.400

Item no.: A1-26589 · 1 pcs

Available to order
Price on request
49
AARDENBURG
Vent / filler plug

Item no.: A1-26590 · 1 pcs

Available to order
Price on request
50
AARDENBURG
Level plug

Item no.: A1-26591 · 1 pcs

Available to order
Price on request
51
AARDENBURG
Tension plate

Item no.: A1-26592 · 1 pcs

Available to order
Price on request
52 V-Belt
AARDENBURG Popular part
V-Belt

Item no.: A1-26593 · 5 pcs

Available to order
22,19 EUR +VAT
53
AARDENBURG
V-Belt cover weldment

Item no.: A1-26594 · 1 pcs

Available to order
Price on request
54
AARDENBURG
Mulcher deck weldment 1.600

Item no.: A1-26595 · 1 pcs

Available to order
Price on request
54
AARDENBURG
Mulcher deck weldment 1.800

Item no.: A1-26596 · 1 pcs

Available to order
Price on request
54
AARDENBURG
Mulcher deck weldment 2.000

Item no.: A1-26597 · 1 pcs

Available to order
Price on request
54
AARDENBURG
Mulcher deck weldment 2.200

Item no.: A1-26598 · 1 pcs

Available to order
Price on request
54
AARDENBURG
Mulcher deck weldment 2.400

Item no.: A1-26599 · 1 pcs

Available to order
Price on request
55
AARDENBURG
Left skids

Item no.: A1-26600 · 1 pcs

Available to order
Price on request
56
AARDENBURG
Bolt M14x40

Item no.: A1-26601 · 6 pcs

Available to order
Price on request
57
AARDENBURG
Lock Nut M14

Item no.: A1-26602 · 6 pcs

Available to order
Price on request
58
AARDENBURG
Washer 14

Item no.: A1-26603 · 12 pcs

Available to order
Price on request
59
AARDENBURG
Grease nipple M8x1

Item no.: A1-26604 · 4 pcs

Available to order
Price on request
60
AARDENBURG
Bearing 1206

Item no.: A1-26605 · 2 pcs

Available to order
165,00 EUR +VAT
61
AARDENBURG
Trailing roller weldment 1.600

Item no.: A1-26606 · 1 pcs

Available to order
Price on request
61
AARDENBURG
Trailing roller weldment 1.800

Item no.: A1-26607 · 1 pcs

Available to order
Price on request
61
AARDENBURG
Trailing roller weldment 2.000

Item no.: A1-26608 · 1 pcs

Available to order
Price on request
61
AARDENBURG
Trailing roller weldment 2.200

Item no.: A1-26609 · 1 pcs

Available to order
Price on request
61
AARDENBURG
Trailing roller weldment 2.400

Item no.: A1-26610 · 1 pcs

Available to order
390,00 EUR +VAT
62
AARDENBURG
Washer 8

Item no.: A1-26611 · 3 pcs

Available to order
Price on request
63
AARDENBURG
Bolt M16x90

Item no.: A1-26612 · 2 pcs

Available to order
Price on request
64
AARDENBURG
Right skid

Item no.: A1-26613 · 1 pcs

Available to order
Price on request
65
AARDENBURG
Spring washer 8

Item no.: A1-26614 · 3 pcs

Available to order
Price on request
66
AARDENBURG
Bolt M8x16

Item no.: A1-26615 · 3 pcs

Available to order
Price on request
67
AARDENBURG
Mud scraper 1.600

Item no.: A1-26616 · 1 pcs

Available to order
Price on request
67
AARDENBURG
Mud scraper 1.800

Item no.: A1-26617 · 1 pcs

Available to order
Price on request
67
AARDENBURG
Mud scraper 2.000

Item no.: A1-26618 · 1 pcs

Available to order
Price on request
67
AARDENBURG
Mud scraper 2.200

Item no.: A1-26619 · 1 pcs

Available to order
Price on request
67
AARDENBURG
Mud scraper 2.400

Item no.: A1-26620 · 1 pcs

Available to order
Price on request
68
AARDENBURG
Bolt M12x60

Item no.: A1-26621 · 4 pcs

Available to order
3,00 EUR +VAT
69
AARDENBURG
Mulch door weldment 1.600

Item no.: A1-26622 · 1 pcs

Available to order
Price on request
69
AARDENBURG
Mulch door weldment 1.800

Item no.: A1-26623 · 1 pcs

Available to order
Price on request
69
AARDENBURG
Mulch door weldment 2.000

Item no.: A1-26624 · 2 pcs

Available to order
Price on request
69
AARDENBURG
Mulch door weldment 2.200

Item no.: A1-26625 · 2 pcs

Available to order
Price on request
69
AARDENBURG
Mulch door weldment 2.400

Item no.: A1-26626 · 2 pcs

Available to order
Price on request
70
AARDENBURG
Inner circlip 80

Item no.: A1-26627 · 1 pcs

Available to order
3,00 EUR +VAT
71
AARDENBURG
Bolt M10x30

Item no.: A1-26628 · 8 pcs

Available to order
Price on request
72
AARDENBURG
Cylinder mounting bracket

Item no.: A1-26629 · 2 pcs

Available to order
Price on request
73
AARDENBURG
Inner circlip 62

Item no.: A1-26630 · 2 pcs

Available to order
3,00 EUR +VAT
74
AARDENBURG
Bolt M16x70

Item no.: A1-26631 · 2 pcs

Available to order
Price on request
75
AARDENBURG
Cylinder for mulch door

Item no.: A1-26632 · 2 pcs

Available to order
Price on request
76
AARDENBURG
Bolt M12x1,5x30

Item no.: A1-26633 · 4 pcs

Available to order
Price on request
77
AARDENBURG
Oil pipe 2

Item no.: A1-26634 · 4 pcs

Available to order
Price on request
78
AARDENBURG
T-coupling

Item no.: A1-26635 · 2 pcs

Available to order
Price on request
79
AARDENBURG
Oil pipe 3

Item no.: A1-26636 · 2 pcs

Available to order
Price on request
80
AARDENBURG
Bearing protection

Item no.: A1-26637 · 1 pcs

Available to order
Price on request
81
AARDENBURG Popular part
Bearing UCFU209

Item no.: A1-26638 · 2 pcs

Available to order
110,00 EUR +VAT
82
AARDENBURG
Anti-fouling ring

Item no.: A1-26639 · 2 pcs

Available to order
91,00 EUR +VAT
83
AARDENBURG
Rotor weldment 1.600

Item no.: A1-26640 · 1 pcs

Available to order
Price on request
83
AARDENBURG
Rotor weldment 1.800

Item no.: A1-26641 · 1 pcs

Available to order
Price on request
83
AARDENBURG
Rotor weldment 2.000

Item no.: A1-26642 · 1 pcs

Available to order
Price on request
83
AARDENBURG
Rotor weldment 2.200

Item no.: A1-26643 · 1 pcs

Available to order
Price on request
83
AARDENBURG
Rotor weldment 2.400

Item no.: A1-26644 · 1 pcs

Available to order
Price on request
84
AARDENBURG
Lock nut M16x1,5

Item no.: A1-26645 · 22 pcs

Available to order
Price on request
85
AARDENBURG Popular part
Forged hammer

Item no.: A1-26646 · 22 pcs

Available to order
Price on request
86
AARDENBURG
Bolt M16x1,5x100

Item no.: A1-26647 · 22 pcs

Available to order
Price on request
87
AARDENBURG
Bolt M8x25

Item no.: A1-26648 · 4 pcs

Available to order
3,00 EUR +VAT
88
AARDENBURG
Power lock bushing

Item no.: A1-26573 · 1 pcs

Available to order
30,00 EUR +VAT
89
AARDENBURG
Small V-belt pulley

Item no.: A1-26649 · 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
