AARDENBURG

Alta XL 2000, Semi-forestry mulcher 200 cm

Available to order 0.0 0 reviews Item no.: A01-9420

Parameters

Working width
2000 mm
Minimum HP
90 hp
Maximum HP
120 HP
Hammer PCs
20 pcs
V-Belts
5 pcs
RPM
540/1000 rpm
Width
2250 mm
Max tree diameter
6-9 cm
Weight
804 kg

Description

This type is a semi-forestry stem crusher. It is designed as an intermediate series between the traditional horizontal shaft and the forestry type of shaft crushers.The rear door can be opened together with the roller, as on the forestry type of shaft crushers. The shaft is the same as that of the traditional (Alpha M Grizzly) horizontal shaft type.It can be used either with the door closed in forward direction, pulling the shaft, or pushing it backwards with the door open. Special "serrated" design with extra strong hammer ears and special "bear foot" shaped hammers.Excellent choice for small twig/wood chipping from grass pastures, plantation farming to light forestry work.Cutting diameter of the machine is up to 6-9 cm.

The Alta XL series is available in working widths of 150, 180, 200 and 240 cm.

Standard equipment:

  • -Hydraulic side shifting, CAT II connection
  • -Free-running gearbox
  • -Rear door with hydraulic opening with two rollers and integrated rear roller
  • -reinforced iron guards
  • -Reinforced hammer rotor and bearings

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com — our colleagues reply within 2-4 hours!

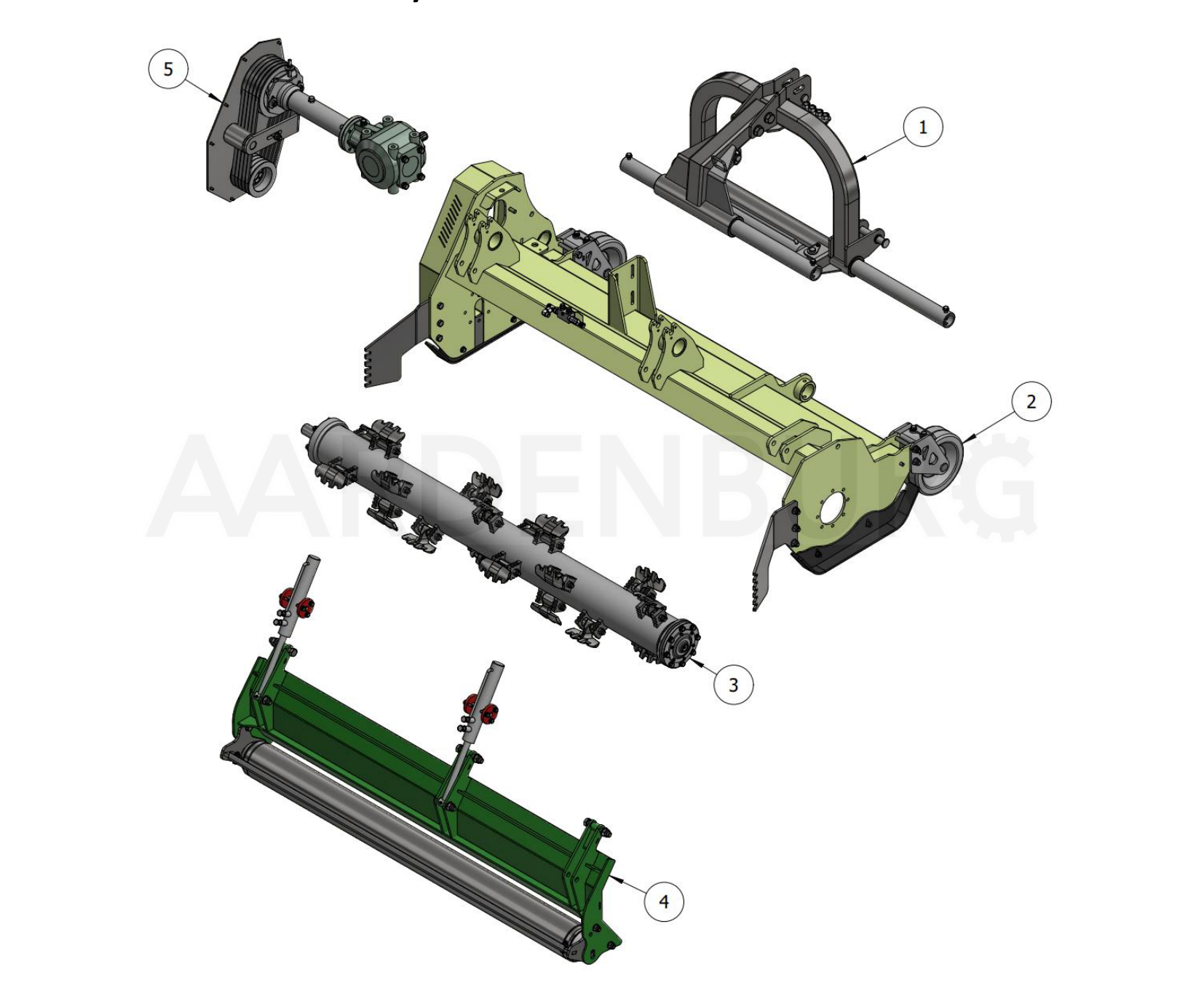

Exploded view


Diagrams

1
AARDENBURG

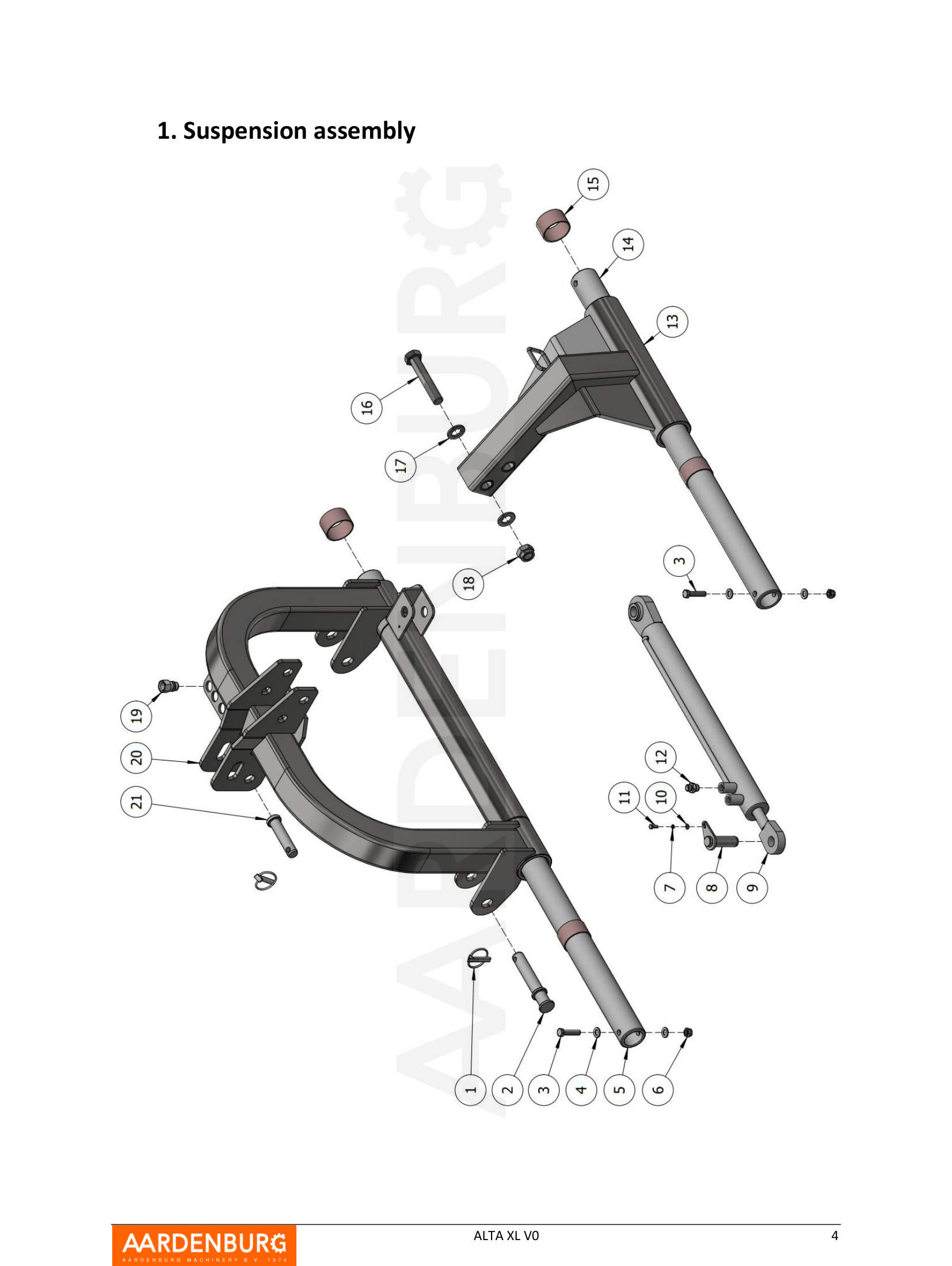

Suspension assembly

Item no.: A1-29420 · 1 pcs

Available to order
Price on request
2
AARDENBURG

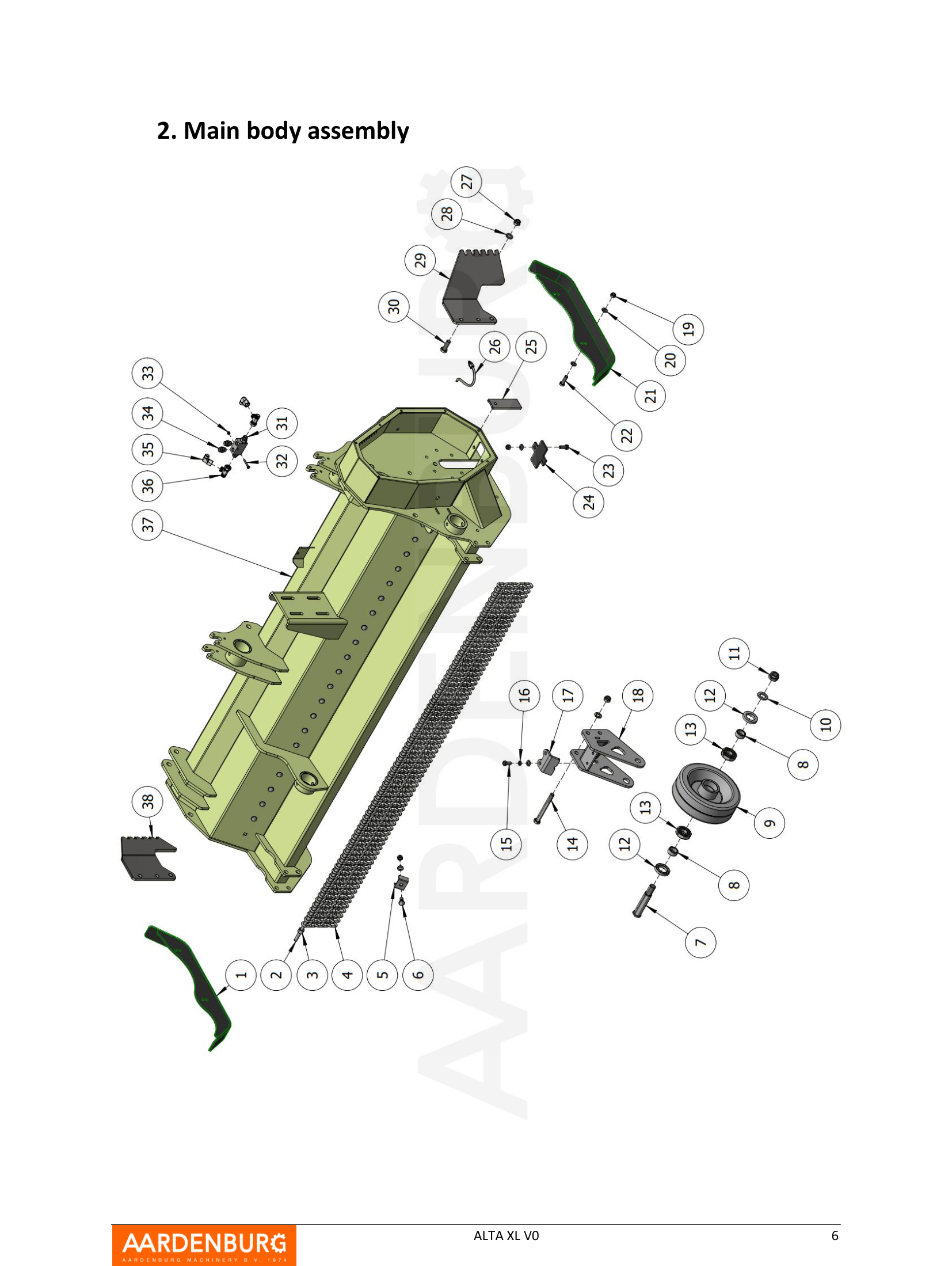

Main body assembly

Item no.: A1-29421 · 1 pcs

Available to order
Price on request
3
AARDENBURG

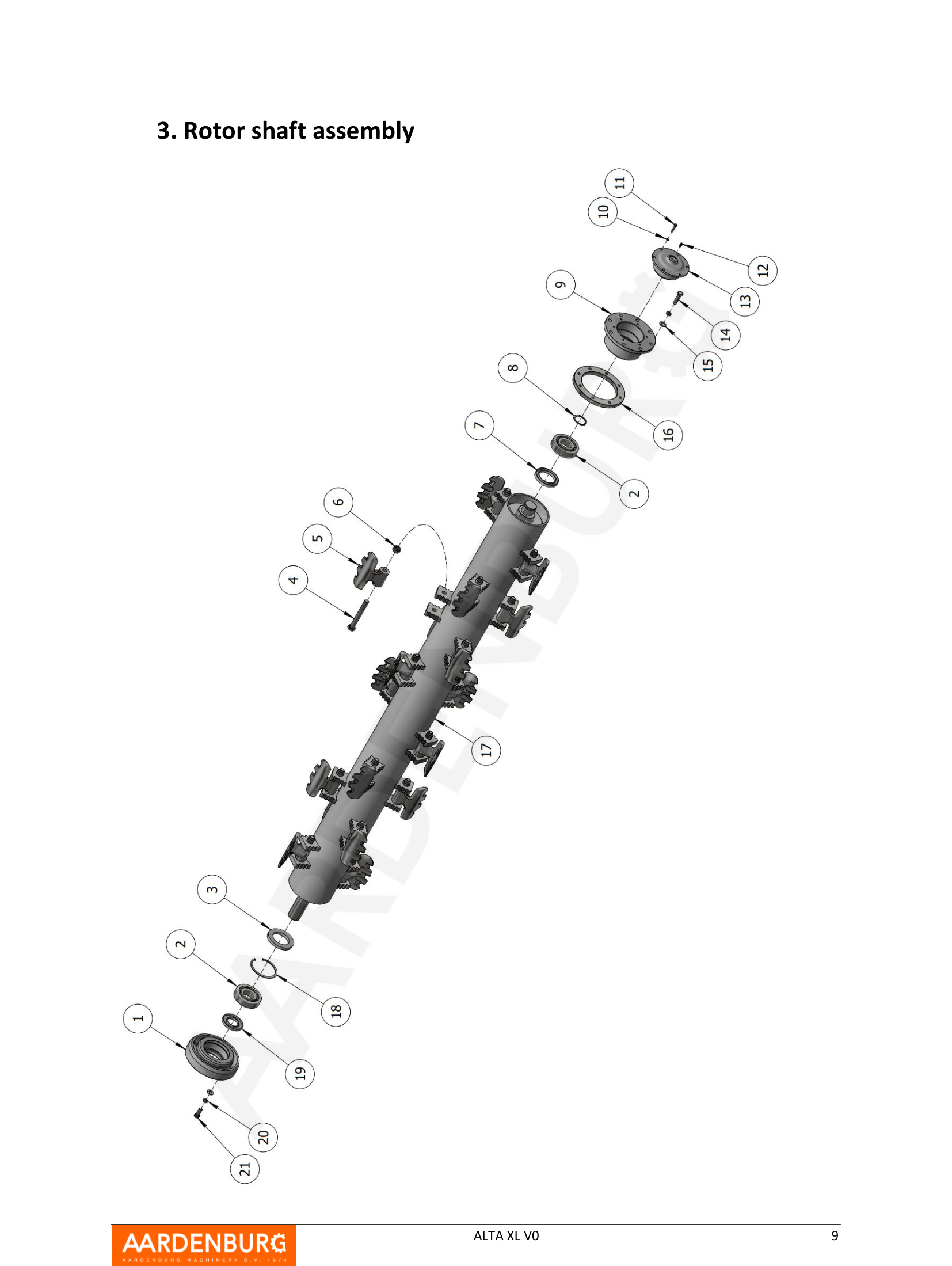

Rotor shaft assembly

Item no.: A1-29422 · 1 pcs

Available to order
Price on request
4
AARDENBURG

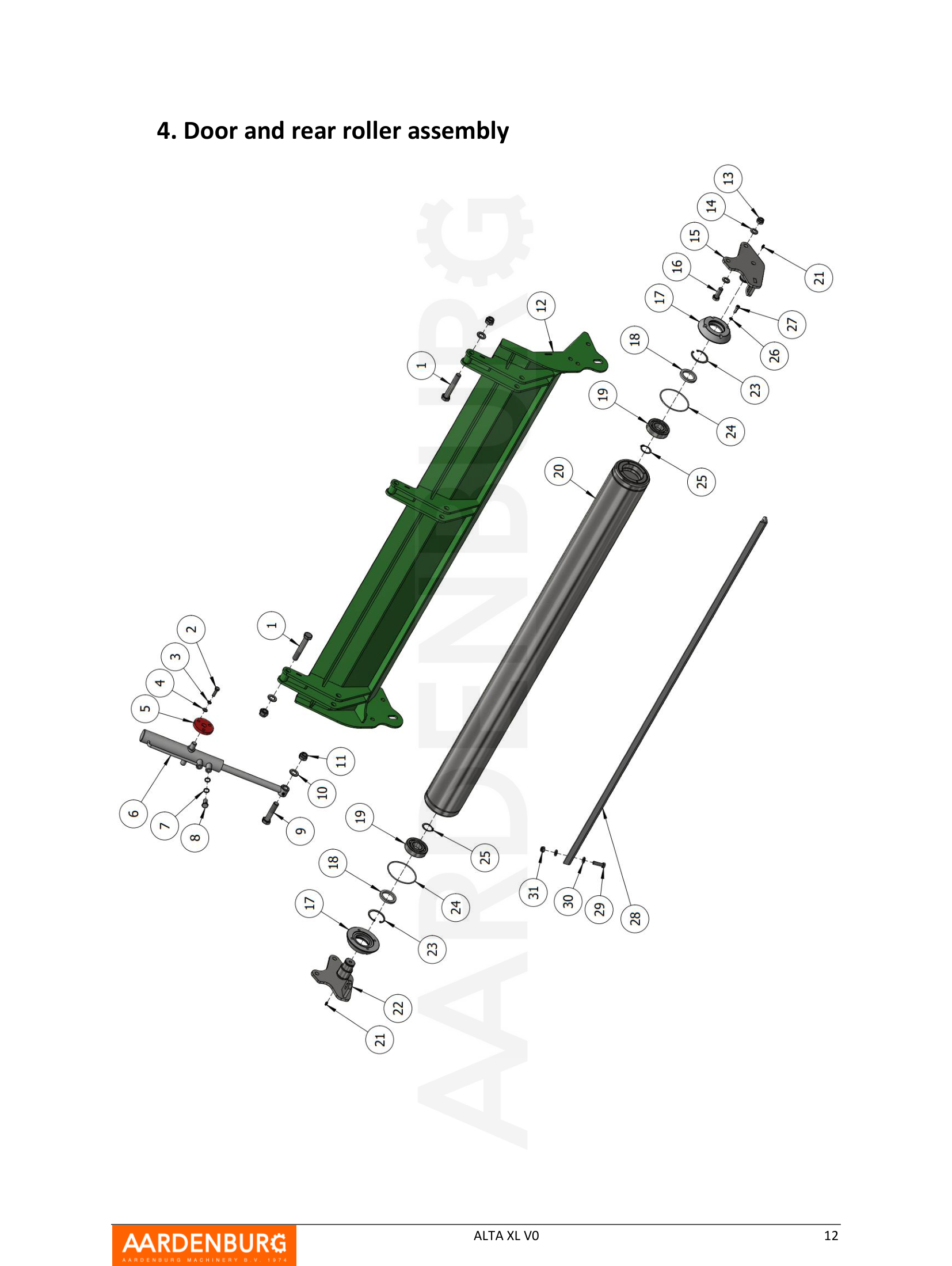

Door and rear roller assembly

Item no.: A1-29423 · 1 pcs

Available to order
Price on request
5
AARDENBURG

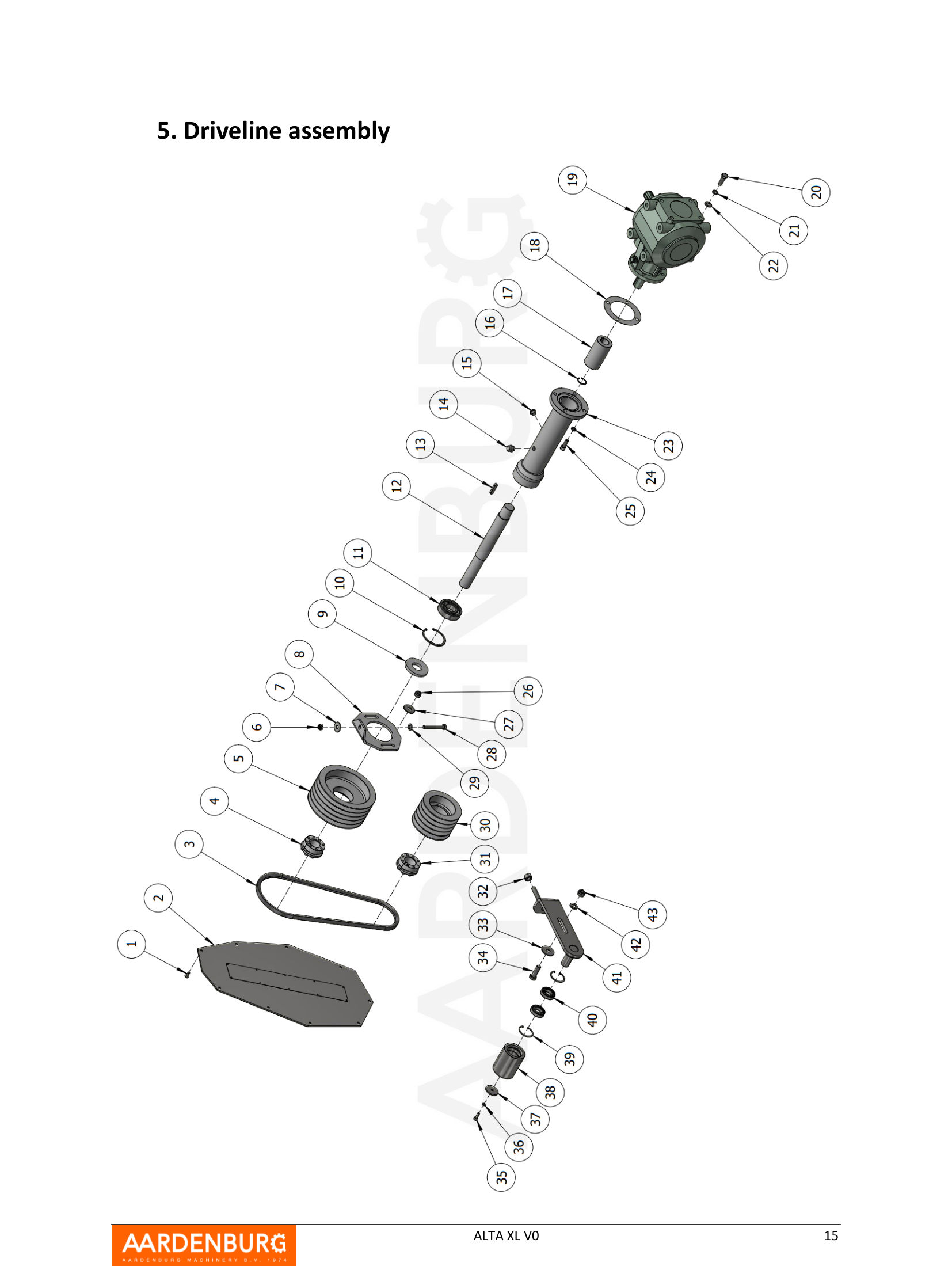

Driveline assembly

Item no.: A1-29424 · 1 pcs

Available to order
Price on request
6
AARDENBURG

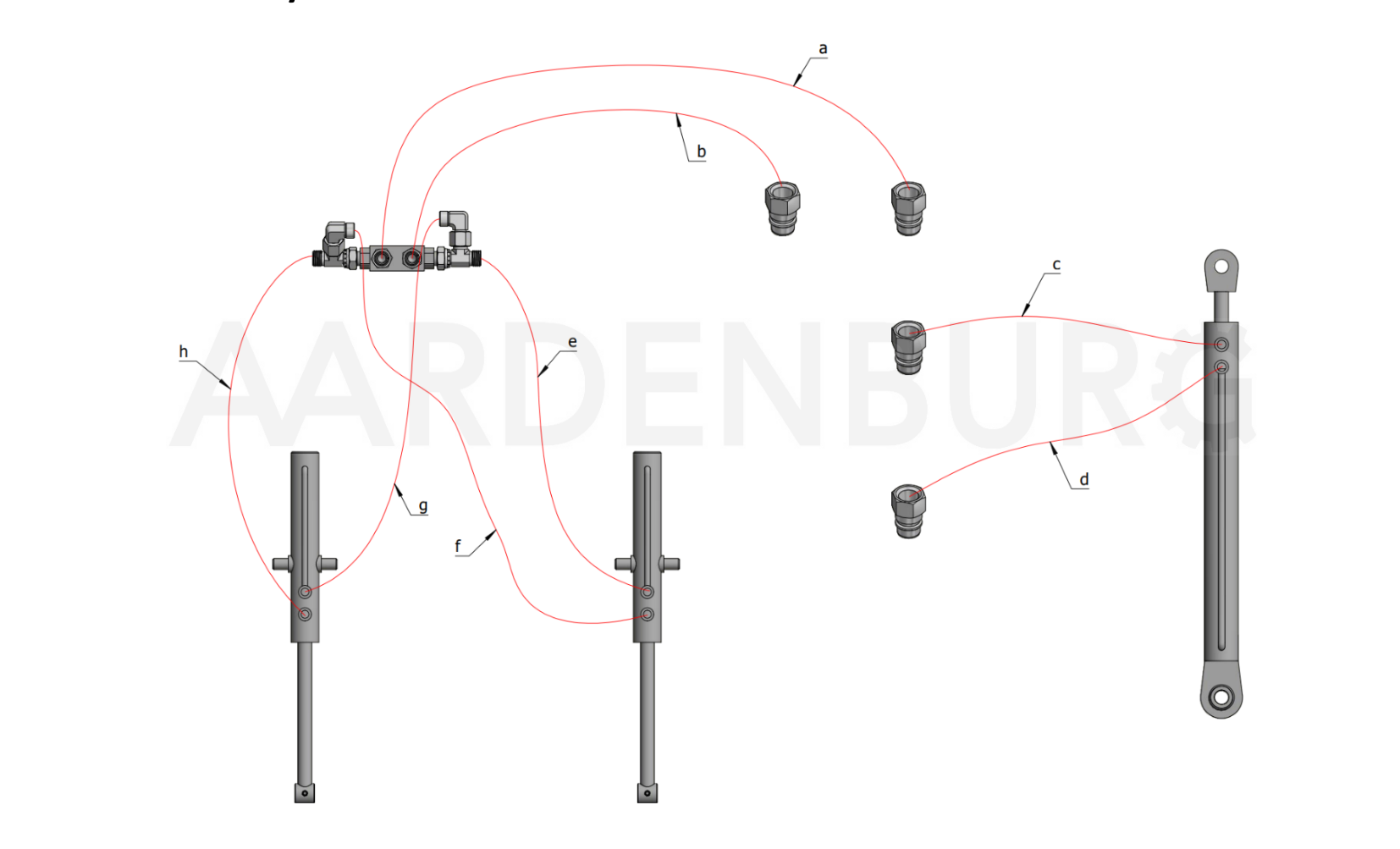

Hydraulic connections (not on drawing)

Item no.: A1-29425 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Locking pin 12

Item no.: A1-29426 · 3 pcs

Available to order
Price on request
2
AARDENBURG
Cat II lower suspension pin

Item no.: A1-29427 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Bolt M12 x 50

Item no.: A1-29428 · 4 pcs

Available to order
Price on request
4
AARDENBURG
Flat washer 12

Item no.: A1-29429 · 8 pcs

Available to order
Price on request
5
AARDENBURG
Guide shaft suspension frame (Long)

Item no.: A1-29430 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M12

Item no.: A1-28398 · 4 pcs

Available to order
Price on request
7
AARDENBURG
Spring washer 6

Item no.: A1-29431 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Hinge pin

Item no.: A1-29432 · 2 pcs

Available to order
Price on request
9
AARDENBURG
Side shift cylinder

Item no.: A1-29433 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Flat washer 6

Item no.: A1-29434 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M6 x 16

Item no.: A1-29435 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Transition joint

Item no.: A1-29436 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Suspension bridge arm

Item no.: A1-29437 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Guide shaft bridge (short)

Item no.: A1-29438 · 1 pcs

Available to order
Price on request
15
AARDENBURG Popular part
Self-lubricating bearing 65 x 70 x 40

Item no.: A1-29439 · 4 pcs

Available to order
Price on request
16
AARDENBURG
Bolt M24 x 140

Item no.: A1-29440 · 2 pcs

Available to order
Price on request
17
AARDENBURG
Flat washer 24

Item no.: A1-29441 · 4 pcs

Available to order
Price on request
18
AARDENBURG
Locking nut M24

Item no.: A1-29442 · 2 pcs

Available to order
Price on request
19
AARDENBURG
½” Female Quick-connect stop

Item no.: A1-29443 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Suspension bracket

Item no.: A1-29444 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Upper suspension pin

Item no.: A1-29445 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Skid plate right side

Item no.: A1-29446 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod 1500 Alta XL 1500

Item no.: A1-29447 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod 1800 Alta XL 1800

Item no.: A1-29448 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod 2000 Alta XL 2000

Item no.: A1-29449 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod 2200 Alta XL 2200

Item no.: A1-29450 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod 2400 Alta XL 2400

Item no.: A1-29451 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Alta XL 1500

Item no.: A1-29452 · 60 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Alta XL 1800

Item no.: A1-29453 · 72 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Alta XL 2000

Item no.: A1-29454 · 80 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Alta XL 2200

Item no.: A1-29455 · 88 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Alta XL 2400

Item no.: A1-29456 · 96 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain link 5 sections Alta XL 1500

Item no.: A1-29457 · 60 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain link 5 sections Alta XL 1800

Item no.: A1-29458 · 72 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain link 5 sections Alta XL 2000

Item no.: A1-29459 · 80 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain link 5 sections Alta XL 2200

Item no.: A1-29460 · 88 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain link 5 sections Alta XL 2400

Item no.: A1-29461 · 96 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Alta XL 1500

Item no.: A1-29462 · 16 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Alta XL 1800

Item no.: A1-29463 · 18 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Alta XL 2000

Item no.: A1-29464 · 22 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Alta XL 2200

Item no.: A1-29465 · 22 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Alta XL 2400

Item no.: A1-29466 · 26 pcs

Available to order
Price on request
6
AARDENBURG
Carriage bolt M12 x 30 Alta XL 1500

Item no.: A1-29467 · 16 pcs

Available to order
Price on request
6
AARDENBURG
Carriage bolt M12 x 30 Alta XL 1800

Item no.: A1-29468 · 18 pcs

Available to order
Price on request
6
AARDENBURG
Carriage bolt M12 x 30 Alta XL 2000

Item no.: A1-29469 · 22 pcs

Available to order
Price on request
6
AARDENBURG
Carriage bolt M12 x 30 Alta XL 2200

Item no.: A1-29470 · 22 pcs

Available to order
Price on request
6
AARDENBURG
Carriage bolt M12 x 30 Alta XL 2400

Item no.: A1-29471 · 26 pcs

Available to order
Price on request
7
AARDENBURG
Trailing wheel axle

Item no.: A1-29472 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Tailing wheel spacer

Item no.: A1-29473 · 4 pcs

Available to order
Price on request
9
AARDENBURG
Tailing wheel

Item no.: A1-29474 · 2 pcs

Available to order
Price on request
10
AARDENBURG
Flat washer 24

Item no.: A1-29475 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Lock nut M24

Item no.: A1-29476 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Oil seal FB 40 x 62 x 10

Item no.: A1-29477 · 4 pcs

Available to order
Price on request
13
AARDENBURG Popular part
Bearing 6206

Item no.: A1-29478 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M16 x 150

Item no.: A1-29479 · 4 pcs

Available to order
Price on request
15
AARDENBURG
Bolt M12 x 25

Item no.: A1-29480 · 4 pcs

Available to order
Price on request
16
AARDENBURG
Spring washer 12

Item no.: A1-28419 · 4 pcs

Available to order
Price on request
17
AARDENBURG
Scraper trailing wheel

Item no.: A1-29481 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Trailing wheel frame

Item no.: A1-29482 · 2 pcs

Available to order
Price on request
19
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 28 pcs

Available to order
Price on request
20
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 36 pcs

Available to order
Price on request
21
AARDENBURG
Skid plate left side

Item no.: A1-29483 · 1 pcs

Available to order
Price on request
22
AARDENBURG
Bolt M12 x 40

Item no.: A1-28271 · 4 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M12 x 30

Item no.: A1-28420 · 2 pcs

Available to order
Price on request
24
AARDENBURG
Locking plate bottom

Item no.: A1-29484 · 1 pcs

Available to order
Price on request
25
AARDENBURG
Locking plate side wall

Item no.: A1-29485 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Grease hose

Item no.: A1-29486 · 1 pcs

Available to order
Price on request
27
AARDENBURG
Lock nut M16

Item no.: A1-28430 · 10 pcs

Available to order
Price on request
28
AARDENBURG
Flat washer 16

Item no.: A1-28429 · 10 pcs

Available to order
Price on request
29
AARDENBURG
Funnel plate left side

Item no.: A1-29487 · 1 pcs

Available to order
Price on request
30
AARDENBURG
Bolt M16 x 45

Item no.: A1-28261 · 6 pcs

Available to order
Price on request
31
AARDENBURG
Mulching door valve

Item no.: A1-29488 · 1 pcs

Available to order
Price on request
32
AARDENBURG
Bolt M6 x 45

Item no.: A1-29489 · 1 pcs

Available to order
Price on request
33
AARDENBURG
Lock nut M6

Item no.: A1-29490 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Transition joint

Item no.: A1-29491 · 2 pcs

Available to order
Price on request
35
AARDENBURG
Transition joint

Item no.: A1-29492 · 2 pcs

Available to order
Price on request
36
AARDENBURG
T-transition joint

Item no.: A1-29493 · 2 pcs

Available to order
Price on request
37
AARDENBURG
Main housing 1500 Alta XL 1500

Item no.: A1-29494 · 1 pcs

Available to order
Price on request
37
AARDENBURG
Main housing 1800 Alta XL 1800

Item no.: A1-29495 · 1 pcs

Available to order
Price on request
37
AARDENBURG
Main housing 2000 Alta XL 2000

Item no.: A1-29496 · 1 pcs

Available to order
Price on request
37
AARDENBURG
Main housing 2200 Alta XL 2200

Item no.: A1-29497 · 1 pcs

Available to order
Price on request
37
AARDENBURG
Main housing 2400 Alta XL 2400

Item no.: A1-29498 · 1 pcs

Available to order
Price on request
38
AARDENBURG
Funnel plate right side

Item no.: A1-29499 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Right bearing seat

Item no.: A1-29500 · 1 pcs

Available to order
Price on request
2
AARDENBURG Popular part
Bearing 1309

Item no.: A1-25244 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Oil seal FB 65 x 100 x 10

Item no.: A1-29501 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M16 x 130 Alta XL 1500

Item no.: A1-29502 · 14 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M16 x 130 Alta XL 1800

Item no.: A1-29503 · 16 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M16 x 130 Alta XL 2000

Item no.: A1-29504 · 20 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M16 x 130 Alta XL 2200

Item no.: A1-29505 · 20 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M16 x 130 Alta XL 2400

Item no.: A1-29506 · 24 pcs

Available to order
Price on request
5
AARDENBURG
Grizzly hammer Alta XL 1500

Item no.: A1-29507 · 14 pcs

Available to order
Price on request
5
AARDENBURG Popular part
Forged hammer

Item no.: A1-26646 · 16 pcs

Available to order
Price on request
5
AARDENBURG Popular part
Forged hammer

Item no.: A1-26646 · 20 pcs

Available to order
Price on request
5
AARDENBURG Popular part
Forged hammer

Item no.: A1-26646 · 20 pcs

Available to order
Price on request
5
AARDENBURG Popular part
Forged hammer

Item no.: A1-26646 · 24 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M16 Alta XL 1500

Item no.: A1-29512 · 20 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M16 Alta XL 1800

Item no.: A1-29513 · 14 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M16 Alta XL 2000

Item no.: A1-29514 · 16 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M16 Alta XL 2200

Item no.: A1-29515 · 20 pcs

Available to order
Price on request
6
AARDENBURG
Locking nut M16 Alta XL 2400

Item no.: A1-29516 · 24 pcs

Available to order
Price on request
7
AARDENBURG
Oil seal FB 65 x 90 x 10

Item no.: A1-29517 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Circlip outer 45

Item no.: A1-25242 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Bearing seat

Item no.: A1-29518 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Spring washer 6

Item no.: A1-29519 · 6 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M6 x 30

Item no.: A1-29520 · 6 pcs

Available to order
Price on request
12
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Bearing cover

Item no.: A1-29521 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M12 x 45

Item no.: A1-28544 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Flat washer 12

Item no.: A1-29522 · 15 pcs

Available to order
Price on request
16
AARDENBURG
Bearing counter ring

Item no.: A1-29523 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Rotor shaft 1500 Alta XL 1500

Item no.: A1-29524 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Rotor shaft 1800 Alta XL 1800

Item no.: A1-29525 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Rotor shaft 2000 Alta XL 2000

Item no.: A1-29526 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Rotor shaft 2200 Alta XL 2200

Item no.: A1-29527 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Rotor shaft 2400 Alta XL 2400

Item no.: A1-29528 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Circlip outer 100

Item no.: A1-29529 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Oil seal FB 45 x 80 x 8

Item no.: A1-29530 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Spring washer 12

Item no.: A1-28419 · 15 pcs

Available to order
Price on request
21
AARDENBURG
Bolt M12 x 30

Item no.: A1-28420 · 7 pcs

Available to order
Price on request
1
AARDENBURG
Bolt M20 x 120

Item no.: A1-29531 · 3 pcs

Available to order
Price on request
2
AARDENBURG
Bolt M10 x 35

Item no.: A1-28556 · 12 pcs

Available to order
Price on request
3
AARDENBURG
Spring washer 10

Item no.: A1-28396 · 12 pcs

Available to order
Price on request
4
AARDENBURG
Flat washer 10

Item no.: A1-29532 · 12 pcs

Available to order
Price on request
5
AARDENBURG
Shim ring

Item no.: A1-29533 · 4 pcs

Available to order
Price on request
6
AARDENBURG
Mulch door cylinder

Item no.: A1-29534 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Combi washer G3/8

Item no.: A1-29535 · 8 pcs

Available to order
Price on request
8
AARDENBURG
G3/8 banjo bolt

Item no.: A1-29536 · 4 pcs

Available to order
Price on request
9
AARDENBURG
Bolt M20 x 90

Item no.: A1-29537 · 2 pcs

Available to order
Price on request
10
AARDENBURG
Flat washer 20

Item no.: A1-28348 · 5 pcs

Available to order
Price on request
11
AARDENBURG
Lock nut M20

Item no.: A1-28349 · 5 pcs

Available to order
Price on request
12
AARDENBURG
Mulch door 1500 Alta XL 1500

Item no.: A1-29538 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Mulch door 1800 Alta XL 1800

Item no.: A1-29539 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Mulch door 2000 Alta XL 2000

Item no.: A1-29540 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Mulch door 2200 Alta XL 2200

Item no.: A1-29541 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Mulch door 2400 Alta XL 2400

Item no.: A1-29542 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Lock nut M16

Item no.: A1-28430 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Flat washer 16

Item no.: A1-28429 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Roller bracket right side

Item no.: A1-29543 · 1 pcs

Available to order
Price on request
16
AARDENBURG
Bolt M16 x 45

Item no.: A1-29544 · 4 pcs

Available to order
Price on request
17
AARDENBURG
Drum cover

Item no.: A1-29545 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Oil seal FB 50 x 68 x 8

Item no.: A1-28427 · 2 pcs

Available to order
Price on request
19
AARDENBURG Popular part
Bearing 6308

Item no.: A1-28424 · 2 pcs

Available to order
Price on request
20
AARDENBURG
Trailing roller 1500 Alta XL 1500

Item no.: A1-29546 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Trailing roller 1800 Alta XL 1800

Item no.: A1-29547 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Trailing roller 2000 Alta XL 2000

Item no.: A1-29548 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Trailing roller 2200 Alta XL 2200

Item no.: A1-29549 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Trailing roller 2400 Alta XL 2400

Item no.: A1-29550 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 2 pcs

Available to order
Price on request
22
AARDENBURG
Roller bracket left side

Item no.: A1-29551 · 1 pcs

Available to order
Price on request
23
AARDENBURG
Circlip outer 68

Item no.: A1-29552 · 2 pcs

Available to order
Price on request
24
AARDENBURG
O-ring 120 x 3.55

Item no.: A1-29553 · 2 pcs

Available to order
Price on request
25
AARDENBURG
Cirlip inner 40

Item no.: A1-29554 · 2 pcs

Available to order
Price on request
26
AARDENBURG
Spring washer 8

Item no.: A1-28433 · 8 pcs

Available to order
Price on request
27
AARDENBURG
Bolt M8 x 25

Item no.: A1-29555 · 8 pcs

Available to order
Price on request
28
AARDENBURG
Scraper bar 1500 Alta XL 1500

Item no.: A1-29556 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Scraper bar 1800 Alta XL 1800

Item no.: A1-29557 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Scraper bar 2000 Alta XL 2000

Item no.: A1-29558 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Scraper bar 2200 Alta XL 2200

Item no.: A1-29559 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Scraper bar 2400 Alta XL 2400

Item no.: A1-29560 · 1 pcs

Available to order
Price on request
29
AARDENBURG
Bolt M12 x 40

Item no.: A1-28271 · 2 pcs

Available to order
Price on request
30
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 4 pcs

Available to order
Price on request
31
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
1
AARDENBURG
Bolt M8 x 20

Item no.: A1-28203 · 9 pcs

Available to order
Price on request
2
AARDENBURG
Cover plate

Item no.: A1-29561 · 1 pcs

Available to order
Price on request
3 V-belt SPB1321
AARDENBURG Popular part
V-belt SPB1321

Item no.: A1-29219 · 5 pcs

Available to order
26,62 EUR +VAT
4
AARDENBURG
Keyless bushing 40 x 80

Item no.: A1-29563 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Pulley driveline

Item no.: A1-29564 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Enlarged flat washer 12

Item no.: A1-29565 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Tensioning plate

Item no.: A1-29566 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Oil seal FB 40 x 90 x 10

Item no.: A1-29567 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Circlip inner 90

Item no.: A1-29568 · 1 pcs

Available to order
5,85 EUR +VAT
11
AARDENBURG Popular part
Bearing 6308-2Z

Item no.: A1-29569 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Drive shaft

Item no.: A1-29570 · 1 pcs

Available to order
Price on request
13 Key A12 x 50
AARDENBURG
Key A12 x 50

Item no.: A1-29571 · 1 pcs

Available to order
Price on request
14
AARDENBURG
ZG3/8 breather plug

Item no.: A1-29572 · 1 pcs

Available to order
Price on request
15
AARDENBURG
ZG3/8 plug

Item no.: A1-29573 · 1 pcs

Available to order
Price on request
16
AARDENBURG
Circlip outer 34

Item no.: A1-29574 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Connecting sleeve

Item no.: A1-29575 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Paper gasket

Item no.: A1-29576 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Gearbox

Item no.: A1-29577 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Bolt M14 x 40

Item no.: A1-28539 · 4 pcs

Available to order
Price on request
21
AARDENBURG
Spring washer 14

Item no.: A1-29578 · 4 pcs

Available to order
Price on request
22
AARDENBURG
Flat washer 14

Item no.: A1-29579 · 4 pcs

Available to order
Price on request
23
AARDENBURG
Drive shaft tube

Item no.: A1-29580 · 1 pcs

Available to order
Price on request
24
AARDENBURG
Spring washer 12

Item no.: A1-28419 · 4 pcs

Available to order
Price on request
25
AARDENBURG
Bolt M12 x 35

Item no.: A1-28176 · 4 pcs

Available to order
Price on request
26
AARDENBURG
Lock nut M14

Item no.: A1-29581 · 2 pcs

Available to order
Price on request
27
AARDENBURG
Fender washer 14

Item no.: A1-28653 · 2 pcs

Available to order
Price on request
28
AARDENBURG
Bolt M12 x 90

Item no.: A1-29582 · 1 pcs

Available to order
Price on request
29
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 1 pcs

Available to order
Price on request
30
AARDENBURG
Pulley rotor

Item no.: A1-29583 · 1 pcs

Available to order
Price on request
31
AARDENBURG
Keyless bushing 45 x 80

Item no.: A1-29584 · 1 pcs

Available to order
Price on request
32
AARDENBURG
Nut M16

Item no.: A1-28319 · 1 pcs

Available to order
Price on request
33
AARDENBURG
Fender washer 16

Item no.: A1-29585 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Bolt M16 x 50

Item no.: A1-29586 · 1 pcs

Available to order
Price on request
35
AARDENBURG
Bolt M8 x 25

Item no.: A1-29555 · 1 pcs

Available to order
Price on request
36
AARDENBURG
Spring washer 8

Item no.: A1-28433 · 1 pcs

Available to order
Price on request
37
AARDENBURG
Shaft end washer

Item no.: A1-29587 · 1 pcs

Available to order
Price on request
38
AARDENBURG
Tensioner pulley

Item no.: A1-29588 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Circlip inner 55

Item no.: A1-29589 · 2 pcs

Available to order
Price on request
40 Bearing 6006-2RS
AARDENBURG Popular part
Bearing 6006-2RS

Item no.: A1-29590 · 2 pcs

Available to order
Price on request
41
AARDENBURG
Tensioner adjustment bracket

Item no.: A1-29591 · 1 pcs

Available to order
Price on request
42
AARDENBURG
Flat washer 16

Item no.: A1-28429 · 1 pcs

Available to order
Price on request
43
AARDENBURG
Locking nut M16

Item no.: A1-29592 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 1

Item no.: A1-29593 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 2

Item no.: A1-29594 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 3

Item no.: A1-29595 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 4

Item no.: A1-29596 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 5

Item no.: A1-29597 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 6

Item no.: A1-29598 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 7

Item no.: A1-29599 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 8

Item no.: A1-29600 · 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
