Kappa XL 2300, 2.3 m stone burrier with mesh roller

Available to order 0.0 0 reviews Item no.: A01-2063

Parameters

Working width
2300 mm
Weight
590 kg
Minimum HP
80 hp
Number of rotavator blade
66 pcs
Height
970 mm
Working depth
180 mm
Sideshift movement to the left
1204 mm
Sideshift movement to the right
1142 mm
Rotor Diameter
89 mm
Total diameter
495 mm
Drivegear
Gear system
Length
1130 mm
Width
2560 mm

Description

Order now and get a gratis cardan shaft!


Adjustable and consistent. For the semi-professionals who demands the highest soil consistency. Highly adjustable ploughing, crumbling action and stone burying make for to most ideal planting conditions. Best suited for cultivated sandy, clay-like and off course rocky soils.

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com โ€” our colleagues reply within 2-4 hours!

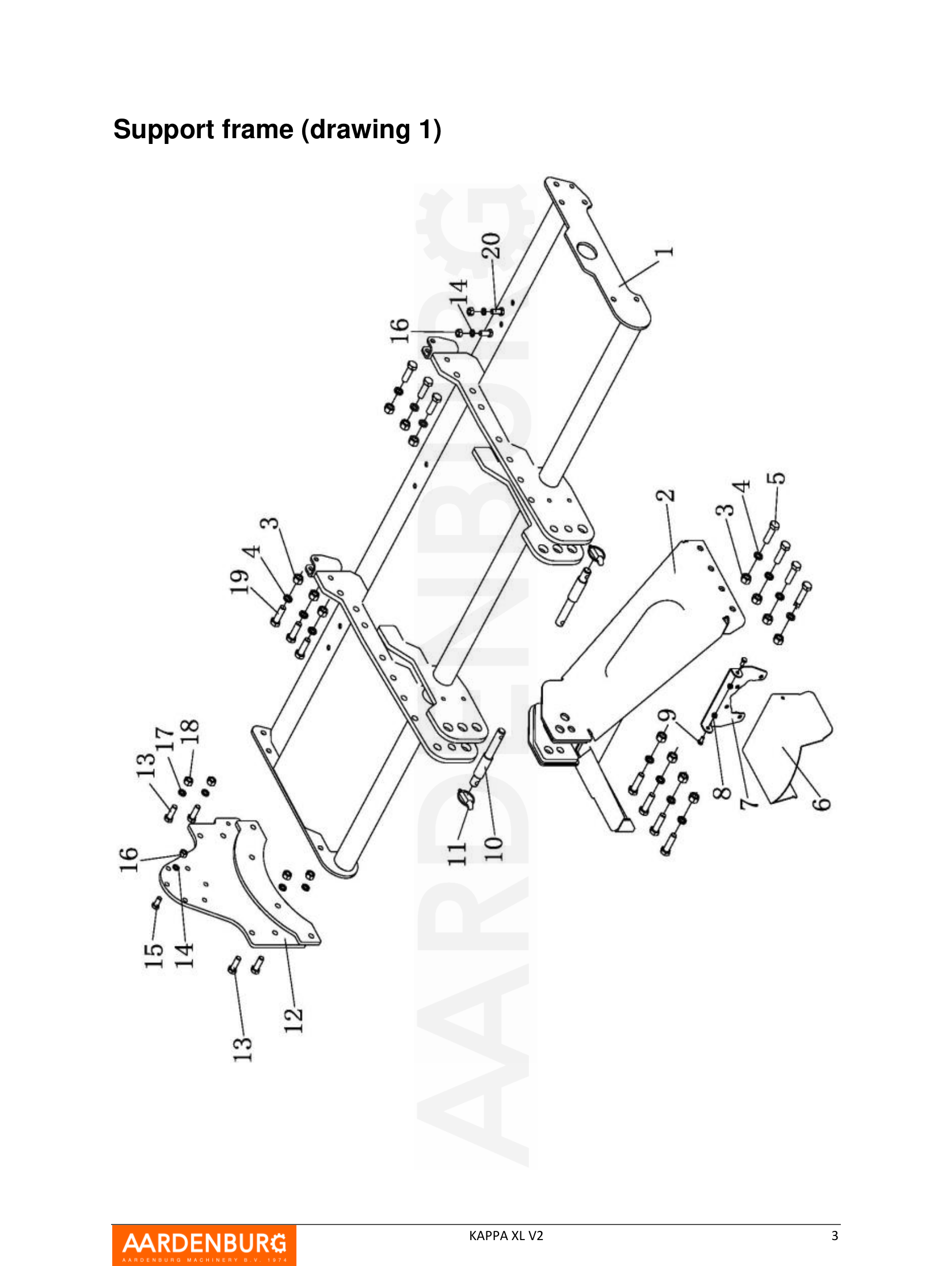

Exploded view


Diagrams

1
AARDENBURG
Support frame

Item no.: A1-24412 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Suspension frame

Item no.: A1-24413 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Nut M16

Item no.: A1-24414 ยท 14 pcs

Available to order
Price on request
4
AARDENBURG
Spring washer M16

Item no.: A1-24415 ยท 14 pcs

Available to order
Price on request
5
AARDENBURG
Full threaded bolt M16x55

Item no.: A1-24416 ยท 8 pcs

Available to order
Price on request
6
AARDENBURG
PTO cover (2)

Item no.: A1-24417 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
PTO (1)

Item no.: A1-24418 ยท 1 pcs

Available to order
Price on request
8
AARDENBURG
Self-locking nut M8

Item no.: A1-24419 ยท 2 pcs

Available to order
Price on request
9
AARDENBURG
Full threaded bolt M8x16

Item no.: A1-24420 ยท 2 pcs

Available to order
Price on request
10
AARDENBURG
Lower suspension pin

Item no.: A1-24421 ยท 2 pcs

Available to order
Price on request
11
AARDENBURG
Linch pin

Item no.: A1-24422 ยท 2 pcs

Available to order
Price on request
12
AARDENBURG
Upper gear support

Item no.: A1-24423 ยท 1 pcs

Available to order
Price on request
13 Full screw bolt M14x40
AARDENBURG
Full screw bolt M14x40

Item no.: A1-27676 ยท 9 pcs

Central warehouse stock
Price on request
14
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 20 pcs

Available to order
Price on request
15
AARDENBURG
Full threaded bolt M12x35

Item no.: A1-24426 ยท 4 pcs

Available to order
Price on request
16
AARDENBURG
Nut M12

Item no.: A1-24427 ยท 10 pcs

Available to order
Price on request
17
AARDENBURG
Spring washer M14

Item no.: A1-24428 ยท 9 pcs

Available to order
Price on request
18
AARDENBURG
Nut M14

Item no.: A1-24429 ยท 9 pcs

Available to order
Price on request
19
AARDENBURG
Full threaded bolt M16x50

Item no.: A1-24430 ยท 6 pcs

Available to order
Price on request
20
AARDENBURG
Full threaded bolt M12x30

Item no.: A1-24431 ยท 6 pcs

Available to order
Price on request

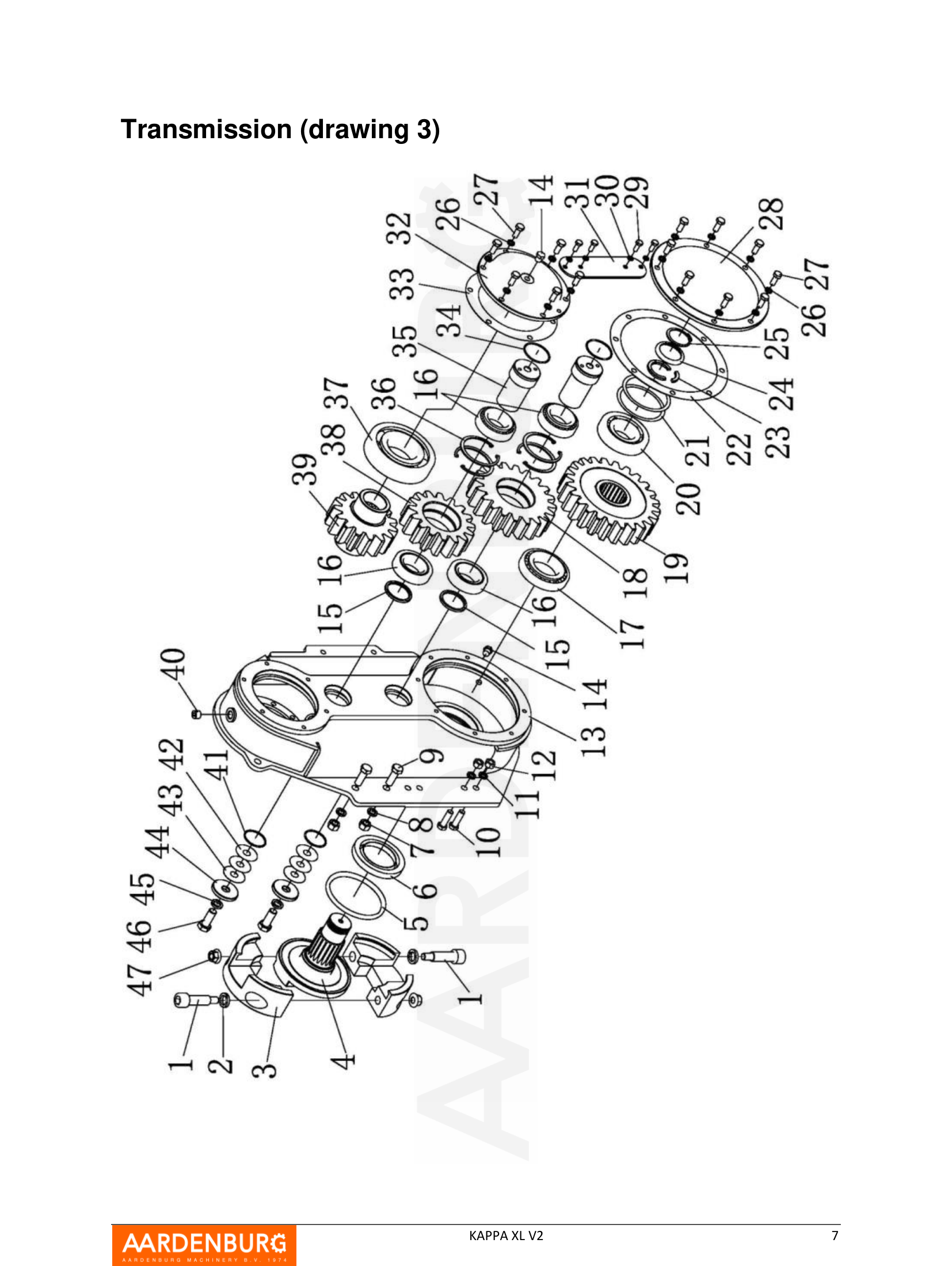

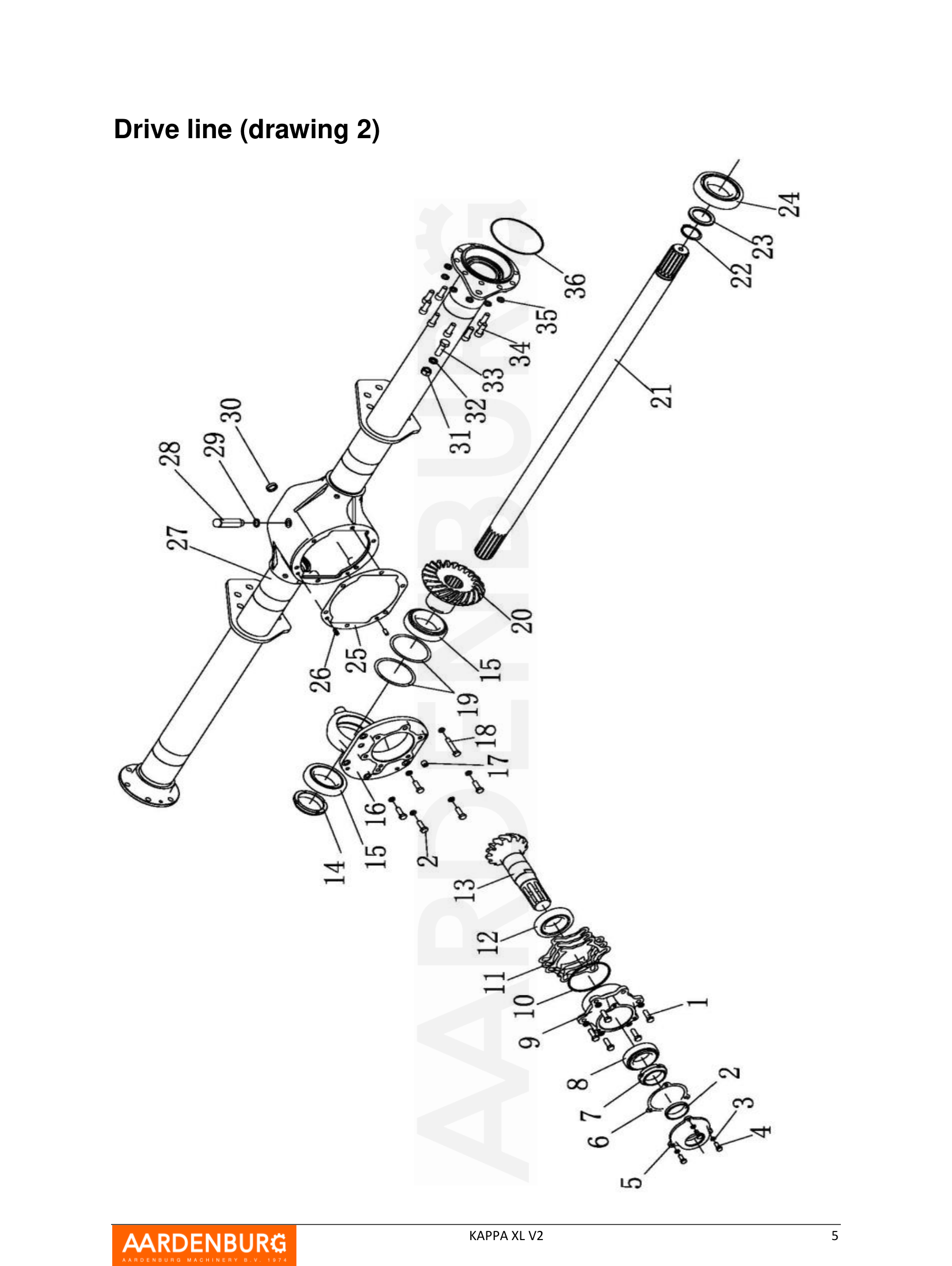

1
AARDENBURG
Full treaded bolt M10x30

Item no.: A1-24432 ยท 10 pcs

Available to order
Price on request
2
AARDENBURG
Oil Seal FB 50x70x8

Item no.: A1-24433 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Spring washer M8

Item no.: A1-24434 ยท 3 pcs

Available to order
Price on request
4
AARDENBURG
Full treaded bolt M8x20

Item no.: A1-24435 ยท 3 pcs

Available to order
Price on request
5
AARDENBURG
Oil Seal input shaft cover

Item no.: A1-24436 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG
Gasket triangular-shape

Item no.: A1-24437 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
Locknut M55X1.5

Item no.: A1-24438 ยท 1 pcs

Available to order
Price on request
8
AARDENBURG Popular part
Tapered roller bearing 32011

Item no.: A1-24439 ยท 1 pcs

Available to order
Price on request
9
AARDENBURG
Input shaft cover

Item no.: A1-24440 ยท 1 pcs

Available to order
Price on request
10
AARDENBURG
O-ring 106x3.55

Item no.: A1-24441 ยท 1 pcs

Available to order
Price on request
11
AARDENBURG
Shim hexagonal

Item no.: A1-24442 ยท 9 pcs

Available to order
Price on request
12
AARDENBURG Popular part
Tapered roller bearing 32011

Item no.: A1-24443 ยท 1 pcs

Available to order
Price on request
13
AARDENBURG
Input shaft 8M13Z

Item no.: A1-24444 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Locknut M70X1.5

Item no.: A1-24445 ยท 1 pcs

Available to order
Price on request
15
AARDENBURG Popular part
Tapered roller bearing 32014

Item no.: A1-24446 ยท 2 pcs

Available to order
Price on request
16
AARDENBURG
Gearbox cover

Item no.: A1-24447 ยท 1 pcs

Available to order
Price on request
17
AARDENBURG
Gearbox drain plug ยผ

Item no.: A1-24448 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Half threaded bolt M10x60

Item no.: A1-24449 ยท 1 pcs

Available to order
Price on request
19
AARDENBURG
Bevel Gear Adjustment shim

Item no.: A1-24450 ยท 2 pcs

Available to order
Price on request
20
AARDENBURG
Crown gear output 8M21Z

Item no.: A1-24451 ยท 1 pcs

Available to order
Price on request
21
AARDENBURG
Drive shaft

Item no.: A1-24452 ยท 1 pcs

Available to order
Price on request
22
AARDENBURG
Shaft retaining ring

Item no.: A1-24453 ยท 1 pcs

Available to order
Price on request
23
AARDENBURG
Restrictor ring

Item no.: A1-24454 ยท 1 pcs

Available to order
Price on request
24
AARDENBURG Popular part
Deep groove ball bearing 6314

Item no.: A1-24455 ยท 1 pcs

Available to order
Price on request
25
AARDENBURG
Gearbox cover paper gasket

Item no.: A1-24456 ยท 1 pcs

Available to order
Price on request
26
AARDENBURG
Dowel pin

Item no.: A1-24457 ยท 2 pcs

Available to order
Price on request
27
AARDENBURG
Drive shaft tube

Item no.: A1-24458 ยท 1 pcs

Available to order
Price on request
28
AARDENBURG
Oil filler plug ๏ผˆ raised type ๏ผ‰

Item no.: A1-24459 ยท 1 pcs

Available to order
Price on request
29
AARDENBURG
Combination washer 17.28X23.80X2.03

Item no.: A1-24460 ยท 1 pcs

Available to order
Price on request
30
AARDENBURG
Plug ฯ†26x7

Item no.: A1-24461 ยท 1 pcs

Available to order
Price on request
31
AARDENBURG
Nut M14

Item no.: A1-24429 ยท 9 pcs

Available to order
Price on request
32
AARDENBURG
Spring washer M14

Item no.: A1-24428 ยท 9 pcs

Available to order
Price on request
33
AARDENBURG
Full treaded bolt M14x30

Item no.: A1-24462 ยท 9 pcs

Available to order
Price on request
34
AARDENBURG
Allen head bolt M12x30

Item no.: A1-24463 ยท 10 pcs

Available to order
Price on request
35
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 10 pcs

Available to order
Price on request
36
AARDENBURG
O-ring 136x2.65

Item no.: A1-24464 ยท 1 pcs

Available to order
Price on request
1
AARDENBURG
Allen bolt M20X80 special

Item no.: A1-24465 ยท 2 pcs

Available to order
Price on request
2
AARDENBURG
Spring washer M20

Item no.: A1-24466 ยท 2 pcs

Available to order
Price on request
3
AARDENBURG
Lower gear adjuster block

Item no.: A1-24467 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Lower gear shaft

Item no.: A1-24468 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Dust seal

Item no.: A1-24469 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG
Combined seal T15B049

Item no.: A1-24470 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
Nut M14

Item no.: A1-24429 ยท 4 pcs

Available to order
Price on request
8
AARDENBURG
Spring washer M14

Item no.: A1-24428 ยท 4 pcs

Available to order
Price on request
9 Full screw bolt M14x40
AARDENBURG
Full screw bolt M14x40

Item no.: A1-27676 ยท 4 pcs

Central warehouse stock
Price on request
10
AARDENBURG
Full treaded bolt M12x40

Item no.: A1-24472 ยท 4 pcs

Available to order
Price on request
11
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 20 pcs

Available to order
Price on request
12
AARDENBURG
Nut M12

Item no.: A1-24427 ยท 10 pcs

Available to order
Price on request
13
AARDENBURG
Gearbox cover (machined)

Item no.: A1-24473 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Drain plug

Item no.: A1-24474 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Restrictor ring

Item no.: A1-24475 ยท 2 pcs

Available to order
Price on request
16
AARDENBURG Popular part
Tapered roller bearing 33110

Item no.: A1-24476 ยท 4 pcs

Available to order
Price on request
17
AARDENBURG Popular part
Tapered roller bearing 30212

Item no.: A1-24477 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Pinion (gear wheel) Z20M8.5

Item no.: A1-24478 ยท 1 pcs

Available to order
Price on request
19
AARDENBURG
Pinion (gear wheel) Z24M8.5

Item no.: A1-24479 ยท 1 pcs

Available to order
Price on request
20
AARDENBURG Popular part
Tapered roller bearing 30310

Item no.: A1-24480 ยท 1 pcs

Available to order
Price on request
21
AARDENBURG
Lower Bearing Shim

Item no.: A1-24481 ยท 2 pcs

Available to order
Price on request
22
AARDENBURG
Gasket 2

Item no.: A1-24482 ยท 1 pcs

Available to order
Price on request
23 Pinion half-moon piece
AARDENBURG
Pinion half-moon piece

Item no.: A1-24483 ยท 4 pcs

Available to order
Price on request
24
AARDENBURG
Side box seal

Item no.: A1-24484 ยท 1 pcs

Available to order
Price on request
25
AARDENBURG
Shaft retaining ring 50

Item no.: A1-24485 ยท 1 pcs

Available to order
Price on request
26
AARDENBURG
Spring washer M10

Item no.: A1-24486 ยท 14 pcs

Available to order
Price on request
27
AARDENBURG
Full treaded bolt M10x25

Item no.: A1-24487 ยท 14 pcs

Available to order
Price on request
28
AARDENBURG
Lower gear cover

Item no.: A1-24488 ยท 1 pcs

Available to order
Price on request
29
AARDENBURG
Full treaded bolt M8x20

Item no.: A1-24435 ยท 4 pcs

Available to order
Price on request
30
AARDENBURG
Spring washer M8

Item no.: A1-24434 ยท 4 pcs

Available to order
Price on request
31
AARDENBURG
Plate

Item no.: A1-24489 ยท 1 pcs

Available to order
Price on request
32
AARDENBURG
Upper gear cover

Item no.: A1-24490 ยท 1 pcs

Available to order
Price on request
33
AARDENBURG
Gasket 1

Item no.: A1-24491 ยท 1 pcs

Available to order
Price on request
34
AARDENBURG
O-ring 54.5x2.65

Item no.: A1-24492 ยท 2 pcs

Available to order
Price on request
35
AARDENBURG
intermediate shaft

Item no.: A1-24493 ยท 2 pcs

Available to order
Price on request
36
AARDENBURG
Hole retaining ring 85

Item no.: A1-24494 ยท 4 pcs

Available to order
Price on request
37
AARDENBURG Popular part
Deep groove ball bearing 6214

Item no.: A1-24495 ยท 1 pcs

Available to order
Price on request
38
AARDENBURG
pinion (gear wheel) Z16M8.5

Item no.: A1-24496 ยท 1 pcs

Available to order
Price on request
39
AARDENBURG
pinion (gear wheel) Z15M8.5

Item no.: A1-24497 ยท 1 pcs

Available to order
Price on request
40
AARDENBURG
Oil filer plug

Item no.: A1-24498 ยท 1 pcs

Available to order
Price on request
41
AARDENBURG
O-ring 45x2.65

Item no.: A1-24499 ยท 2 pcs

Available to order
Price on request
42
AARDENBURG
Intermediate shaft shim (0.2)

Item no.: A1-24500 ยท 4 pcs

Available to order
Price on request
43
AARDENBURG
Intermediate shaft shim (0.5)

Item no.: A1-24501 ยท 2 pcs

Available to order
Price on request
44
AARDENBURG
Retaining ring 1

Item no.: A1-24502 ยท 2 pcs

Available to order
Price on request
45
AARDENBURG
Spring washer

Item no.: A1-24503 ยท 2 pcs

Available to order
Price on request
46
AARDENBURG
Full treaded bolt M16x40

Item no.: A1-24504 ยท 2 pcs

Available to order
Price on request
47
AARDENBURG
Nut M14x1.5

Item no.: A1-24505 ยท 2 pcs

Available to order
Price on request

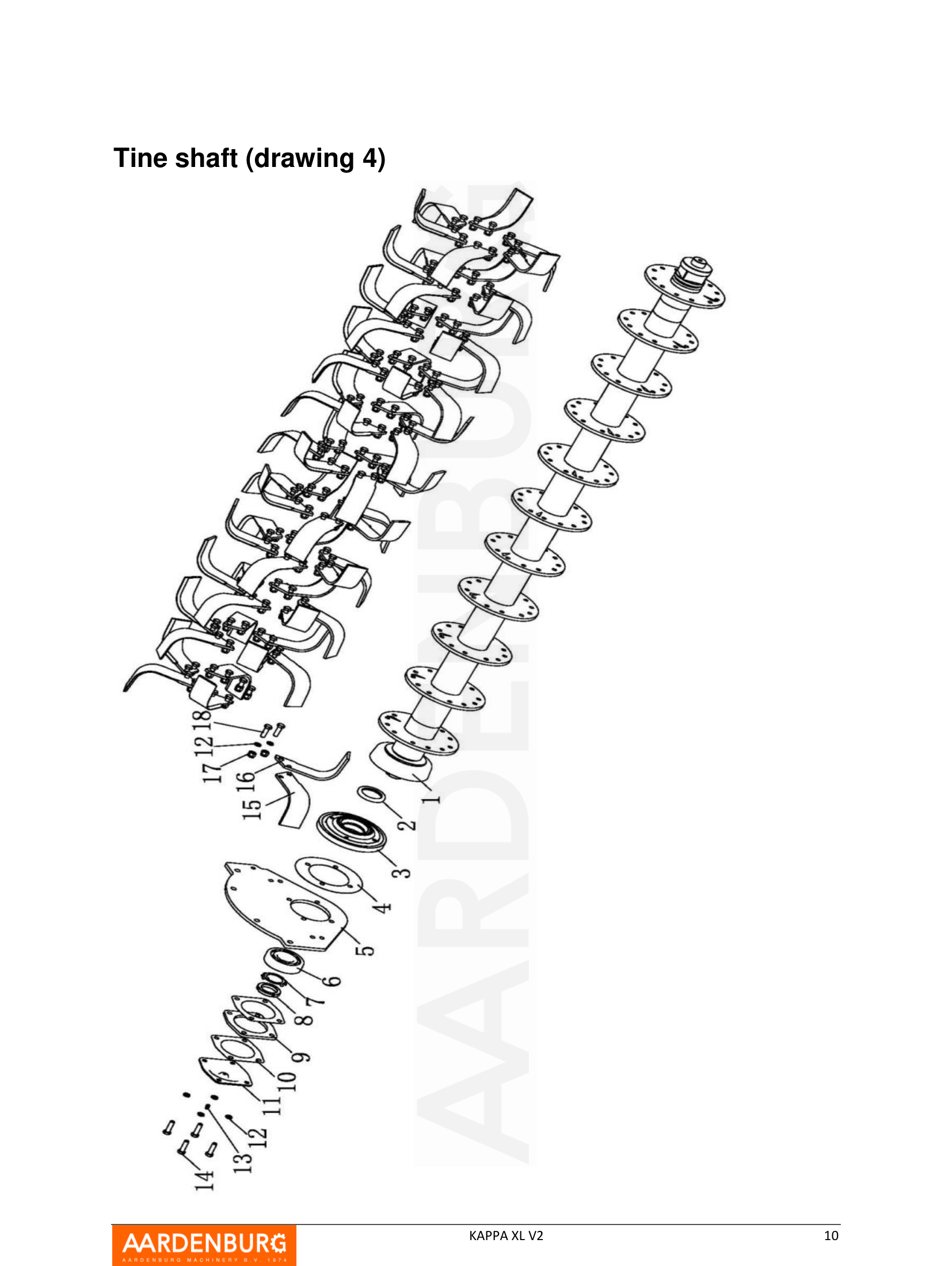

1
AARDENBURG
Tine shaft

Item no.: A1-24506 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Oil Seal FB60x80x8

Item no.: A1-24507 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Right-hand ring

Item no.: A1-24508 ยท 1 pcs

Available to order
Price on request
4
AARDENBURG
Right-hand ring gasket

Item no.: A1-24509 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Tine shaft mounting plate

Item no.: A1-24510 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG Popular part
Deep groove ball bearing 6310

Item no.: A1-24511 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
Stop washer M48

Item no.: A1-24512 ยท 1 pcs

Available to order
Price on request
8
AARDENBURG
Fine thread lock nut M48x1.5

Item no.: A1-24513 ยท 1 pcs

Available to order
Price on request
9
AARDENBURG
Right-hand end cap spacer

Item no.: A1-24514 ยท 1 pcs

Available to order
Price on request
10
AARDENBURG
Right-hand end cap rubber gasket

Item no.: A1-24515 ยท 2 pcs

Available to order
Price on request
11
AARDENBURG
Right-hand end cap

Item no.: A1-24516 ยท 1 pcs

Available to order
Price on request
12
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 132 pcs

Available to order
Price on request
13
AARDENBURG
Grease nipple M8x1

Item no.: A1-24517 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Full treaded bolt M12x40

Item no.: A1-24472 ยท 4 pcs

Available to order
Price on request
15 Left curved tine
AARDENBURG Popular part
Left curved tine

Item no.: A1-24518 ยท 33 pcs

In stock
5,85 EUR +VAT
16 Right curved tine
AARDENBURG Popular part
Right curved tine

Item no.: A1-24519 ยท 33 pcs

In stock
5,85 EUR +VAT
17
AARDENBURG
Self-locking nut M12x1.25

Item no.: A1-24520 ยท 132 pcs

Available to order
0,39 EUR +VAT
18
AARDENBURG
Full treaded bolt M12x1.25 x 35

Item no.: A1-24521 ยท 132 pcs

Available to order
0,39 EUR +VAT

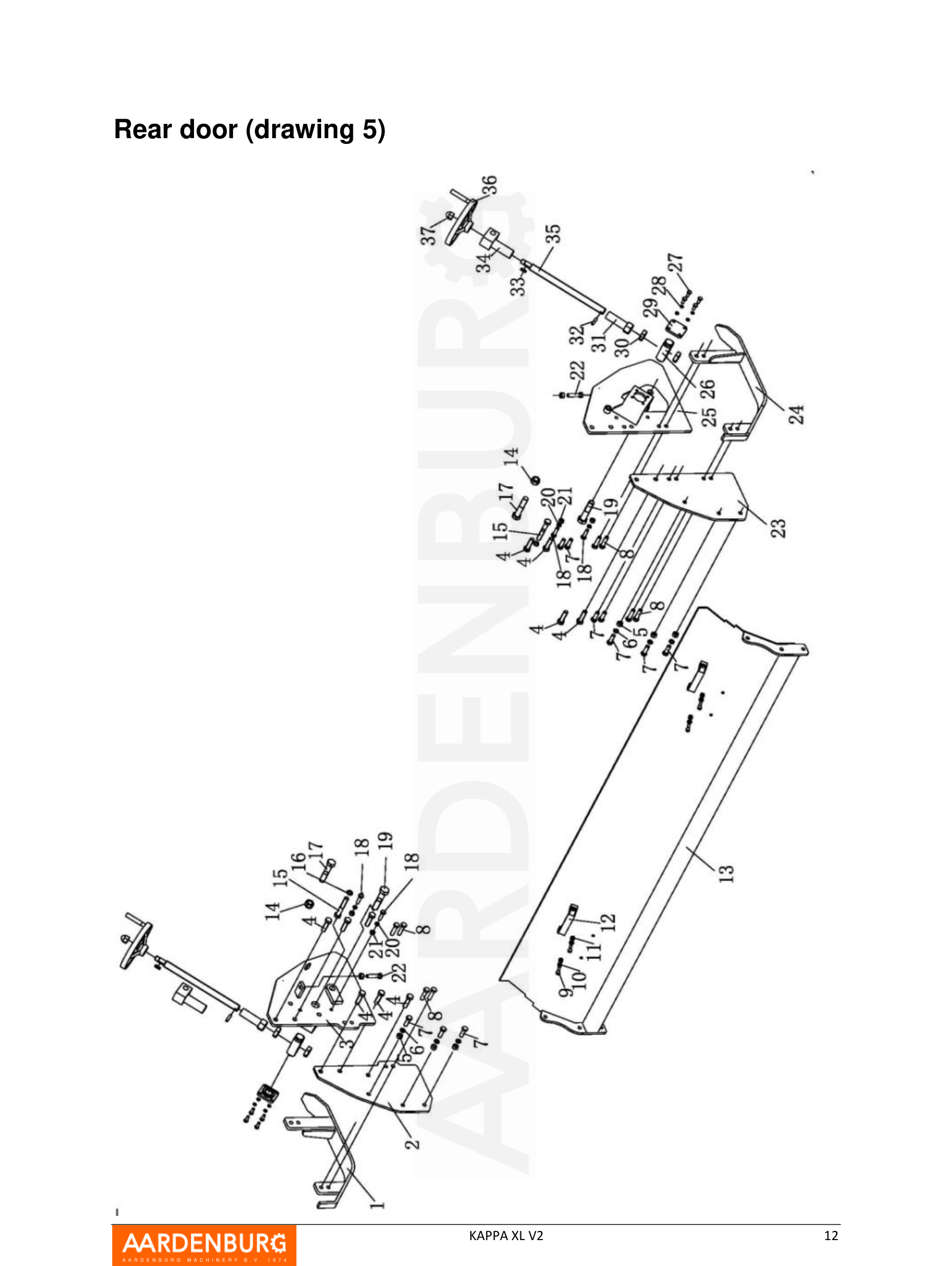

1
AARDENBURG
Right-hand skid

Item no.: A1-24522 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Right-hand front guard

Item no.: A1-24523 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Right-hand rear side panel

Item no.: A1-24524 ยท 1 pcs

Available to order
Price on request
4
AARDENBURG
Full treaded bolt M14x50

Item no.: A1-24525 ยท 10 pcs

Available to order
Price on request
5
AARDENBURG
Nut M12

Item no.: A1-24427 ยท 8 pcs

Available to order
Price on request
6
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 6 pcs

Available to order
Price on request
7
AARDENBURG
Full treaded bolt M12x35

Item no.: A1-24526 ยท 10 pcs

Available to order
Price on request
8
AARDENBURG
Full treaded boltx45

Item no.: A1-24527 ยท 8 pcs

Available to order
Price on request
9
AARDENBURG
Allen bolt M8X25

Item no.: A1-24528 ยท 4 pcs

Available to order
Price on request
10
AARDENBURG
Flat washer M8

Item no.: A1-24529 ยท 4 pcs

Available to order
Price on request
11
AARDENBURG
Self-locking nut M8

Item no.: A1-24419 ยท 4 pcs

Available to order
Price on request
12
AARDENBURG
Handle

Item no.: A1-24530 ยท 2 pcs

Available to order
Price on request
13
AARDENBURG
Dear door

Item no.: A1-24531 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Self-locking nut M18

Item no.: A1-24532 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Half treaded bolt M14 x 19

Item no.: A1-24533 ยท 2 pcs

Available to order
Price on request
16
AARDENBURG
Spring washer M14

Item no.: A1-24428 ยท 2 pcs

Available to order
Price on request
17
AARDENBURG
Half threaded bolt M18x90

Item no.: A1-24534 ยท 2 pcs

Available to order
Price on request
18
AARDENBURG
Full treaded bolt M10x35

Item no.: A1-24535 ยท 4 pcs

Available to order
Price on request
19
AARDENBURG
Half threaded bolt M20x90

Item no.: A1-24536 ยท 2 pcs

Available to order
Price on request
20
AARDENBURG
Spring washer M10

Item no.: A1-24486 ยท 4 pcs

Available to order
Price on request
21
AARDENBURG
Nut M10

Item no.: A1-24537 ยท 4 pcs

Available to order
Price on request
22
AARDENBURG
Full treaded bolt M12x50

Item no.: A1-24538 ยท 2 pcs

Available to order
Price on request
23
AARDENBURG
Left-hand front guard

Item no.: A1-24539 ยท 1 pcs

Available to order
Price on request
24
AARDENBURG
Left-hand skid

Item no.: A1-24540 ยท 1 pcs

Available to order
Price on request
25
AARDENBURG
Left-hand side panel

Item no.: A1-24541 ยท 1 pcs

Available to order
Price on request
26
AARDENBURG
Pivot shaft

Item no.: A1-24542 ยท 2 pcs

Available to order
Price on request
27
AARDENBURG
Full treaded bolt M8x20

Item no.: A1-24435 ยท 8 pcs

Available to order
Price on request
28
AARDENBURG
Spring washer M8

Item no.: A1-24434 ยท 8 pcs

Available to order
Price on request
29
AARDENBURG
Pivot shaft cover

Item no.: A1-24543 ยท 2 pcs

Available to order
Price on request
30
AARDENBURG
Nut M24

Item no.: A1-24544 ยท 4 pcs

Available to order
Price on request
31
AARDENBURG
Connecting nut

Item no.: A1-24545 ยท 2 pcs

Available to order
Price on request
32
AARDENBURG
R-clip 8x35

Item no.: A1-24546 ยท 2 pcs

Available to order
Price on request
33
AARDENBURG
Flat key 6x6x22

Item no.: A1-24547 ยท 2 pcs

Available to order
Price on request
34
AARDENBURG
Mounting block traverse

Item no.: A1-24548 ยท 4 pcs

Available to order
Price on request
35
AARDENBURG
Traverse axle

Item no.: A1-24549 ยท 2 pcs

Available to order
Price on request
36
AARDENBURG
Handwheel

Item no.: A1-24550 ยท 2 pcs

Available to order
Price on request
37
AARDENBURG
Cap nut

Item no.: A1-24551 ยท 2 pcs

Available to order
Price on request

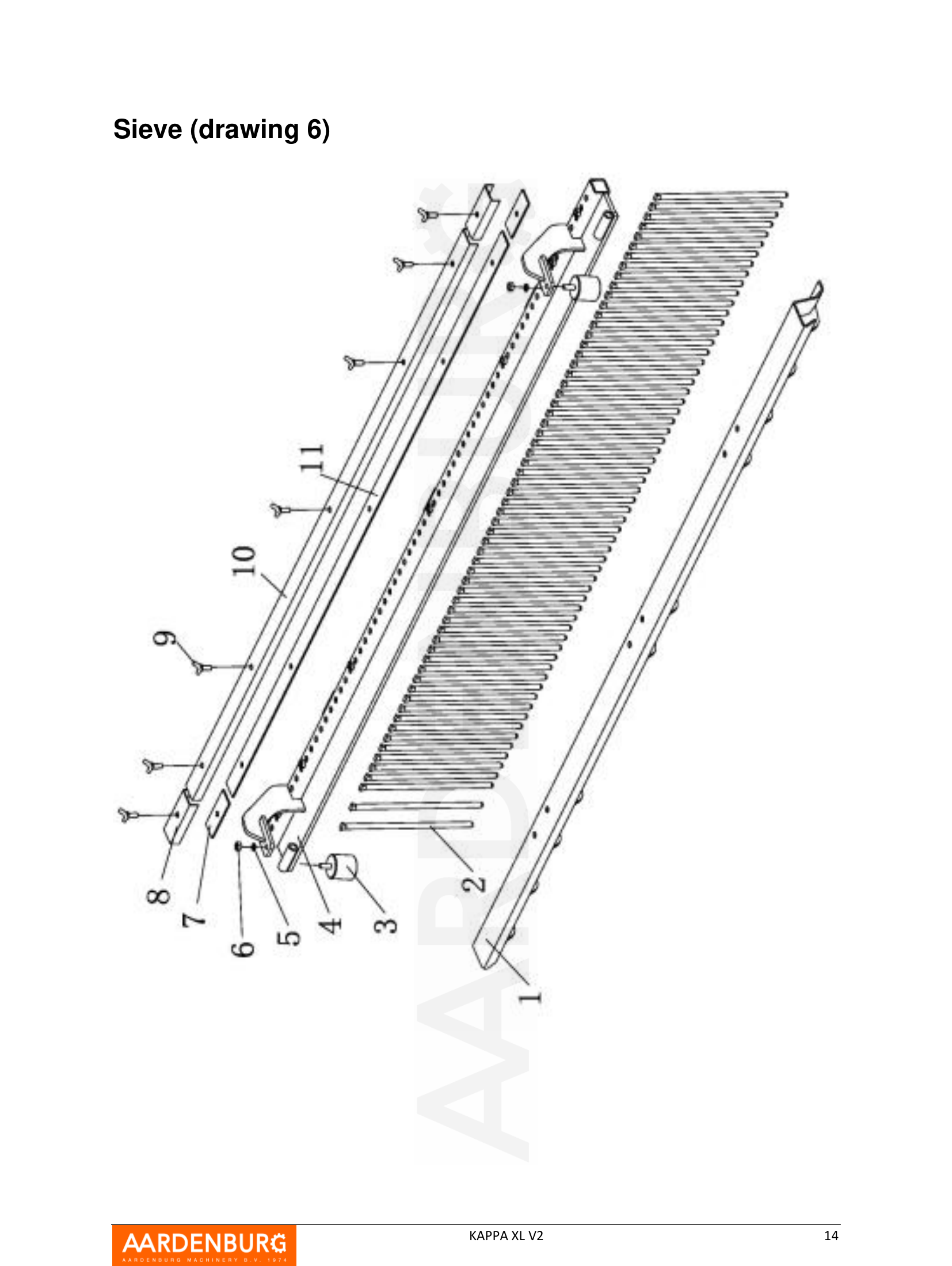

1
AARDENBURG
Top profile

Item no.: A1-24552 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Siev tooth

Item no.: A1-24553 ยท 65 pcs

Available to order
Price on request
3
AARDENBURG
Buffer block

Item no.: A1-24554 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Siev teeth frame

Item no.: A1-24555 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Spring washer M10

Item no.: A1-24486 ยท 2 pcs

Available to order
Price on request
6
AARDENBURG
Nut M10

Item no.: A1-24537 ยท 2 pcs

Available to order
Price on request
7
AARDENBURG
Rubber filler strip end piece

Item no.: A1-24556 ยท 2 pcs

Available to order
Price on request
8
AARDENBURG
Cover profile end piece

Item no.: A1-24557 ยท 2 pcs

Available to order
Price on request
9
AARDENBURG
Butterfly Bolt M10x25

Item no.: A1-24558 ยท 7 pcs

Available to order
Price on request
10
AARDENBURG
Cover profile

Item no.: A1-24559 ยท 1 pcs

Available to order
Price on request
11
AARDENBURG
Rubber filler strip

Item no.: A1-24560 ยท 1 pcs

Available to order
Price on request

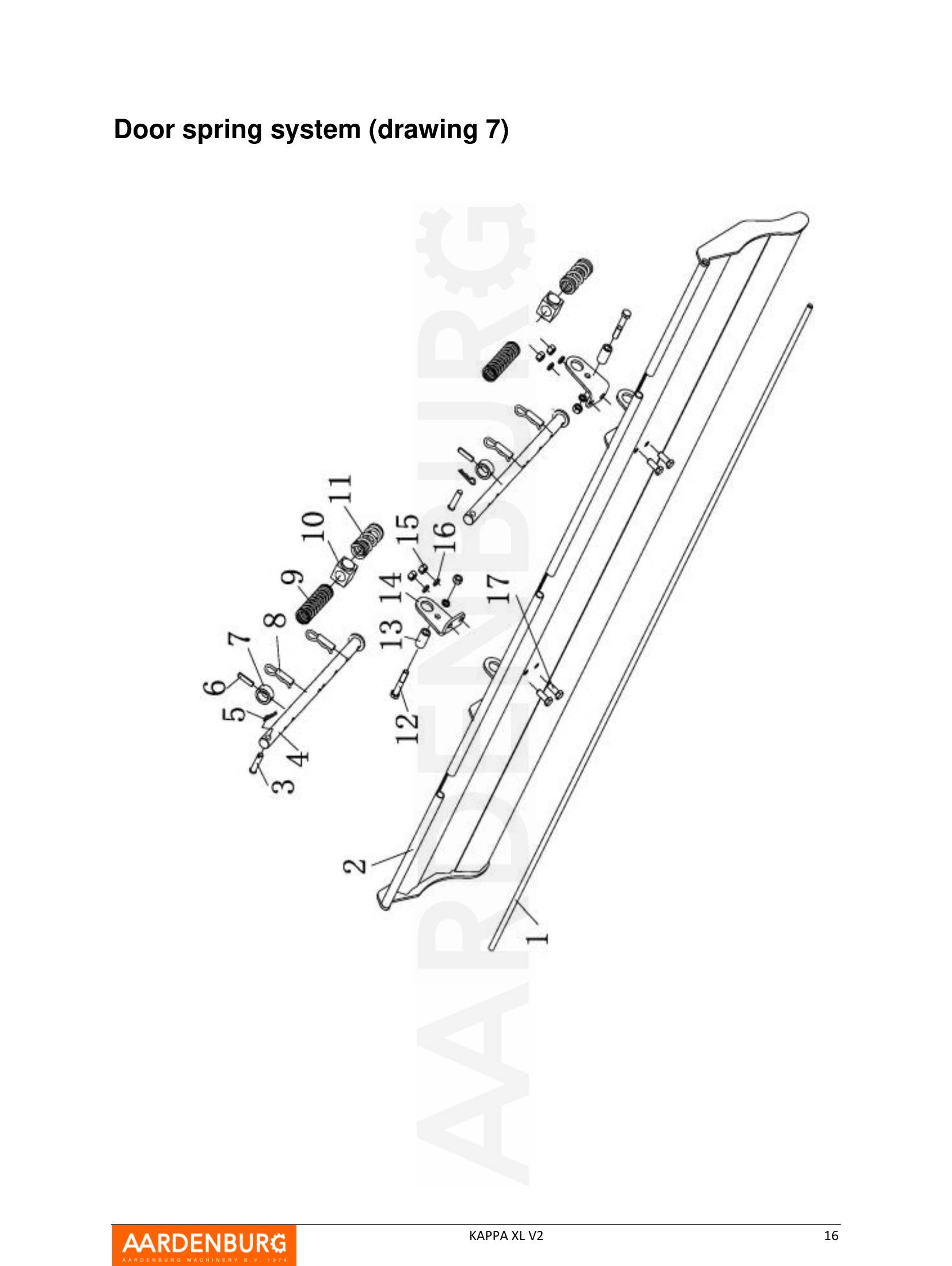

1
AARDENBURG
Rear door hinge rod

Item no.: A1-24561 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Rear door

Item no.: A1-24562 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Pin ร˜12x50

Item no.: A1-24563 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Rear door guide rod

Item no.: A1-24564 ยท 2 pcs

Available to order
Price on request
5
AARDENBURG
Impact locking pin

Item no.: A1-24565 ยท 2 pcs

Available to order
Price on request
6
AARDENBURG
Linch pin 10x40

Item no.: A1-24566 ยท 2 pcs

Available to order
Price on request
7
AARDENBURG
Spacer ring

Item no.: A1-24567 ยท 2 pcs

Available to order
Price on request
8
AARDENBURG
R-clip 12

Item no.: A1-24568 ยท 4 pcs

Available to order
Price on request
9
AARDENBURG
Top spring

Item no.: A1-24569 ยท 2 pcs

Available to order
Price on request
10
AARDENBURG
Spring block

Item no.: A1-24570 ยท 2 pcs

Available to order
Price on request
11
AARDENBURG
Bottom spring

Item no.: A1-24571 ยท 2 pcs

Available to order
Price on request
12
AARDENBURG
Half threaded bolt M12x70

Item no.: A1-24572 ยท 2 pcs

Available to order
Price on request
13
AARDENBURG
Spacer bushing

Item no.: A1-24573 ยท 2 pcs

Available to order
Price on request
14
AARDENBURG
Spring block bracket

Item no.: A1-24574 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Nut M12

Item no.: A1-24427 ยท 6 pcs

Available to order
Price on request
16
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 6 pcs

Available to order
Price on request
17
AARDENBURG
Full treaded bolt M12x30

Item no.: A1-24575 ยท 4 pcs

Available to order
Price on request

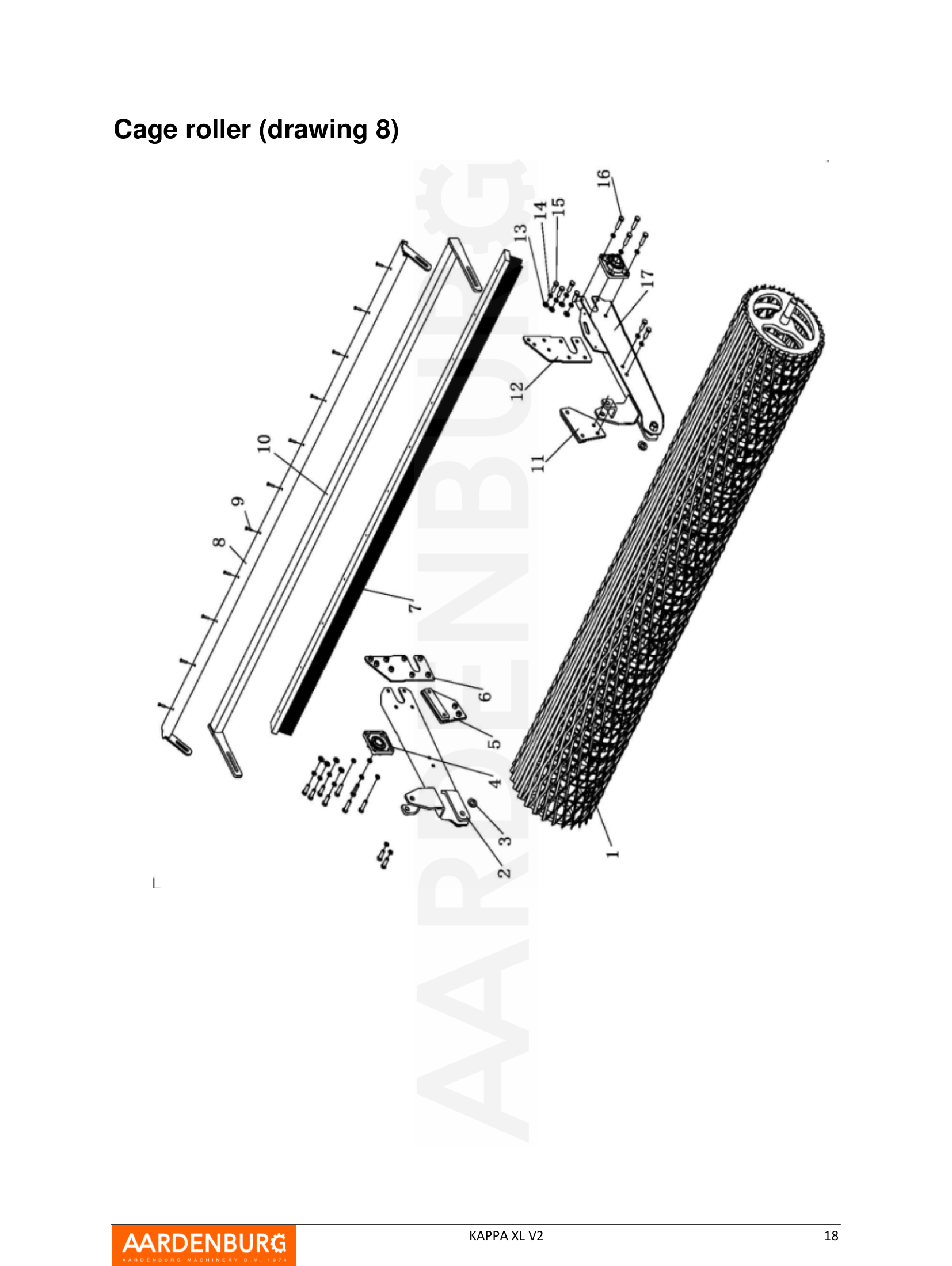

1
AARDENBURG
Cage roller

Item no.: A1-24576 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Right-hand side frame

Item no.: A1-24577 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Spacer bushing 37X21X5

Item no.: A1-24578 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG Popular part
UCF206 bearing housing

Item no.: A1-24579 ยท 2 pcs

Available to order
Price on request
5
AARDENBURG
Roller adjustment plate ๏ผˆ 2 ๏ผ‰

Item no.: A1-24580 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG
Roller connecting plate ๏ผˆ 2 ๏ผ‰

Item no.: A1-24581 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
Brush cage roller

Item no.: A1-24582 ยท 1 pcs

Available to order
Price on request
8
AARDENBURG
Locking profile

Item no.: A1-24583 ยท 1 pcs

Available to order
Price on request
9
AARDENBURG
Full treaded bolt

Item no.: A1-24584 ยท 11 pcs

Available to order
Price on request
10
AARDENBURG
Brush frame

Item no.: A1-24585 ยท 1 pcs

Available to order
Price on request
11
AARDENBURG
Roller adjustment plate (1 ๏ผ‰

Item no.: A1-24586 ยท 1 pcs

Available to order
Price on request
12
AARDENBURG
Roller connecting plate ๏ผˆ 1 ๏ผ‰

Item no.: A1-24587 ยท 1 pcs

Available to order
Price on request
13
AARDENBURG
Flat washer M12

Item no.: A1-24588 ยท 8 pcs

Available to order
Price on request
14
AARDENBURG
Spring washer M12

Item no.: A1-24425 ยท 20 pcs

Available to order
Price on request
15
AARDENBURG
Full treaded bolt M12x35

Item no.: A1-24526 ยท 12 pcs

Available to order
Price on request
16
AARDENBURG
Half threaded bolt M12x35

Item no.: A1-24589 ยท 8 pcs

Available to order
Price on request
17
AARDENBURG
Left-hand side frame

Item no.: A1-24590 ยท 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
