AARDENBURG

Lignum M 120, Cardan driven woodchipper max 12 cm

In stock 0.0 0 reviews Item no.: A01-2433

Parameters

Company
Aardenburg
Weight
474 kg
RPM
540/1000 rpm
Minimum HP
26 hp
Blade
4+1 pcs
Max tree diameter
12-14 cm
Feeder opening ( Width x Height)
24x12 cm

Description

Order now and get a gratis cardan shaft!


Strong and durable. Designed with intensive use in mind. Hydraulically controlled wood chipper ideal for reducing all your trimmings into usable mulch. Perfectly balanced with a wide range of tractors. Very suitable for fruit growers and landscapers. TUNEABLE - speed, feed height, chipsize, direction of trow. PROVEN - reliable and robust cutting and feed mechanism. COMPACT - collapsible funnel for easy transport and storage. 360 CHUTE - easy adjustment of ejection of processed pruning waste. ERGONOMIC - Hydraulic assisted feed system for low physical impact.

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com — our colleagues reply within 2-4 hours!

Exploded view


Diagrams

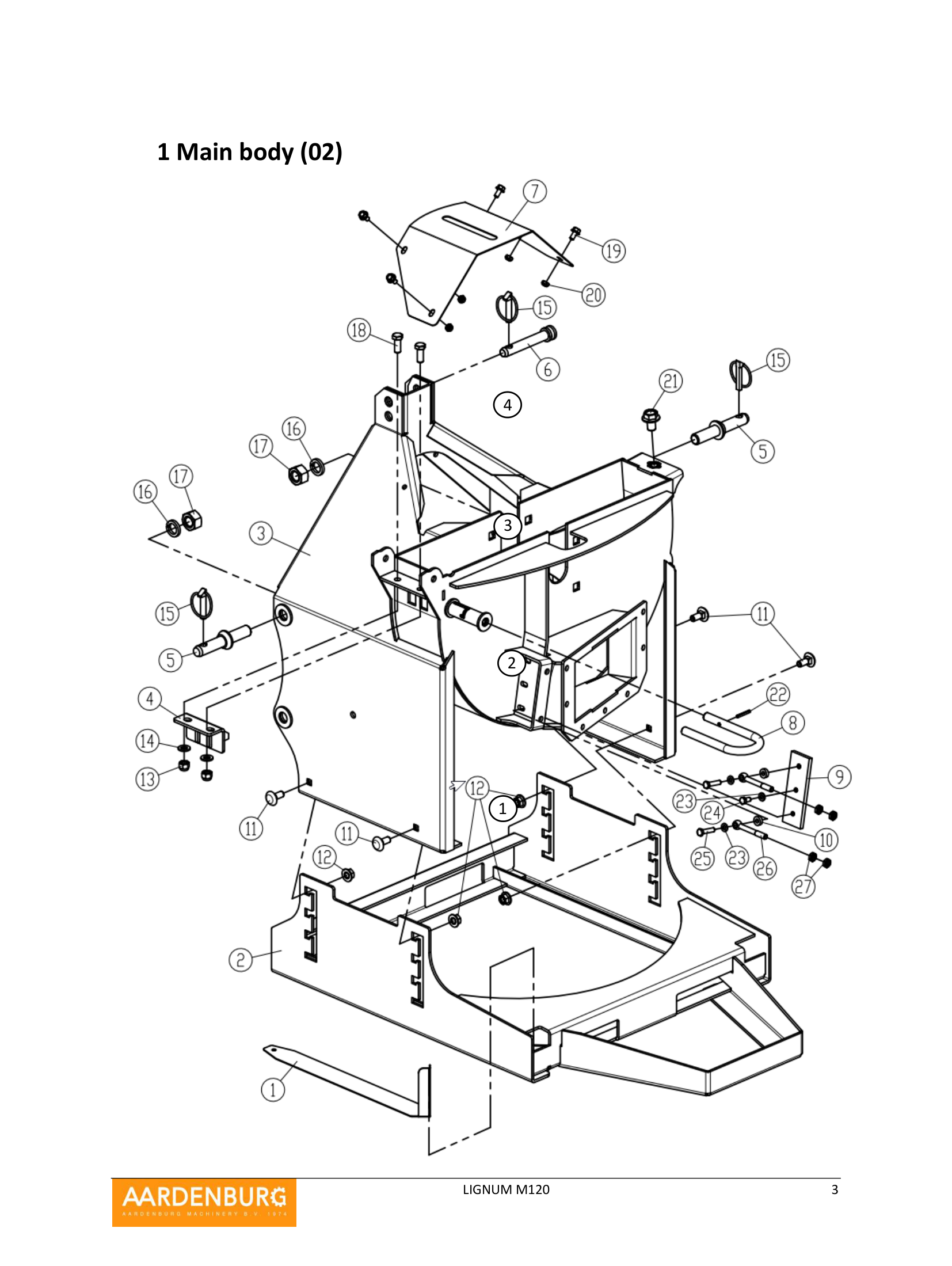

1
AARDENBURG
Gap adjusting plate 1.5

Item no.: A1-26085 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Pedestal

Item no.: A1-26086 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Fly wheel housing

Item no.: A1-26087 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Cover lock plate

Item no.: A1-26088 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Lower linkage pin

Item no.: A1-26089 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Up linkage pin

Item no.: A1-26090 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Protection cover

Item no.: A1-26091 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Lock pin

Item no.: A1-26092 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Fixing plate

Item no.: A1-26093 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Washer

Item no.: A1-26094 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M12x30

Item no.: A1-26095 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Nut M12

Item no.: A1-26096 · 4 pcs

Available to order
Price on request
13
AARDENBURG
Nut M12

Item no.: A1-26097 · 2 pcs

Available to order
Price on request
14
AARDENBURG
Washer 12

Item no.: A1-26098 · 2 pcs

Available to order
Price on request
15
AARDENBURG
Lock pin Φ12

Item no.: A1-26099 · 3 pcs

Available to order
Price on request
16
AARDENBURG
Spring wahser22

Item no.: A1-26100 · 2 pcs

Available to order
Price on request
17
AARDENBURG
Nut M22

Item no.: A1-26101 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Bolt M12x30

Item no.: A1-26102 · 2 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M 8x16

Item no.: A1-26103 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Nut M8

Item no.: A1-26104 · 4 pcs

Available to order
Price on request
21
AARDENBURG
Bolt M16x25

Item no.: A1-26105 · 1 pcs

Available to order
Price on request
22
AARDENBURG
Pin 5x35

Item no.: A1-26106 · 1 pcs

Available to order
Price on request
23
AARDENBURG
Washer 8

Item no.: A1-26107 · 3 pcs

Available to order
Price on request
24
AARDENBURG
Bolt M8x16

Item no.: A1-26108 · 1 pcs

Available to order
Price on request
25
AARDENBURG
Bolt M8x35

Item no.: A1-26109 · 2 pcs

Available to order
Price on request
26
AARDENBURG
Bolt M10x80

Item no.: A1-26110 · 2 pcs

Available to order
Price on request
27
AARDENBURG
Nut M10

Item no.: A1-26111 · 4 pcs

Available to order
Price on request

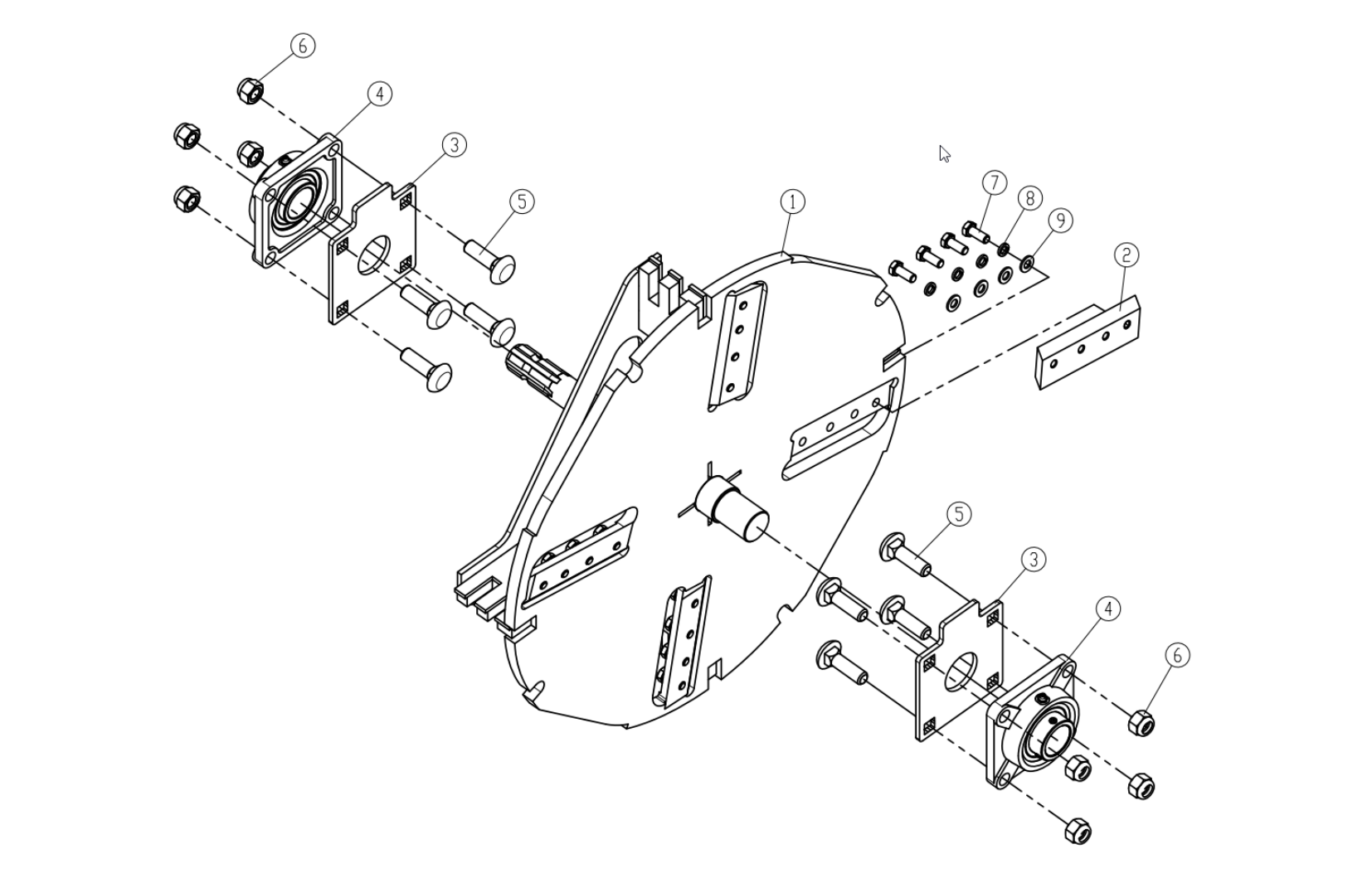

1
AARDENBURG
Fly wheel

Item no.: A1-26112 · 1 pcs

Available to order
Price on request
2
AARDENBURG Popular part
Chipping blade

Item no.: A1-26113 · 4 pcs

Available to order
21,00 EUR +VAT
3
AARDENBURG
Bearing plate

Item no.: A1-26114 · 2 pcs

Available to order
Price on request
4
AARDENBURG Popular part
UCF208 bearing with seat

Item no.: A1-26389 · 2 pcs

Available to order
Price on request
5
AARDENBURG
Bolt M16x55

Item no.: A1-26116 · 8 pcs

Available to order
Price on request
6
AARDENBURG
Nut M16

Item no.: A1-26117 · 8 pcs

Available to order
Price on request
7
AARDENBURG
Bolt M10x25

Item no.: A1-26118 · 16 pcs

Available to order
Price on request
8
AARDENBURG
Spring washer 10

Item no.: A1-26119 · 16 pcs

Available to order
Price on request
9
AARDENBURG
Washer 10

Item no.: A1-26120 · 16 pcs

Available to order
Price on request

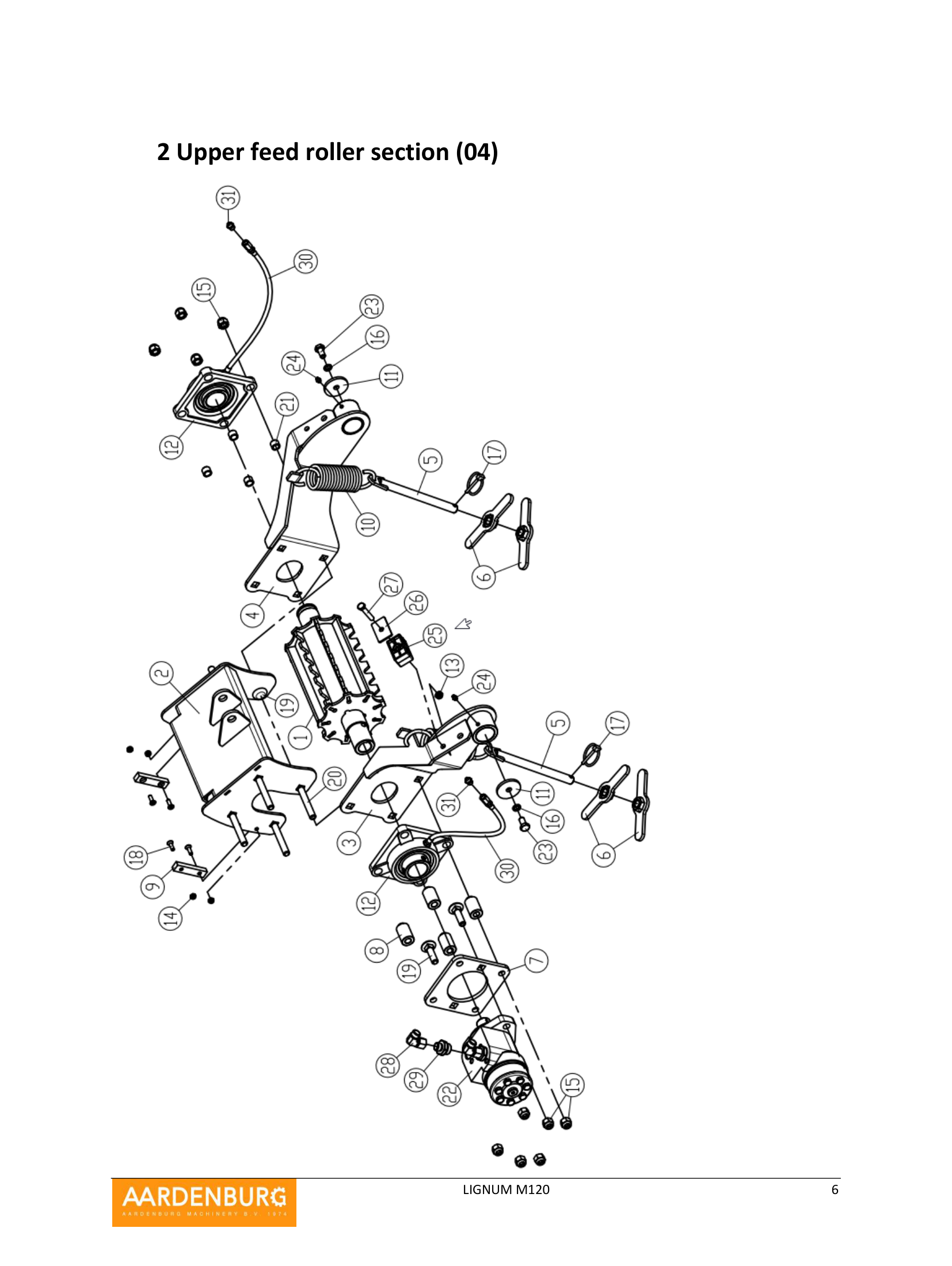

1
AARDENBURG
Upper roller

Item no.: A1-26121 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Upper roller cover

Item no.: A1-26122 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Roller left arm

Item no.: A1-26123 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Roller right arm

Item no.: A1-26124 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Tension spring rod

Item no.: A1-26125 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Hand screw nut M16

Item no.: A1-26126 · 4 pcs

Available to order
Price on request
7
AARDENBURG
Motor base

Item no.: A1-26127 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Spacer

Item no.: A1-26128 · 4 pcs

Available to order
Price on request
9
AARDENBURG
Nylon liner

Item no.: A1-26129 · 2 pcs

Available to order
Price on request
10
AARDENBURG
Tension arm spring

Item no.: A1-26130 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Ring

Item no.: A1-26131 · 2 pcs

Available to order
Price on request
12
AARDENBURG Popular part
UCF208 bearing with seat

Item no.: A1-26389 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Nut M8

Item no.: A1-26133 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Nut M6

Item no.: A1-26134 · 4 pcs

Available to order
Price on request
15
AARDENBURG
Nut M12

Item no.: A1-26135 · 10 pcs

Available to order
Price on request
16
AARDENBURG
Spring washer 10

Item no.: A1-26136 · 2 pcs

Available to order
Price on request
17
AARDENBURG
Lock pin Φ5

Item no.: A1-26137 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Screw M6x20

Item no.: A1-26138 · 4 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M12x45

Item no.: A1-26139 · 6 pcs

Available to order
Price on request
20
AARDENBURG
Bolt M12x90

Item no.: A1-26140 · 4 pcs

Available to order
Price on request
21
AARDENBURG
Bush

Item no.: A1-26141 · 4 pcs

Available to order
Price on request
22
AARDENBURG
Motor

Item no.: A1-26142 · 1 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M10x20

Item no.: A1-26143 · 2 pcs

Available to order
Price on request
24
AARDENBURG
Grease nipple M6

Item no.: A1-26144 · 2 pcs

Available to order
Price on request
25
AARDENBURG
Double pipe clamp

Item no.: A1-26145 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Press plate

Item no.: A1-26146 · 1 pcs

Available to order
Price on request
27
AARDENBURG
Bolt M8x45

Item no.: A1-26147 · 1 pcs

Available to order
Price on request
28
AARDENBURG
90° connector

Item no.: A1-26148 · 2 pcs

Available to order
Price on request
29
AARDENBURG
Hose connector

Item no.: A1-26149 · 2 pcs

Available to order
Price on request
30
AARDENBURG
Grease pipe

Item no.: A1-26150 · 2 pcs

Available to order
Price on request
31
AARDENBURG
Grease nipple M10x1

Item no.: A1-26151 · 2 pcs

Available to order
Price on request

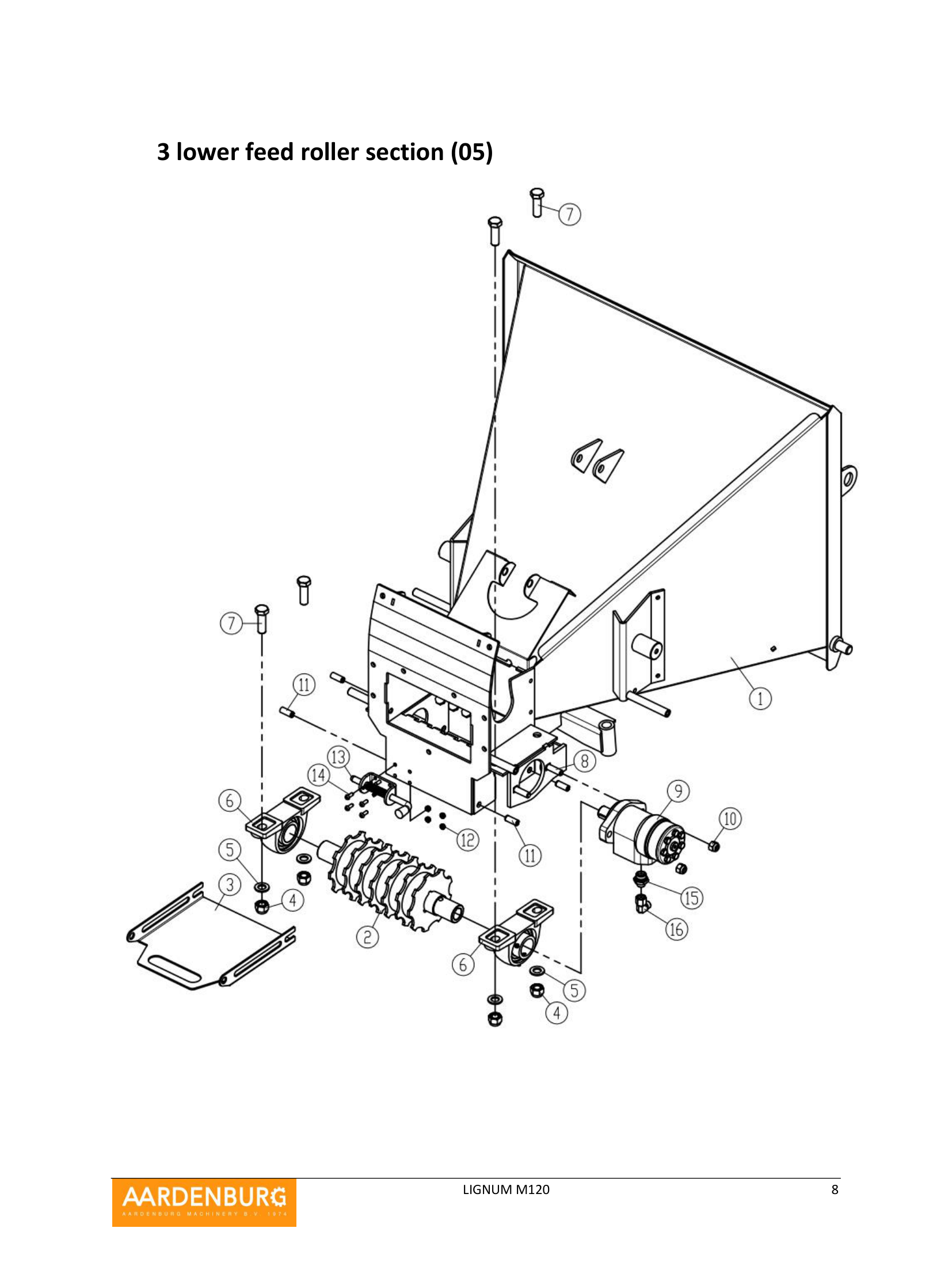

1
AARDENBURG
Feeding hopper

Item no.: A1-26152 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Lower roller

Item no.: A1-26153 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Drawer board

Item no.: A1-26154 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Nut M16

Item no.: A1-26155 · 4 pcs

Available to order
Price on request
5
AARDENBURG
Washer 16

Item no.: A1-26156 · 4 pcs

Available to order
Price on request
6
AARDENBURG Popular part
Bearing UCP208 with seat

Item no.: A1-26157 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Bolt M16x50

Item no.: A1-26158 · 4 pcs

Available to order
Price on request
8
AARDENBURG
Bolt M12x45

Item no.: A1-26159 · 2 pcs

Available to order
Price on request
9
AARDENBURG
Motor

Item no.: A1-26160 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Nut M12

Item no.: A1-26161 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Pin 12x30

Item no.: A1-26162 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Nut M6

Item no.: A1-26163 · 4 pcs

Available to order
Price on request
13
AARDENBURG
Latch spring

Item no.: A1-26164 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Screw M6x16

Item no.: A1-26165 · 4 pcs

Available to order
Price on request
15
AARDENBURG
Hose connector

Item no.: A1-26166 · 2 pcs

Available to order
Price on request
16
AARDENBURG
90° connector

Item no.: A1-26167 · 2 pcs

Available to order
Price on request

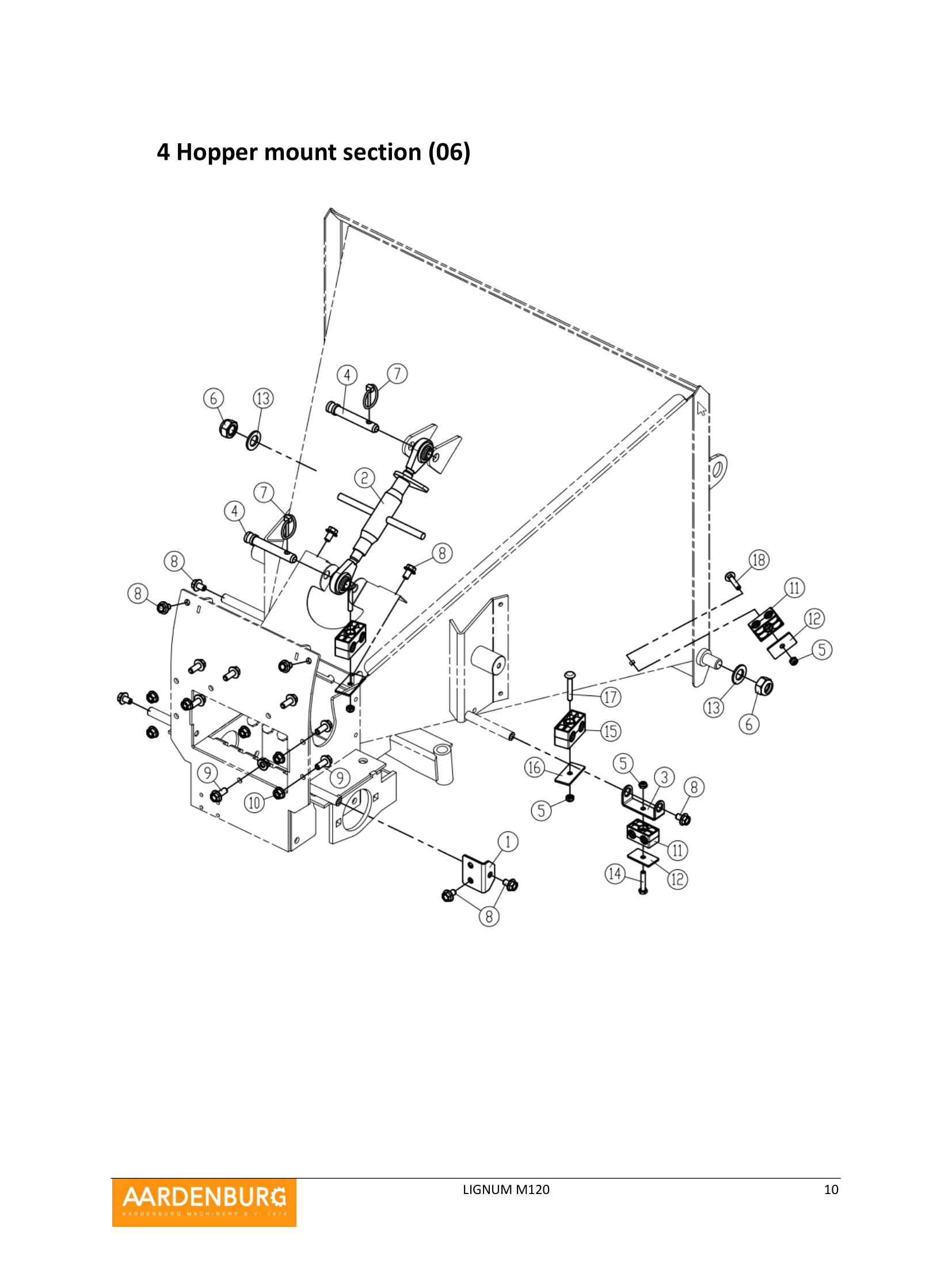

1
AARDENBURG
Angled plate

Item no.: A1-26168 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Toplink

Item no.: A1-26169 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Mounting bracket

Item no.: A1-26170 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Toplink pin

Item no.: A1-26171 · 2 pcs

Available to order
Price on request
5
AARDENBURG
Nut M8

Item no.: A1-26172 · 4 pcs

Available to order
Price on request
6
AARDENBURG
Nut M20

Item no.: A1-26173 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Lock pin Φ5

Item no.: A1-26174 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Bolt M10x16

Item no.: A1-26175 · 9 pcs

Available to order
Price on request
9
AARDENBURG
Bolt M10x25

Item no.: A1-26176 · 7 pcs

Available to order
Price on request
10
AARDENBURG
Nut M10

Item no.: A1-26177 · 7 pcs

Available to order
Price on request
11
AARDENBURG
Double pipe clamp

Item no.: A1-26178 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Pressure plate

Item no.: A1-26179 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Washer20

Item no.: A1-26180 · 2 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M8x40

Item no.: A1-26181 · 1 pcs

Available to order
Price on request
15
AARDENBURG
Double pipe clamp

Item no.: A1-26182 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Pressure plate

Item no.: A1-26183 · 2 pcs

Available to order
Price on request
17
AARDENBURG
Bolt M8x55

Item no.: A1-26184 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Bolt M8x40

Item no.: A1-26185 · 1 pcs

Available to order
Price on request

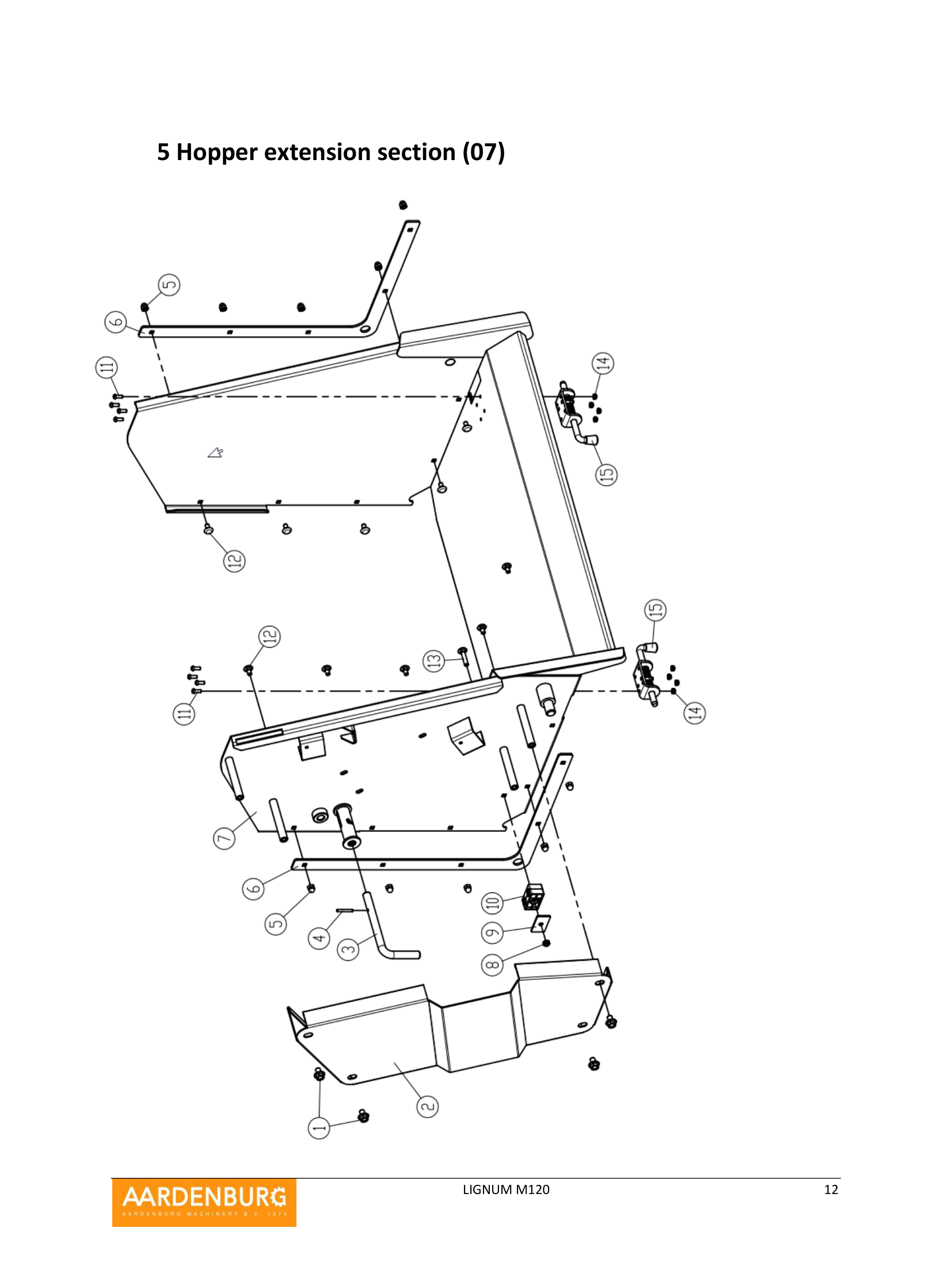

1
AARDENBURG
Bolt M10x16

Item no.: A1-26186 · 4 pcs

Available to order
Price on request
2
AARDENBURG
Valve cover

Item no.: A1-26187 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Locking pin

Item no.: A1-26188 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Pin 5x35

Item no.: A1-26189 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Cap nut M8

Item no.: A1-26190 · 10 pcs

Available to order
Price on request
6
AARDENBURG
L-shape profile

Item no.: A1-26191 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Folding hopper

Item no.: A1-26192 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Nut M8

Item no.: A1-26193 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Press plate

Item no.: A1-26194 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Double pipe clamp

Item no.: A1-26195 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Screw M6x16

Item no.: A1-26196 · 8 pcs

Available to order
Price on request
12
AARDENBURG
Bolt M8x16

Item no.: A1-26197 · 10 pcs

Available to order
Price on request
13
AARDENBURG
Bolt M8x40

Item no.: A1-26198 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Nut M6

Item no.: A1-26199 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Latch spring

Item no.: A1-26200 · 2 pcs

Available to order
Price on request

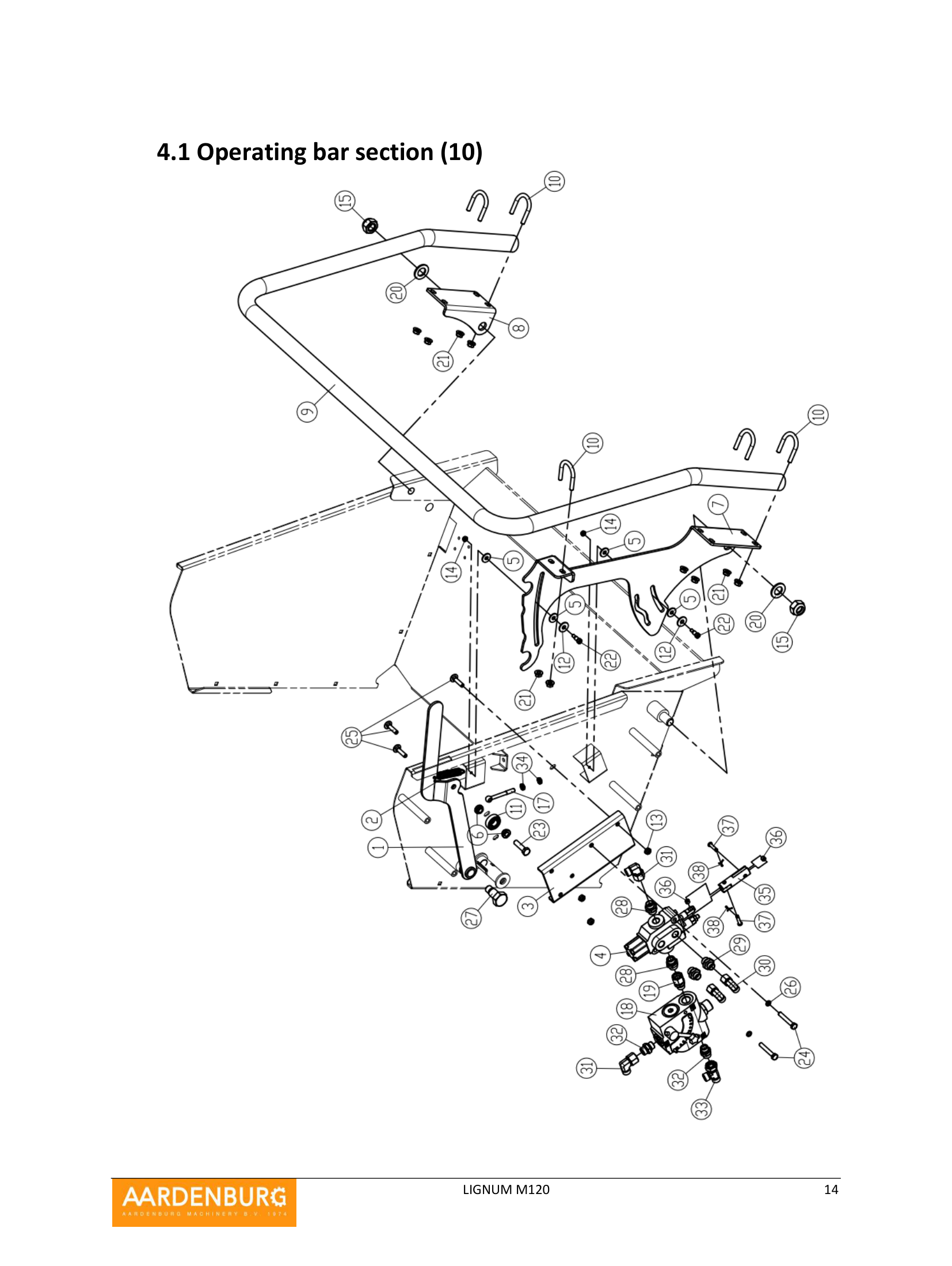

1
AARDENBURG
Unlock handle

Item no.: A1-26201 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Unlock handle spring

Item no.: A1-26202 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Valve seat

Item no.: A1-26203 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Valve

Item no.: A1-26204 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Nylon gasket

Item no.: A1-26205 · 4 pcs

Available to order
Price on request
6
AARDENBURG
Bush

Item no.: A1-26206 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Control plate

Item no.: A1-26207 · 1 pcs

Available to order
Price on request
8
AARDENBURG
hinged plate

Item no.: A1-26208 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Valve control rod

Item no.: A1-26209 · 1 pcs

Available to order
Price on request
10
AARDENBURG
U bolt M8

Item no.: A1-26210 · 5 pcs

Available to order
Price on request
11
AARDENBURG Popular part
Bearing 6202

Item no.: A1-26467 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Washer 8

Item no.: A1-26212 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Nut M8

Item no.: A1-26213 · 3 pcs

Available to order
Price on request
14
AARDENBURG
Nut M6

Item no.: A1-26214 · 2 pcs

Available to order
Price on request
15
AARDENBURG
Nut M20

Item no.: A1-26215 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Nut M10

Item no.: A1-26216 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Swing bolt M8x70

Item no.: A1-26217 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Proportional valve

Item no.: A1-26218 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Oil pipe connector

Item no.: A1-26219 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Washer20

Item no.: A1-26220 · 2 pcs

Available to order
Price on request
21
AARDENBURG
Nut M8

Item no.: A1-26221 · 10 pcs

Available to order
Price on request
22
AARDENBURG
Axis bolt M6x12

Item no.: A1-26222 · 2 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M10x40

Item no.: A1-26223 · 1 pcs

Available to order
Price on request
24
AARDENBURG
Bolt M8x55

Item no.: A1-26224 · 2 pcs

Available to order
Price on request
25
AARDENBURG
Bolt M8x35

Item no.: A1-26225 · 3 pcs

Available to order
Price on request
26
AARDENBURG
Spring washer 8

Item no.: A1-26226 · 2 pcs

Available to order
Price on request
27
AARDENBURG
Shaft bolt

Item no.: A1-26227 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Hose connector

Item no.: A1-26228 · 2 pcs

Available to order
Price on request
29
AARDENBURG
Hose connector

Item no.: A1-26229 · 2 pcs

Available to order
Price on request
30
AARDENBURG
90° connector

Item no.: A1-26230 · 2 pcs

Available to order
Price on request
31
AARDENBURG
90° connector

Item no.: A1-26231 · 2 pcs

Available to order
Price on request
32
AARDENBURG
Hose connector

Item no.: A1-26232 · 2 pcs

Available to order
Price on request
33
AARDENBURG
T-junction

Item no.: A1-26233 · 1 pcs

Available to order
Price on request
34
AARDENBURG
Nut M8

Item no.: A1-26234 · 2 pcs

Available to order
Price on request
35
AARDENBURG
Valve control

Item no.: A1-26235 · 1 pcs

Available to order
Price on request
36
AARDENBURG
wheel

Item no.: A1-26236 · 2 pcs

Available to order
Price on request
37
AARDENBURG
Pin shaft B6x26

Item no.: A1-26237 · 2 pcs

Available to order
Price on request
38
AARDENBURG
Cotter pin 2x12

Item no.: A1-26238 · 2 pcs

Available to order
Price on request

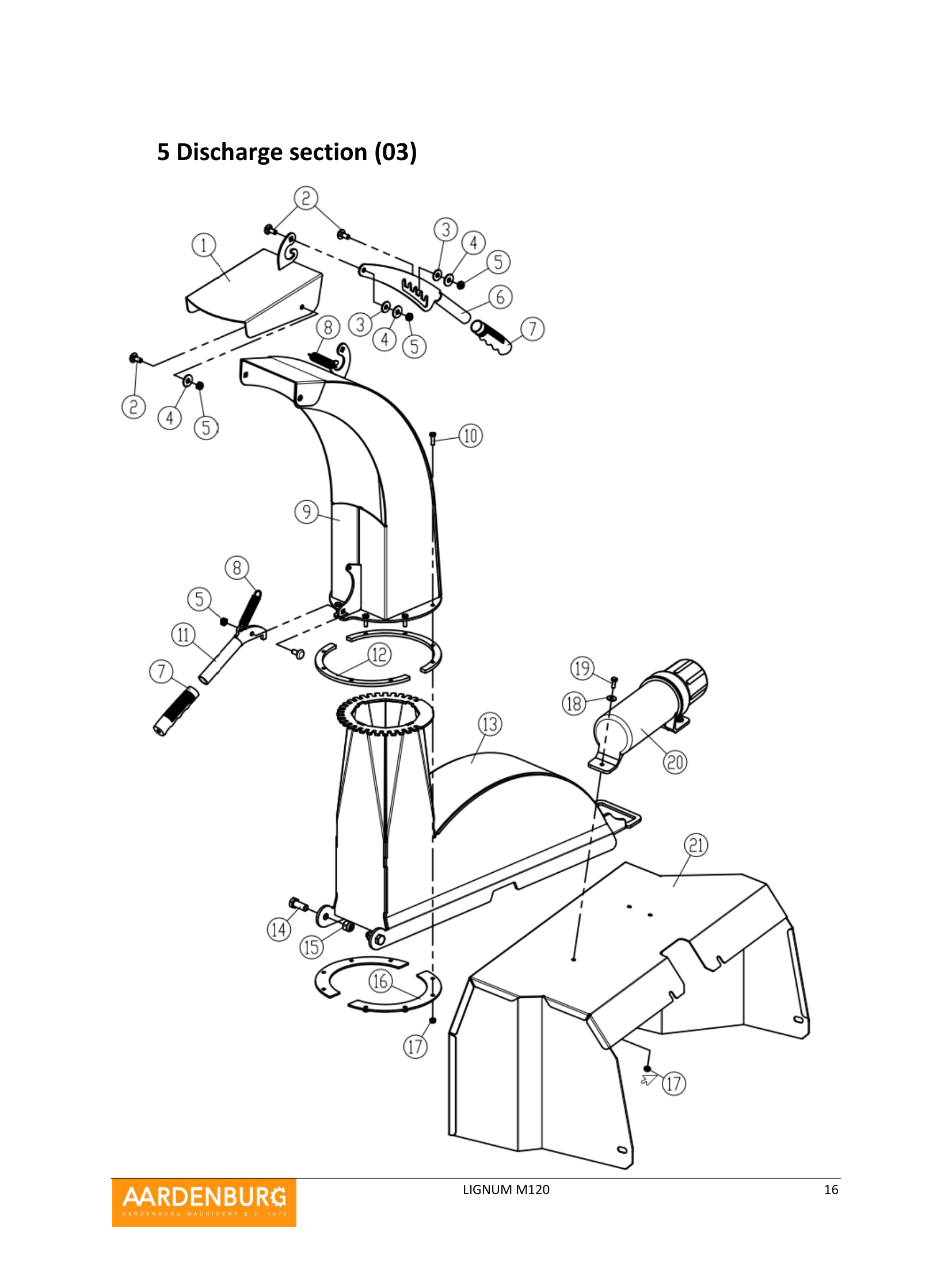

1
AARDENBURG
Guide exhaust hood

Item no.: A1-26239 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Bolt M8x20

Item no.: A1-26240 · 5 pcs

Available to order
Price on request
3
AARDENBURG
Nylon gasket

Item no.: A1-26241 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Washer 8

Item no.: A1-26242 · 4 pcs

Available to order
Price on request
5
AARDENBURG
Nut M8

Item no.: A1-26243 · 5 pcs

Available to order
Price on request
6
AARDENBURG
Positioning pod

Item no.: A1-26244 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Handle sleeve

Item no.: A1-26245 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Unlock handle spring

Item no.: A1-26246 · 2 pcs

Available to order
Price on request
9
AARDENBURG
Discharge hole

Item no.: A1-26247 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Bolt M6x20

Item no.: A1-26248 · 8 pcs

Available to order
Price on request
11
AARDENBURG
Handle on discharge hole

Item no.: A1-26249 · 1 pcs

Available to order
Price on request
12
AARDENBURG
semicircle plate

Item no.: A1-26250 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Flywheel cover

Item no.: A1-26251 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M12x30

Item no.: A1-26252 · 2 pcs

Available to order
Price on request
15
AARDENBURG
Nut M12

Item no.: A1-26253 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Semi-circle washer

Item no.: A1-26254 · 2 pcs

Available to order
Price on request
17
AARDENBURG
Nut M6

Item no.: A1-26255 · 11 pcs

Available to order
Price on request
18
AARDENBURG
Washer 6

Item no.: A1-26256 · 3 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M 6x16

Item no.: A1-26257 · 3 pcs

Available to order
Price on request
20
AARDENBURG
Manual container

Item no.: A1-26258 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Motor cover

Item no.: A1-26259 · 1 pcs

Available to order
Price on request

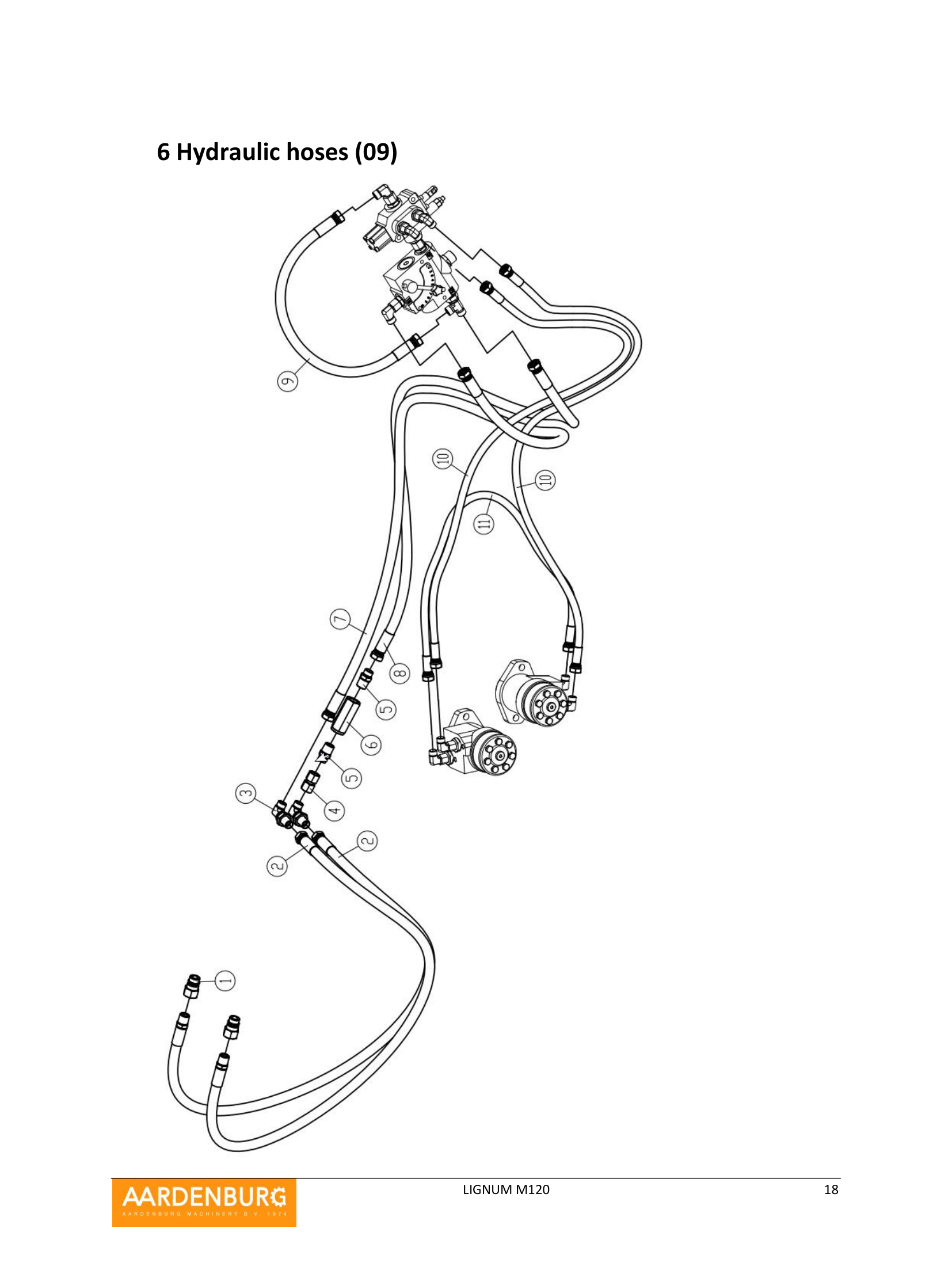

1
AARDENBURG
Quick change connectors

Item no.: A1-26260 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Hose

Item no.: A1-26261 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Connector

Item no.: A1-26262 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Hose connector

Item no.: A1-26263 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Hose connector

Item no.: A1-26264 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Check valve

Item no.: A1-26265 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Inlet tube

Item no.: A1-26266 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Return pipe

Item no.: A1-26267 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Oil return pipe

Item no.: A1-26268 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Motor oil pipe

Item no.: A1-26269 · 2 pcs

Available to order
Price on request
11
AARDENBURG
Pipe between motors

Item no.: A1-26270 · 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
