Lignum M 160, Cardan driven woodchipper max 16 cm

Available to order 0.0 0 reviews Item no.: A01-2120

Parameters

Company
Aardenburg
Weight
695 kg
Minimum Right side move
540/1000 mm
Minimum HP
55 hp
Blade
4+1 pcs
Max tree diameter
16-18 cm
Feeder opening ( Width x Height)
25x20 cm

Description

Order now and get a gratis cardan shaft!


Strong and durable. Designed with intensive use in mind. Hydraulically controlled wood chipper ideal for reducing all your trimmings into usable mulch. Perfectly balanced with a wide range of tractors. Very suitable for fruit growers and landscapers. TUNEABLE - speed, feed height, chipsize, direction of trow. PROVEN - reliable and robust cutting and feed mechanism. COMPACT - collapsible funnel for easy transport and storage. 360 CHUTE - easy adjustment of ejection of processed pruning waste. ERGONOMIC - Hydraulic assisted feed system for low physical impact.

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com โ€” our colleagues reply within 2-4 hours!

Exploded view


Diagrams

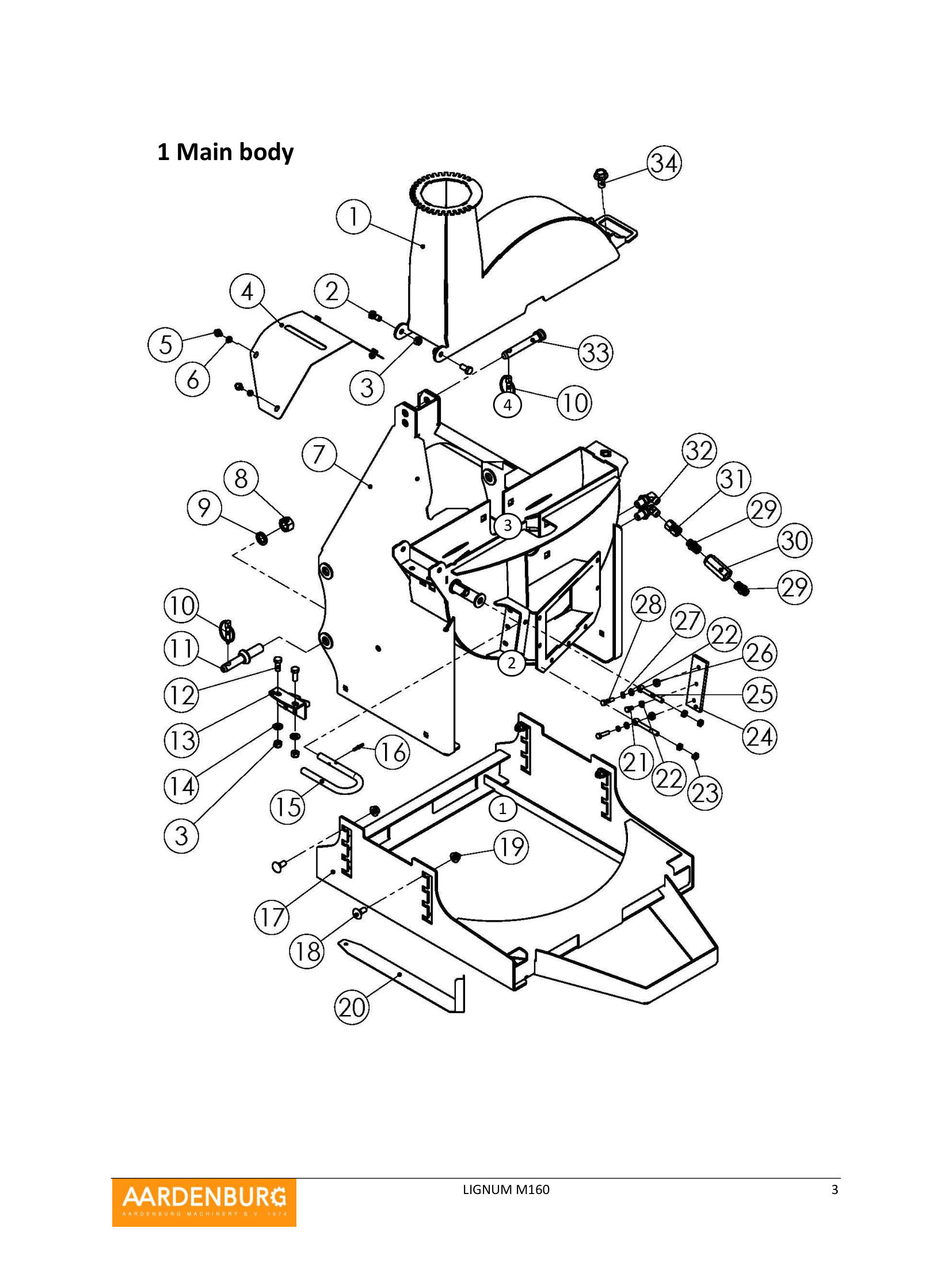

1
AARDENBURG
Flywheel upper housing

Item no.: A1-24760 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Bolt

Item no.: A1-24761 ยท 2 pcs

Available to order
Price on request
3
AARDENBURG
Lock Nut

Item no.: A1-24762 ยท 4 pcs

Available to order
0,39 EUR +VAT
4
AARDENBURG
Cover

Item no.: A1-24763 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Bolt

Item no.: A1-24764 ยท 4 pcs

Available to order
Price on request
6
AARDENBURG
Lock nut

Item no.: A1-24765 ยท 4 pcs

Available to order
Price on request
7
AARDENBURG
Flywheel lower housing

Item no.: A1-24766 ยท 1 pcs

Available to order
Price on request
8
AARDENBURG
Nut

Item no.: A1-24767 ยท 2 pcs

Available to order
Price on request
9
AARDENBURG
Spring washer

Item no.: A1-24768 ยท 2 pcs

Available to order
Price on request
10
AARDENBURG
Combined pins

Item no.: A1-24769 ยท 3 pcs

Available to order
Price on request
11
AARDENBURG
Upper rod pin shaft

Item no.: A1-24770 ยท 2 pcs

Available to order
Price on request
12
AARDENBURG
Bolt

Item no.: A1-24771 ยท 2 pcs

Available to order
Price on request
13
AARDENBURG
Bracket

Item no.: A1-24772 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Plain washer

Item no.: A1-24773 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Lock Pin

Item no.: A1-24774 ยท 1 pcs

Available to order
Price on request
16
AARDENBURG
Pin

Item no.: A1-24775 ยท 1 pcs

Available to order
Price on request
17
AARDENBURG
Base

Item no.: A1-24776 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Bolt

Item no.: A1-24777 ยท 4 pcs

Available to order
Price on request
19
AARDENBURG
Nut

Item no.: A1-24778 ยท 4 pcs

Available to order
Price on request
20
AARDENBURG
Adjustable blades

Item no.: A1-24779 ยท 1 pcs

Available to order
Price on request
21
AARDENBURG
Bolt

Item no.: A1-24780 ยท 1 pcs

Available to order
Price on request
22
AARDENBURG
Plain washer

Item no.: A1-24781 ยท 3 pcs

Available to order
Price on request
23
AARDENBURG
Nut

Item no.: A1-24782 ยท 4 pcs

Available to order
Price on request
24
AARDENBURG Popular part
Stationary blade

Item no.: A1-24783 ยท 1 pcs

Available to order
Price on request
25
AARDENBURG
Bolt

Item no.: A1-24784 ยท 2 pcs

Available to order
Price on request
26
AARDENBURG
Washer

Item no.: A1-24629 ยท 2 pcs

Available to order
Price on request
27
AARDENBURG
Spring washer

Item no.: A1-24785 ยท 2 pcs

Available to order
Price on request
28
AARDENBURG
Bolt

Item no.: A1-24786 ยท 2 pcs

Available to order
Price on request
29
AARDENBURG
Screw thread

Item no.: A1-24787 ยท 2 pcs

Available to order
Price on request
30
AARDENBURG
One way valve

Item no.: A1-24788 ยท 1 pcs

Available to order
Price on request
31
AARDENBURG
Transition joints M18X1.5

Item no.: A1-24789 ยท 1 pcs

Available to order
Price on request
32
AARDENBURG
Joints

Item no.: A1-24790 ยท 2 pcs

Available to order
Price on request
33
AARDENBURG
Lower rod pin shaft

Item no.: A1-24791 ยท 1 pcs

Available to order
Price on request
34
AARDENBURG
Bolt

Item no.: A1-24792 ยท 1 pcs

Available to order
Price on request

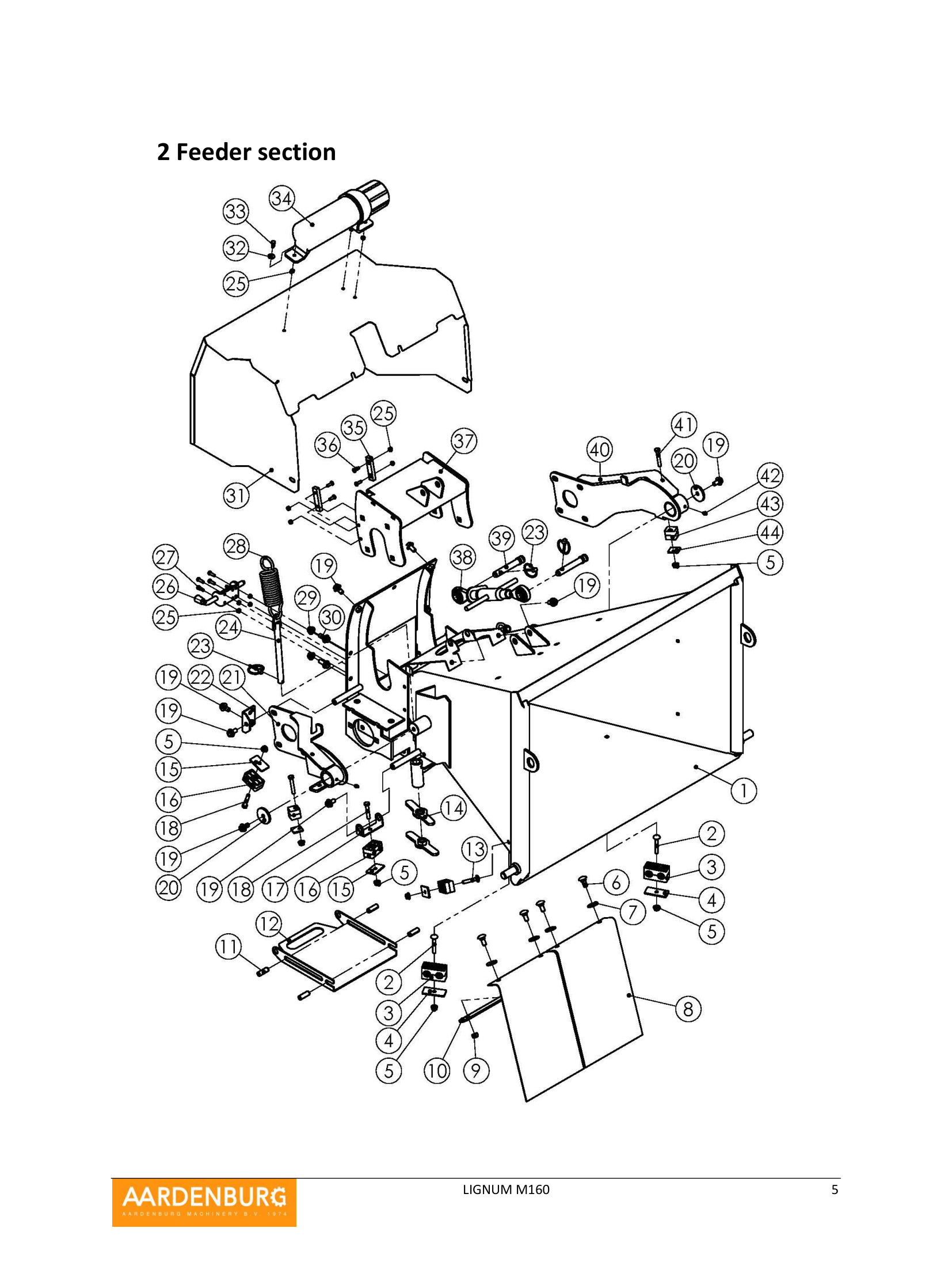

1
AARDENBURG
Feed bucket

Item no.: A1-24793 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Bolt

Item no.: A1-24794 ยท 2 pcs

Available to order
Price on request
3
AARDENBURG
Pipe clamp

Item no.: A1-24795 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Cover

Item no.: A1-24796 ยท 2 pcs

Available to order
Price on request
5
AARDENBURG
Nut

Item no.: A1-24797 ยท 7 pcs

Available to order
Price on request
6
AARDENBURG
Bolt

Item no.: A1-24798 ยท 4 pcs

Available to order
Price on request
7
AARDENBURG
Larger washer

Item no.: A1-24799 ยท 4 pcs

Available to order
Price on request
8
AARDENBURG
Plate

Item no.: A1-24800 ยท 2 pcs

Available to order
Price on request
9
AARDENBURG
Lock nut

Item no.: A1-24801 ยท 4 pcs

Available to order
Price on request
10
AARDENBURG
Pressure strip

Item no.: A1-24802 ยท 1 pcs

Available to order
Price on request
11
AARDENBURG
Pin

Item no.: A1-24803 ยท 4 pcs

Available to order
Price on request
12
AARDENBURG
Plate

Item no.: A1-24804 ยท 1 pcs

Available to order
Price on request
13
AARDENBURG
Bolt

Item no.: A1-24805 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Nut M16

Item no.: A1-24806 ยท 4 pcs

Available to order
Price on request
15
AARDENBURG
Cover

Item no.: A1-24807 ยท 3 pcs

Available to order
Price on request
16
AARDENBURG
Pipe clamp

Item no.: A1-24808 ยท 3 pcs

Available to order
Price on request
17
AARDENBURG
Plate

Item no.: A1-24809 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Bolt

Item no.: A1-24810 ยท 2 pcs

Available to order
Price on request
19
AARDENBURG
Bolt

Item no.: A1-24811 ยท 11 pcs

Available to order
Price on request
20
AARDENBURG
Retaining ring

Item no.: A1-24660 ยท 2 pcs

Available to order
Price on request
21
AARDENBURG
Left arm

Item no.: A1-24812 ยท 1 pcs

Available to order
Price on request
22
AARDENBURG
Plate

Item no.: A1-24813 ยท 1 pcs

Available to order
Price on request
23
AARDENBURG
Combined pins

Item no.: A1-24814 ยท 4 pcs

Available to order
Price on request
24
AARDENBURG
Adjusting rod

Item no.: A1-24815 ยท 2 pcs

Available to order
Price on request
25
AARDENBURG
Nut

Item no.: A1-24816 ยท 11 pcs

Available to order
Price on request
26
AARDENBURG
Pin

Item no.: A1-24817 ยท 1 pcs

Available to order
Price on request
27
AARDENBURG
Screw

Item no.: A1-24818 ยท 4 pcs

Available to order
Price on request
28
AARDENBURG
Tension spring

Item no.: A1-24819 ยท 2 pcs

Available to order
Price on request
29
AARDENBURG
Nut

Item no.: A1-24820 ยท 7 pcs

Available to order
Price on request
30
AARDENBURG
Bolt

Item no.: A1-24821 ยท 7 pcs

Available to order
Price on request
31
AARDENBURG
Motor Cover

Item no.: A1-24822 ยท 1 pcs

Available to order
Price on request
32
AARDENBURG
Larger washer

Item no.: A1-24823 ยท 3 pcs

Available to order
Price on request
33
AARDENBURG
Bolt

Item no.: A1-24824 ยท 3 pcs

Available to order
Price on request
34
AARDENBURG
Manual container

Item no.: A1-24825 ยท 1 pcs

Available to order
Price on request
35
AARDENBURG
Sleeve

Item no.: A1-24826 ยท 2 pcs

Available to order
Price on request
36
AARDENBURG
Bolt

Item no.: A1-24827 ยท 4 pcs

Available to order
Price on request
37
AARDENBURG
Roller bracket

Item no.: A1-24828 ยท 1 pcs

Available to order
Price on request
38
AARDENBURG
Adjusting rod

Item no.: A1-24829 ยท 1 pcs

Available to order
Price on request
39
AARDENBURG
Adjusting rod pin shaft

Item no.: A1-24830 ยท 2 pcs

Available to order
Price on request
40
AARDENBURG
Right arm

Item no.: A1-24831 ยท 1 pcs

Available to order
Price on request
41
AARDENBURG
Bolt

Item no.: A1-24832 ยท 2 pcs

Available to order
Price on request
42
AARDENBURG
Grease nipple

Item no.: A1-24833 ยท 2 pcs

Available to order
Price on request
43
AARDENBURG
Pipe clamp

Item no.: A1-24834 ยท 2 pcs

Available to order
Price on request
44
AARDENBURG
Cover

Item no.: A1-24835 ยท 2 pcs

Available to order
Price on request

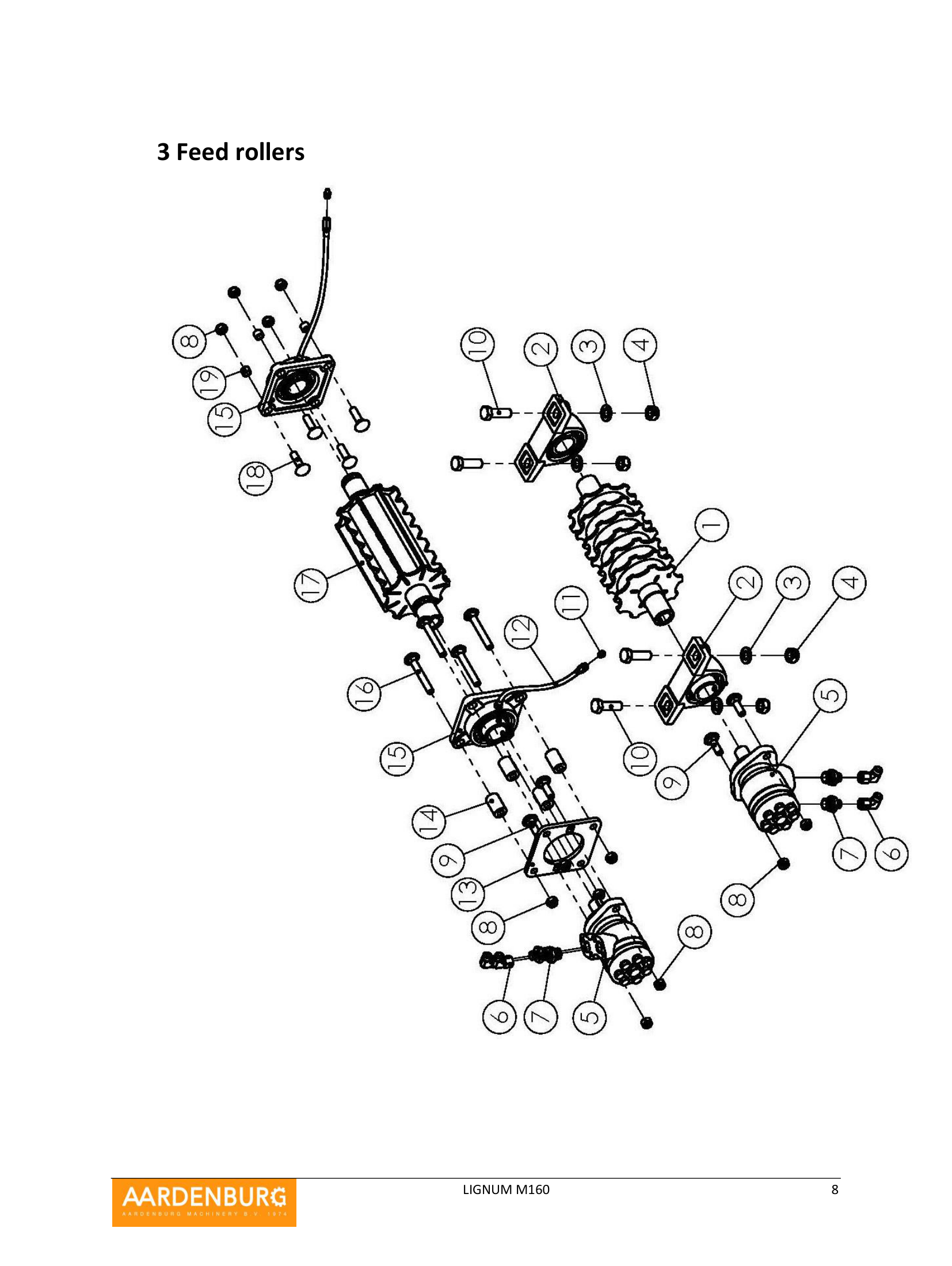

1
AARDENBURG
Lower roller

Item no.: A1-24836 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG Popular part
bearing

Item no.: A1-24837 ยท 2 pcs

Available to order
Price on request
3
AARDENBURG
Plain washer

Item no.: A1-24838 ยท 4 pcs

Available to order
Price on request
4
AARDENBURG
Nut

Item no.: A1-24839 ยท 4 pcs

Available to order
Price on request
5
AARDENBURG
Hydraulic motor

Item no.: A1-24716 ยท 2 pcs

Available to order
Price on request
6
AARDENBURG
Elbow M16X1.5

Item no.: A1-24840 ยท 4 pcs

Available to order
Price on request
7
AARDENBURG
Oil joint

Item no.: A1-24841 ยท 4 pcs

Available to order
Price on request
8
AARDENBURG
Nut

Item no.: A1-24842 ยท 12 pcs

Available to order
Price on request
9
AARDENBURG
Bolt

Item no.: A1-24843 ยท 4 pcs

Available to order
Price on request
10
AARDENBURG
Bolt

Item no.: A1-24844 ยท 4 pcs

Available to order
Price on request
11
AARDENBURG
Grease nipple

Item no.: A1-24845 ยท 2 pcs

Available to order
Price on request
12
AARDENBURG
Guide pipe

Item no.: A1-24846 ยท 1 pcs

Available to order
Price on request
13
AARDENBURG
Bearing Plate

Item no.: A1-24847 ยท 1 pcs

Available to order
Price on request
14
AARDENBURG
Bushing

Item no.: A1-24848 ยท 4 pcs

Available to order
Price on request
15
AARDENBURG Popular part
Bearing UCF208(R1/8)

Item no.: A1-24849 ยท 2 pcs

Available to order
Price on request
16
AARDENBURG
Bolt

Item no.: A1-24850 ยท 4 pcs

Available to order
Price on request
17
AARDENBURG
Upper roller

Item no.: A1-24851 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Bolt

Item no.: A1-24852 ยท 4 pcs

Available to order
Price on request
19
AARDENBURG
Bushing

Item no.: A1-24853 ยท 4 pcs

Available to order
Price on request
1
AARDENBURG
Folding bucket

Item no.: A1-24854 ยท 1 pcs

Available to order
Price on request

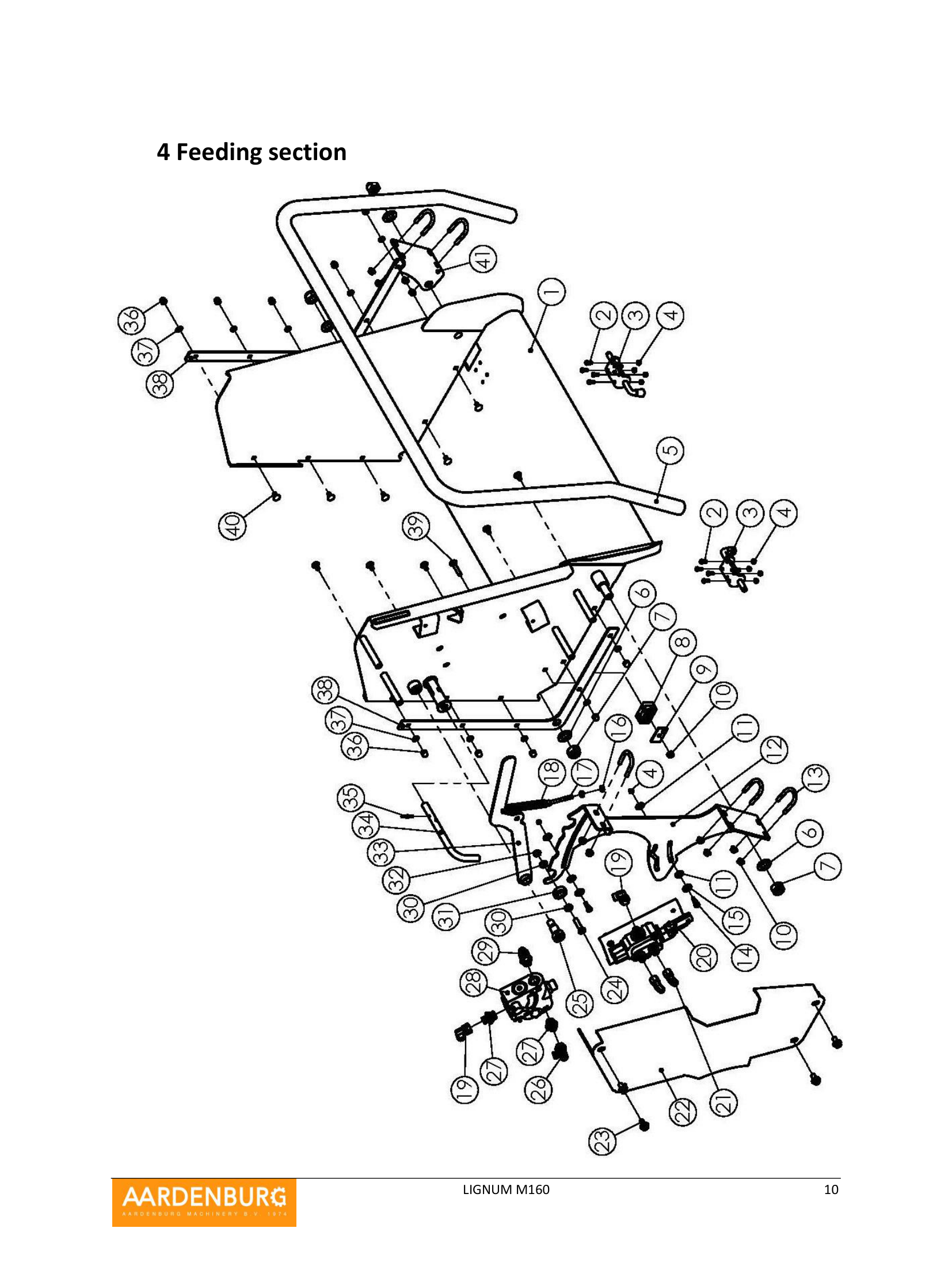

2
AARDENBURG
Screw

Item no.: A1-24855 ยท 8 pcs

Available to order
Price on request
3
AARDENBURG
Pin

Item no.: A1-24817 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Nut

Item no.: A1-24816 ยท 10 pcs

Available to order
Price on request
5
AARDENBURG
Control rod

Item no.: A1-24856 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG
Plain washer

Item no.: A1-24857 ยท 4 pcs

Available to order
Price on request
7
AARDENBURG
Nut

Item no.: A1-24858 ยท 4 pcs

Available to order
Price on request
8
AARDENBURG
Pipe clamp

Item no.: A1-24808 ยท 1 pcs

Available to order
Price on request
9
AARDENBURG
Cover

Item no.: A1-24807 ยท 1 pcs

Available to order
Price on request
10
AARDENBURG
Nut

Item no.: A1-24797 ยท 11 pcs

Available to order
Price on request
11
AARDENBURG
Nylon washer 8

Item no.: A1-24859 ยท 4 pcs

Available to order
Price on request
12
AARDENBURG
Plate

Item no.: A1-24860 ยท 1 pcs

Available to order
Price on request
13
AARDENBURG
U Bolt M8

Item no.: A1-24861 ยท 5 pcs

Available to order
Price on request
14
AARDENBURG
Bolt 8X12-M6

Item no.: A1-24862 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Larger plain washer

Item no.: A1-24863 ยท 2 pcs

Available to order
Price on request
16
AARDENBURG
Nut

Item no.: A1-24864 ยท 2 pcs

Available to order
Price on request
17
AARDENBURG
Bolt

Item no.: A1-24865 ยท 1 pcs

Available to order
Price on request
18
AARDENBURG
Tension spring

Item no.: A1-24678 ยท 1 pcs

Available to order
Price on request
19
AARDENBURG
Elbow M18X1.5

Item no.: A1-24866 ยท 2 pcs

Available to order
Price on request
20
AARDENBURG
Single Valve assembly

Item no.: A1-24867 ยท 1 pcs

Available to order
Price on request
21
AARDENBURG
Elbow M16X1.5

Item no.: A1-24840 ยท 2 pcs

Available to order
Price on request
22
AARDENBURG
Valve Cover

Item no.: A1-24868 ยท 1 pcs

Available to order
Price on request
23
AARDENBURG
Bolt

Item no.: A1-24811 ยท 4 pcs

Available to order
Price on request
24
AARDENBURG
Bolt

Item no.: A1-24869 ยท 1 pcs

Available to order
Price on request
25
AARDENBURG
Bolt 20X25-M16

Item no.: A1-24870 ยท 1 pcs

Available to order
Price on request
26
AARDENBURG
Plug

Item no.: A1-24871 ยท 1 pcs

Available to order
Price on request
27
AARDENBURG
Joint M18X1.5-G1/2X14

Item no.: A1-24872 ยท 3 pcs

Available to order
Price on request
28
AARDENBURG
Valve

Item no.: A1-24873 ยท 1 pcs

Available to order
Price on request
29
AARDENBURG
Joint

Item no.: A1-24874 ยท 1 pcs

Available to order
Price on request
30
AARDENBURG
Sleeve

Item no.: A1-24875 ยท 2 pcs

Available to order
Price on request
31
AARDENBURG Popular part
Bearing-2Z

Item no.: A1-24876 ยท 1 pcs

Available to order
Price on request
32
AARDENBURG
Lock nut

Item no.: A1-24801 ยท 1 pcs

Available to order
Price on request
33
AARDENBURG
Handle

Item no.: A1-24877 ยท 1 pcs

Available to order
Price on request
34
AARDENBURG
Pin

Item no.: A1-24878 ยท 1 pcs

Available to order
Price on request
35
AARDENBURG
Pin

Item no.: A1-24775 ยท 1 pcs

Available to order
Price on request
36
AARDENBURG
Nut

Item no.: A1-24879 ยท 10 pcs

Available to order
Price on request
37
AARDENBURG
Plain washer

Item no.: A1-24781 ยท 10 pcs

Available to order
Price on request
38
AARDENBURG
Plate

Item no.: A1-24880 ยท 2 pcs

Available to order
Price on request
39
AARDENBURG
Bolt

Item no.: A1-24805 ยท 1 pcs

Available to order
Price on request
40
AARDENBURG
Bolt

Item no.: A1-24881 ยท 10 pcs

Available to order
Price on request
41
AARDENBURG
Plate

Item no.: A1-24882 ยท 1 pcs

Available to order
Price on request

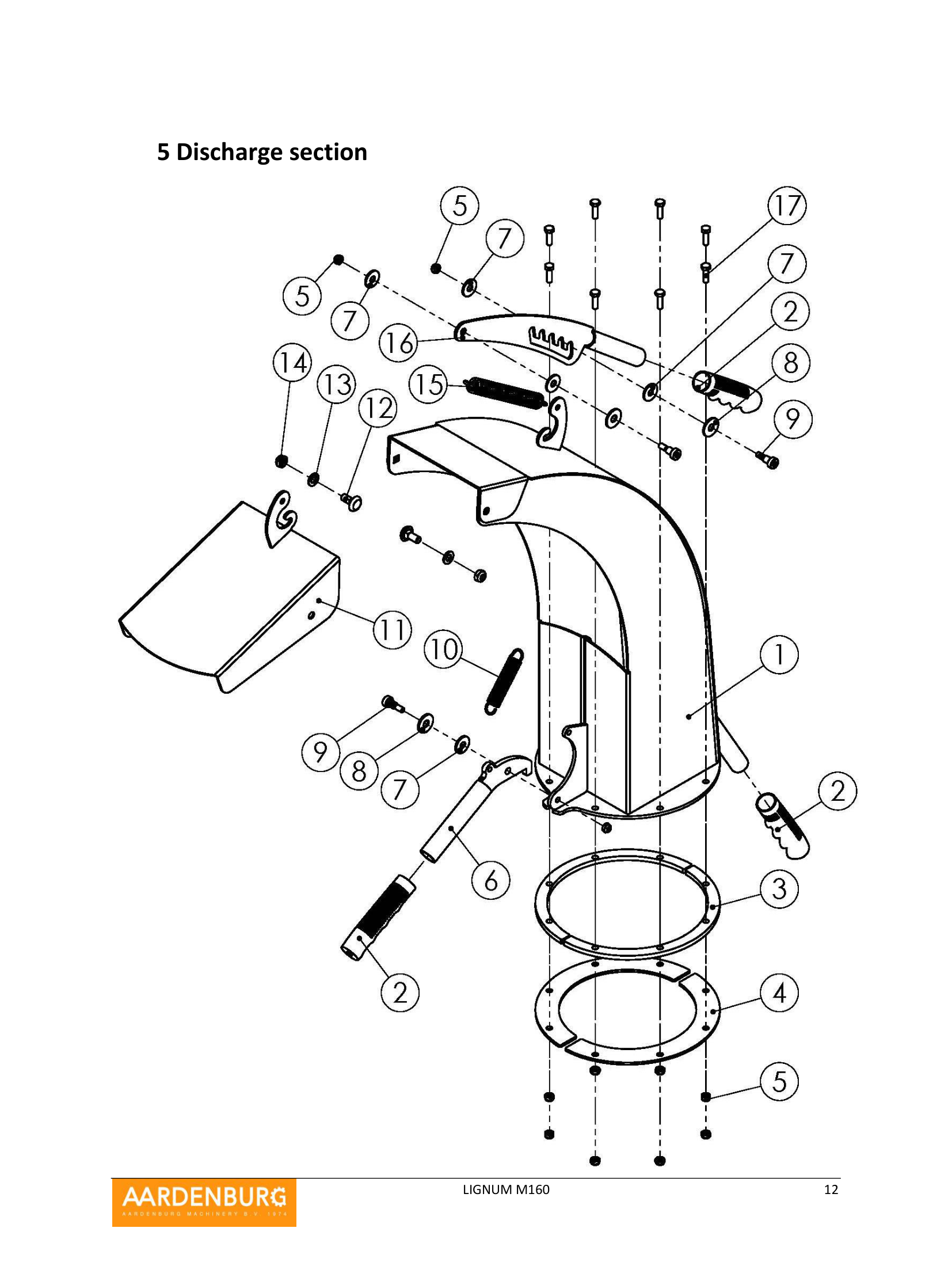

1
AARDENBURG
Discharge bucket

Item no.: A1-24883 ยท 1 pcs

Available to order
Price on request
2
AARDENBURG
Handle Cover

Item no.: A1-24884 ยท 3 pcs

Available to order
Price on request
3
AARDENBURG
Baffle

Item no.: A1-24885 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Plate

Item no.: A1-24886 ยท 2 pcs

Available to order
Price on request
5
AARDENBURG
Lock nut

Item no.: A1-24887 ยท 11 pcs

Available to order
Price on request
6
AARDENBURG
Handle

Item no.: A1-24888 ยท 1 pcs

Available to order
Price on request
7
AARDENBURG
Nylon washer 8

Item no.: A1-24859 ยท 5 pcs

Available to order
Price on request
8
AARDENBURG
Larger plain washer

Item no.: A1-24863 ยท 3 pcs

Available to order
Price on request
9
AARDENBURG
Bolt 8X10-M6

Item no.: A1-24889 ยท 3 pcs

Available to order
Price on request
10
AARDENBURG
Tension spring

Item no.: A1-24748 ยท 1 pcs

Available to order
Price on request
11
AARDENBURG
Protective cover weldment

Item no.: A1-24890 ยท 1 pcs

Available to order
Price on request
12
AARDENBURG
Bolt

Item no.: A1-24891 ยท 2 pcs

Available to order
Price on request
13
AARDENBURG
Plain washer

Item no.: A1-24781 ยท 2 pcs

Available to order
Price on request
14
AARDENBURG
Lock nut

Item no.: A1-24765 ยท 2 pcs

Available to order
Price on request
15
AARDENBURG
Tension spring

Item no.: A1-24678 ยท 1 pcs

Available to order
Price on request
16
AARDENBURG
Plate

Item no.: A1-24892 ยท 1 pcs

Available to order
Price on request
17
AARDENBURG
Bolt

Item no.: A1-24893 ยท 8 pcs

Available to order
Price on request

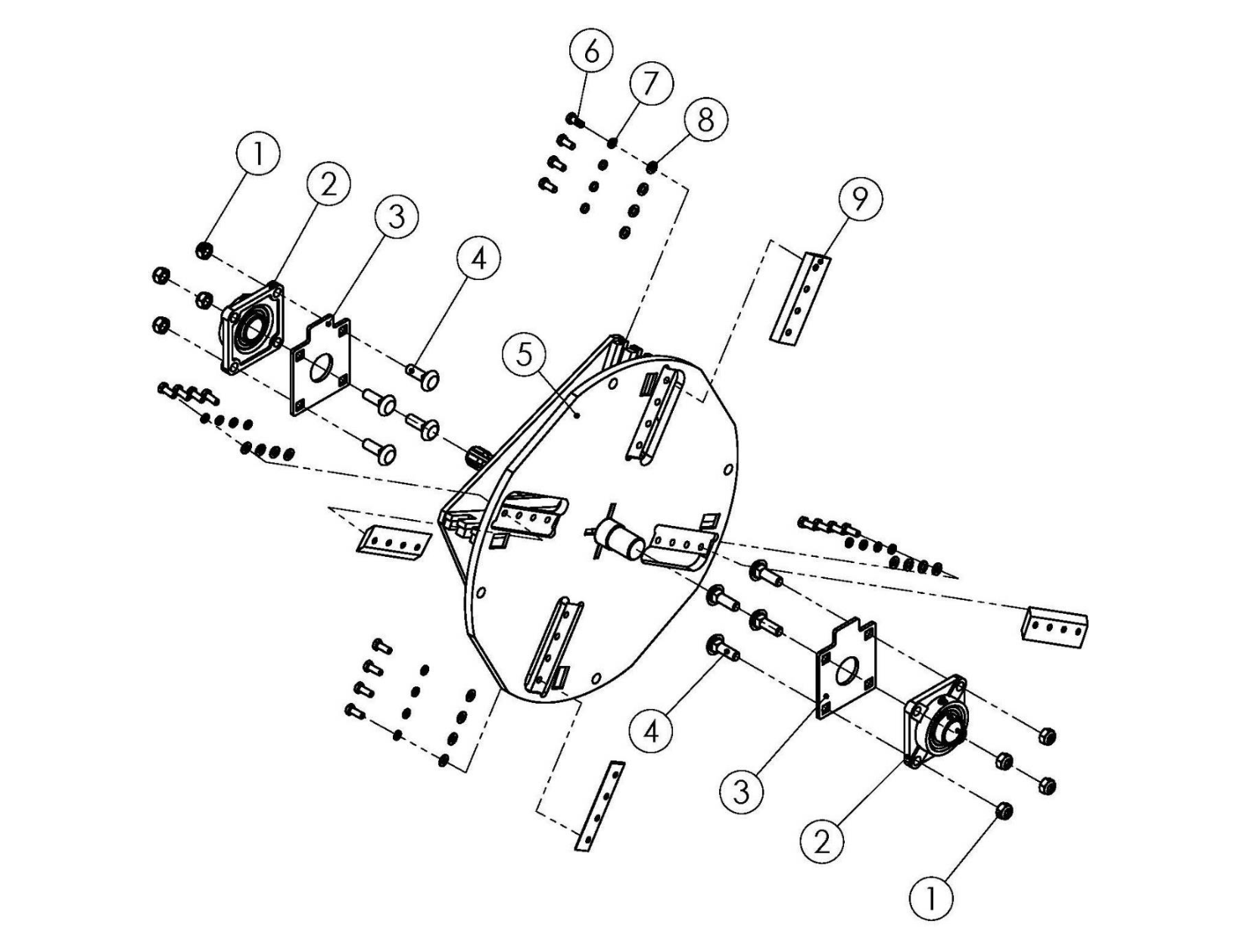

1
AARDENBURG
Lock nut

Item no.: A1-24894 ยท 8 pcs

Available to order
Price on request
2
AARDENBURG Popular part
Bearing UCF208(R1/8)

Item no.: A1-24849 ยท 2 pcs

Available to order
Price on request
3
AARDENBURG
Plate

Item no.: A1-24896 ยท 2 pcs

Available to order
Price on request
4
AARDENBURG
Bolt

Item no.: A1-24897 ยท 8 pcs

Available to order
Price on request
5
AARDENBURG
Flywheel weldment

Item no.: A1-24898 ยท 1 pcs

Available to order
Price on request
6
AARDENBURG
Bolt

Item no.: A1-24899 ยท 16 pcs

Available to order
Price on request
7
AARDENBURG
Spring washer

Item no.: A1-24900 ยท 16 pcs

Available to order
Price on request
8
AARDENBURG
Plain washer

Item no.: A1-24901 ยท 16 pcs

Available to order
Price on request
9
AARDENBURG Popular part
Moving blade

Item no.: A1-24902 ยท 4 pcs

Available to order
Price on request

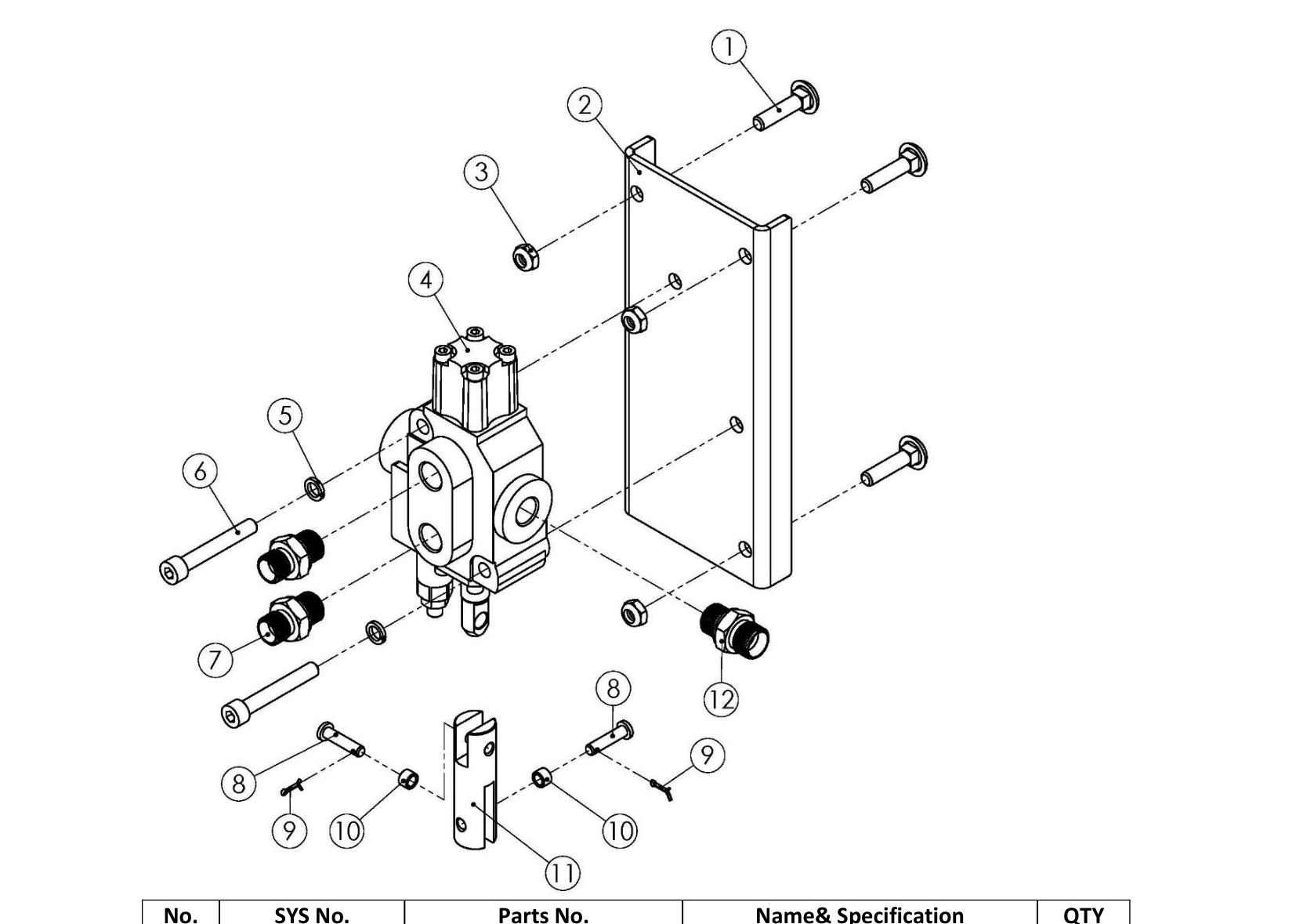

1
AARDENBURG
Bolt

Item no.: A1-24903 ยท 3 pcs

Available to order
Price on request
2
AARDENBURG
Valve seat

Item no.: A1-24904 ยท 1 pcs

Available to order
Price on request
3
AARDENBURG
Lock Nut

Item no.: A1-24905 ยท 3 pcs

Available to order
Price on request
4
AARDENBURG
Single valve

Item no.: A1-24906 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Spring washer

Item no.: A1-24785 ยท 2 pcs

Available to order
Price on request
6
AARDENBURG
Screw

Item no.: A1-24907 ยท 2 pcs

Available to order
Price on request
7
AARDENBURG
Joint M16X1.5

Item no.: A1-24908 ยท 2 pcs

Available to order
Price on request
8
AARDENBURG
Pin shaft

Item no.: A1-24909 ยท 2 pcs

Available to order
Price on request
9
AARDENBURG
Cotter Pin

Item no.: A1-24910 ยท 2 pcs

Available to order
Price on request
10
AARDENBURG
Roller

Item no.: A1-24911 ยท 2 pcs

Available to order
Price on request
11
AARDENBURG
Pull rod

Item no.: A1-24912 ยท 1 pcs

Available to order
Price on request
12
AARDENBURG
Joint M18X1.5

Item no.: A1-24913 ยท 1 pcs

Available to order
Price on request

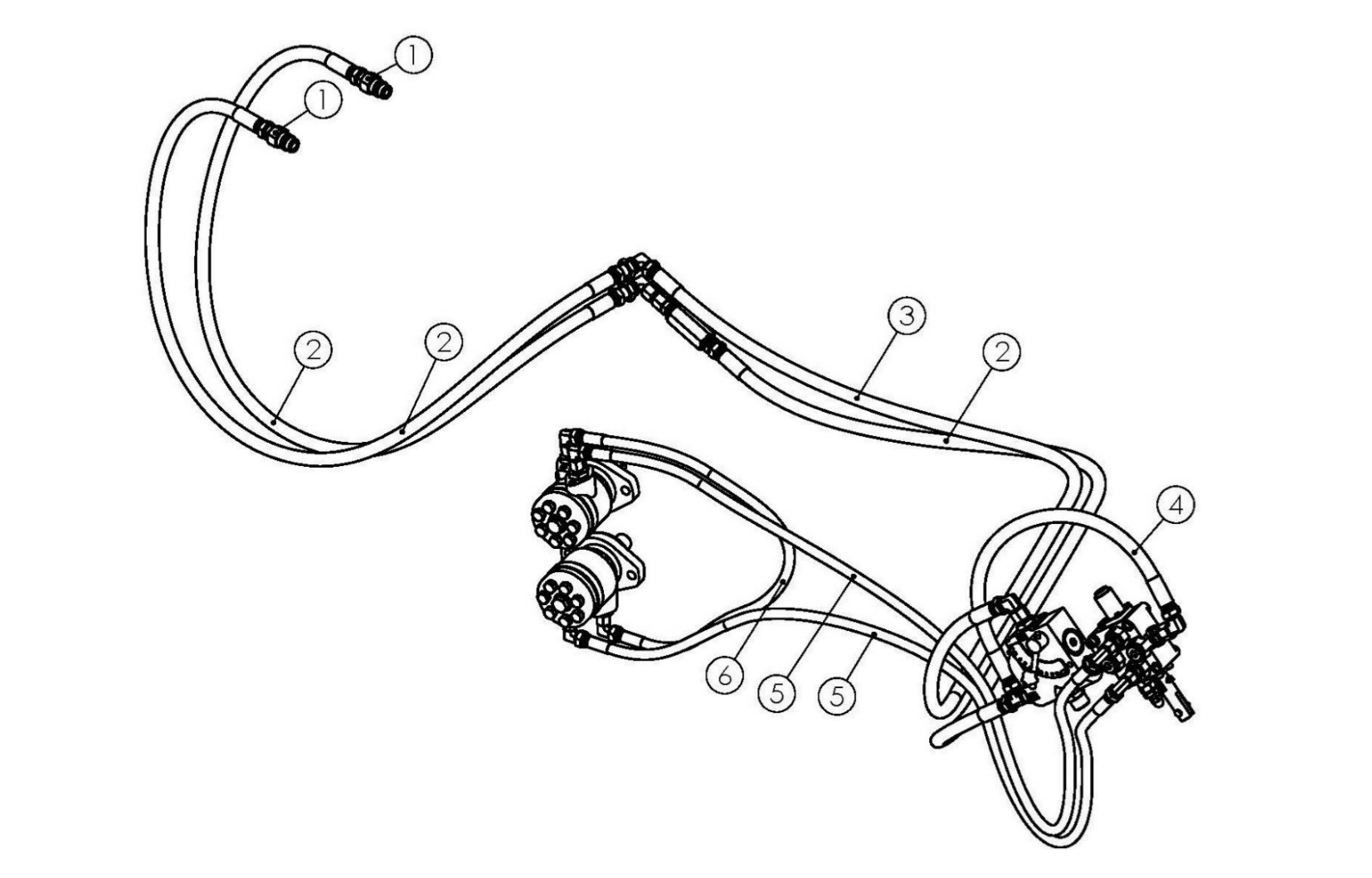

1
AARDENBURG
Quick joint G1/2

Item no.: A1-24914 ยท 2 pcs

Available to order
Price on request
2
AARDENBURG
Return oil pipe

Item no.: A1-24915 ยท 3 pcs

Available to order
Price on request
3
AARDENBURG
Oil supply pipe

Item no.: A1-24916 ยท 1 pcs

Available to order
Price on request
4
AARDENBURG
Valve oil return pipe

Item no.: A1-24917 ยท 1 pcs

Available to order
Price on request
5
AARDENBURG
Pipe from valve to motor

Item no.: A1-24918 ยท 2 pcs

Available to order
Price on request
6
AARDENBURG
Inner motor oil pipe

Item no.: A1-24919 ยท 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
