AARDENBURG X-Delta Orbit S 1000

Mulcher for excavators 100 cm

Please call to confirm with our colleague.

home
In stock
local_shipping
Delivery time:
3-7 days

Choose billing country

expand_more

Product price

2,600 EUR

  • Price excl. VAT
    2,600 EUR
  • Price include VAT 27%
    3,302 EUR

pcs

+
Validate
info

Click on the button to validate your referral code.

local_offer Request a quote
Pay with PayPal paypal logo
SimplePay payment simplepay logo
Pay by Bank Transfer from Proforma account_balance

circle Parameters

Name
Unit
Working width
1000 mm
Hammer PCs
16 pcs
V-Belts
3 pcs
Width
1180 mm
Length
860 mm
Height
640 mm
Weight
380 kg
Oil flow
70-100 l/min
Oil pressure
200-220 bar

An extremely robust and robust machine, an excellent choice for heavy-duty stem crushing and forestry work. The machine has working widths of 1000 and 1200 mm. It is equipped with 360° rotating forestry hammers.



The special design of the hammer holder lugs allows professional chipping with extreme durability.

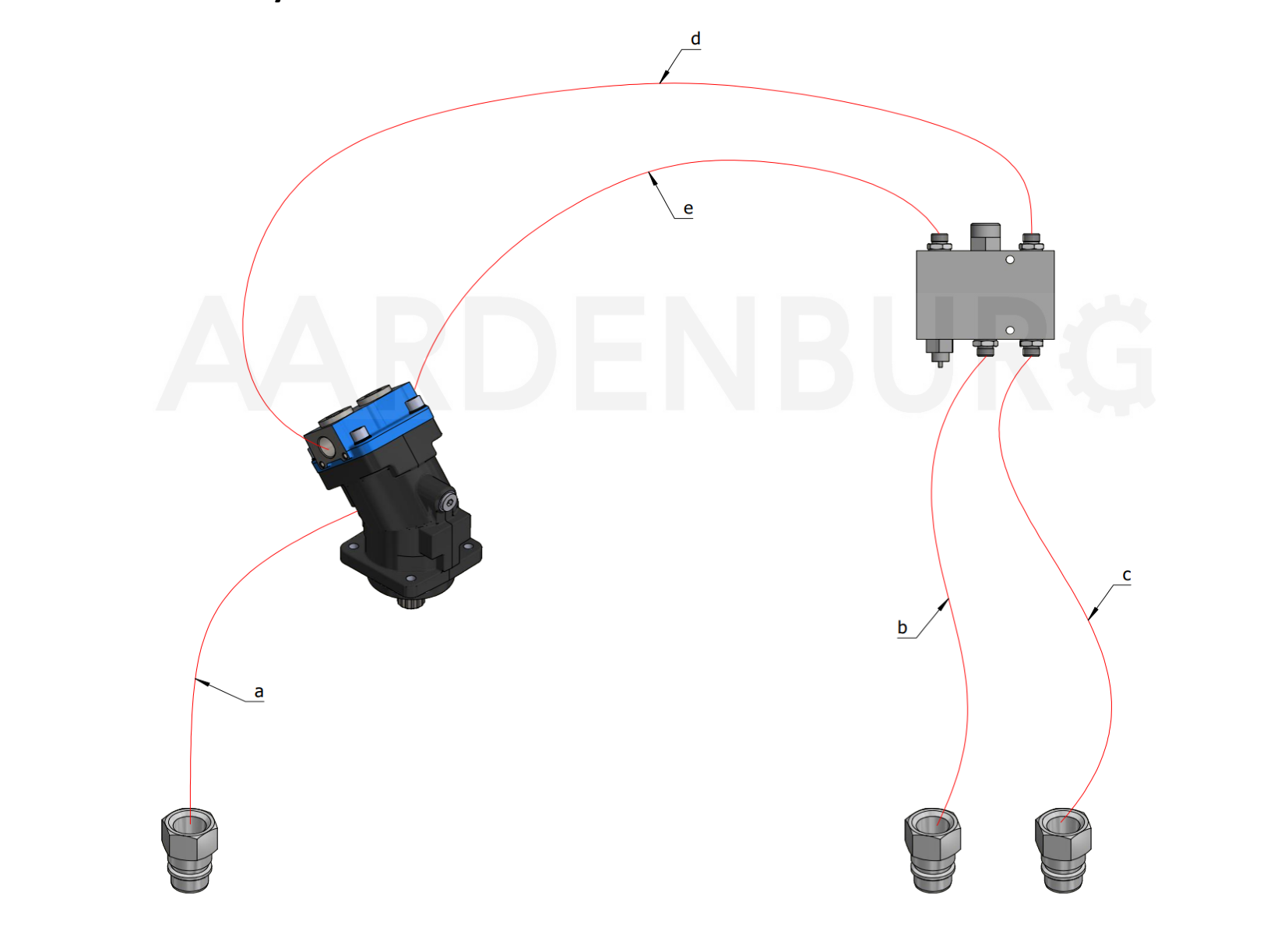

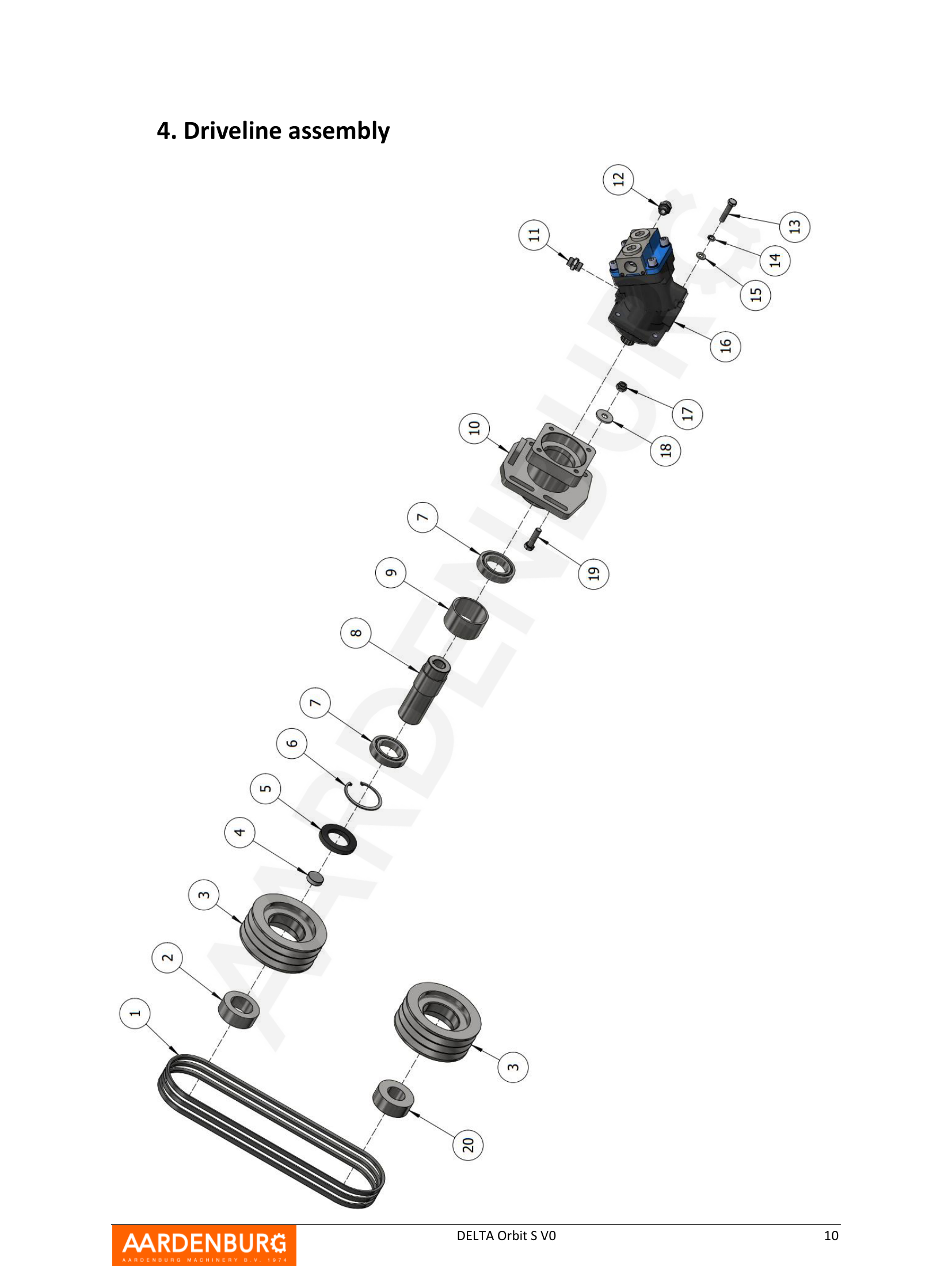

It is equipped with a hydraulically driven, double-piston hydraulic motor and V-belt transmission.



For safe and reliable operation, 220 bar oil pressure and 70-100 l/min oil flow are required.

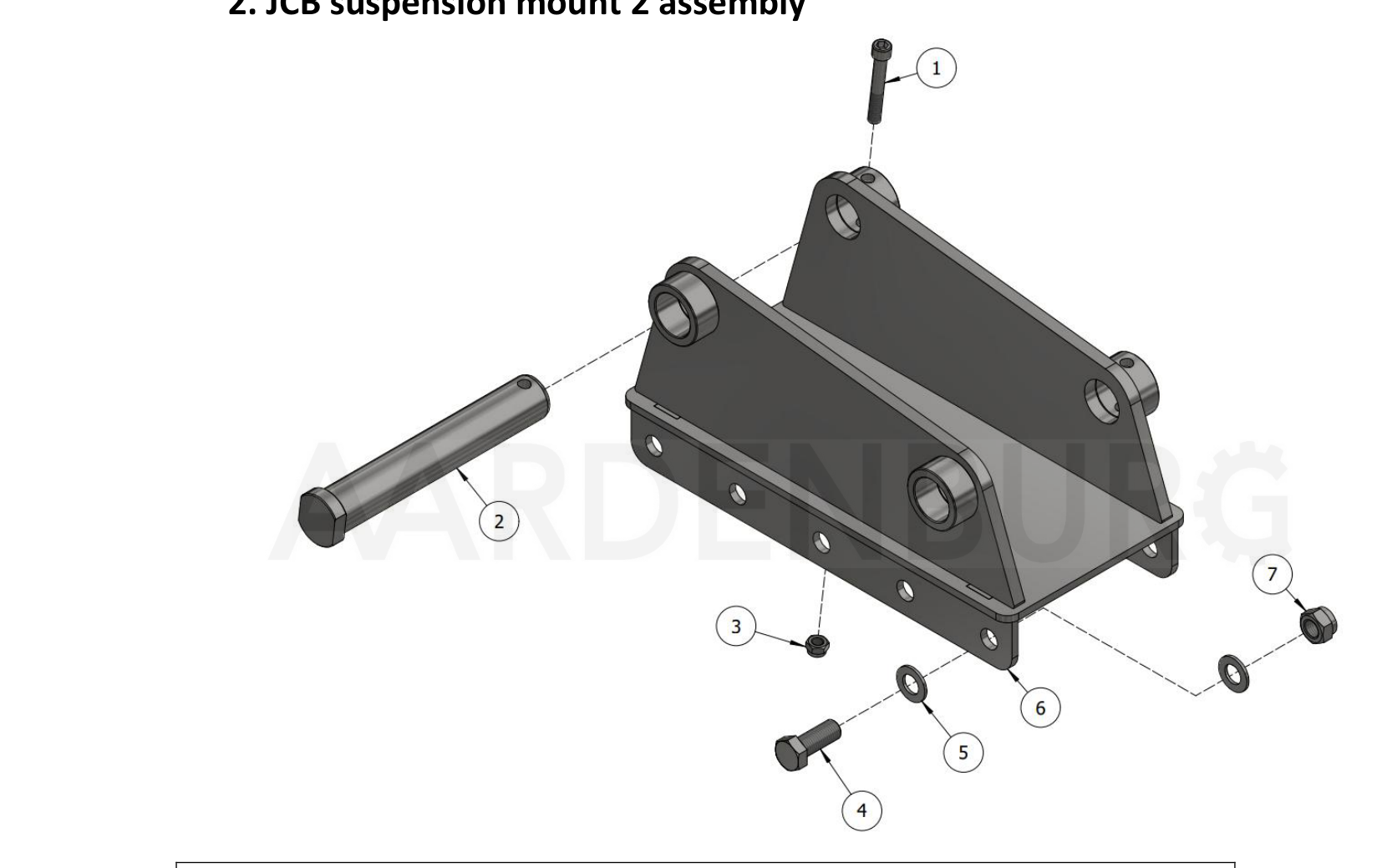

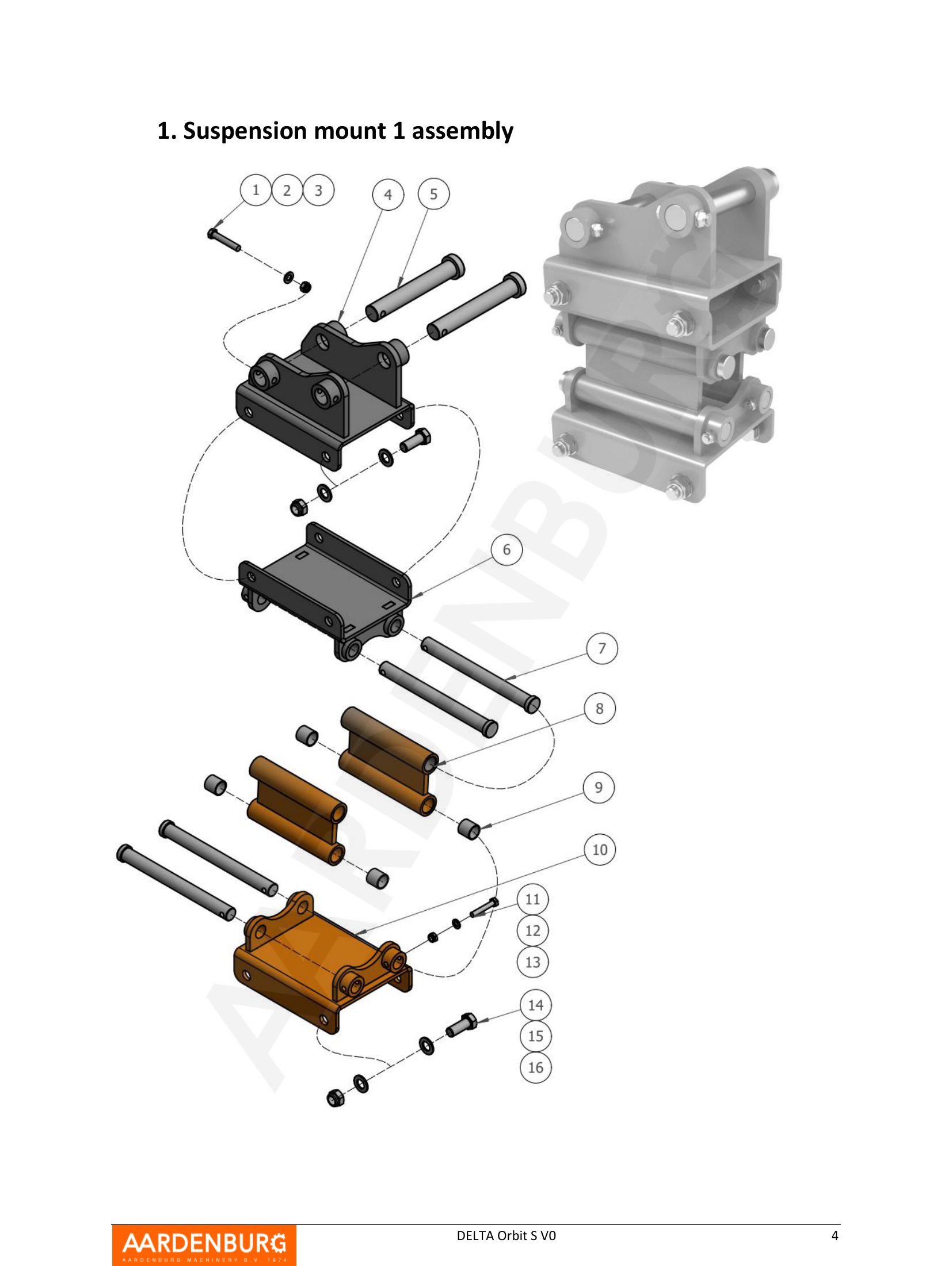

It is equipped with 2 different types of mechanical couplings, making it a universal machine, making it much easier for the average user to connect to the excavator.



  • - Reversible 2-edge hammers

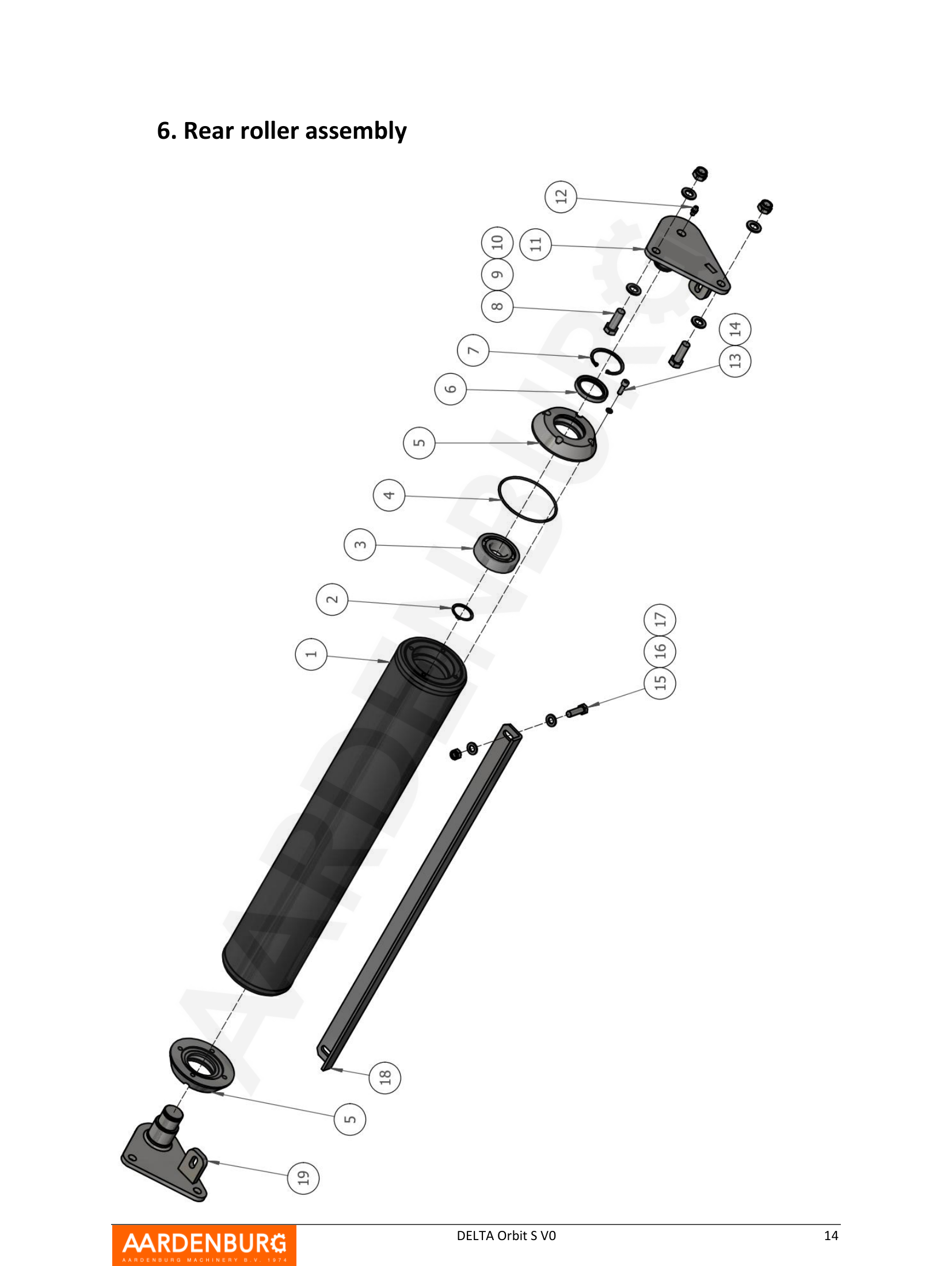

  • - Rear tracking roller
  • - Adjustable height skid pads
  • - Front safety chains to protect against spillage
  • - Pressure relief valve
  • - Fitted with SKF bearing bracket
  • - Hammer axle speed: 2000
  • -2200 rpm
  • - Number of universal connections: 3 (all included in the standard price)
  • - Lateral adjustment
  • - High wall thickness and extra reinforcements, robust construction
  • - Cutting diameter: 8-12 cm
