AARDENBURG

X-Delta Orbit S 1200, Mulcher for excavators 120 cm

In stock 0.0 0 reviews Item no.: A01-9417

Parameters

Working width
1200 mm
V-Belts
3 pcs
Width
1380 mm
Length
860 mm
Height
640 mm
Weight
414 kg
Oil flow
70-100 l/min
Oil pressure
200-220 bar
Hammer PCs
20 pcs

Description

An extremely robust and robust machine, an excellent choice for heavy-duty stem crushing and forestry work. The machine has working widths of 1000 and 1200 mm. It is equipped with 360° rotating forestry hammers.

The special design of the hammer holder lugs allows professional chipping with extreme durability.

It is equipped with a hydraulically driven, double-piston hydraulic motor and V-belt transmission.

For safe and reliable operation, 220 bar oil pressure and 70-100 l/min oil flow are required.

It is equipped with 2 different types of mechanical couplings, making it a universal machine, making it much easier for the average user to connect to the excavator.

  • - Reversible 2-edge hammers
  • - Rear tracking roller
  • - Adjustable height skid pads
  • - Front safety chains to protect against spillage
  • - Pressure relief valve
  • - Fitted with SKF bearing bracket
  • - Hammer axle speed: 2000
  • -2200 rpm
  • - Number of universal connections: 3 (all included in the standard price)
  • - Lateral adjustment
  • - High wall thickness and extra reinforcements, robust construction
  • - Cutting diameter: 8-12 cm

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com — our colleagues reply within 2-4 hours!

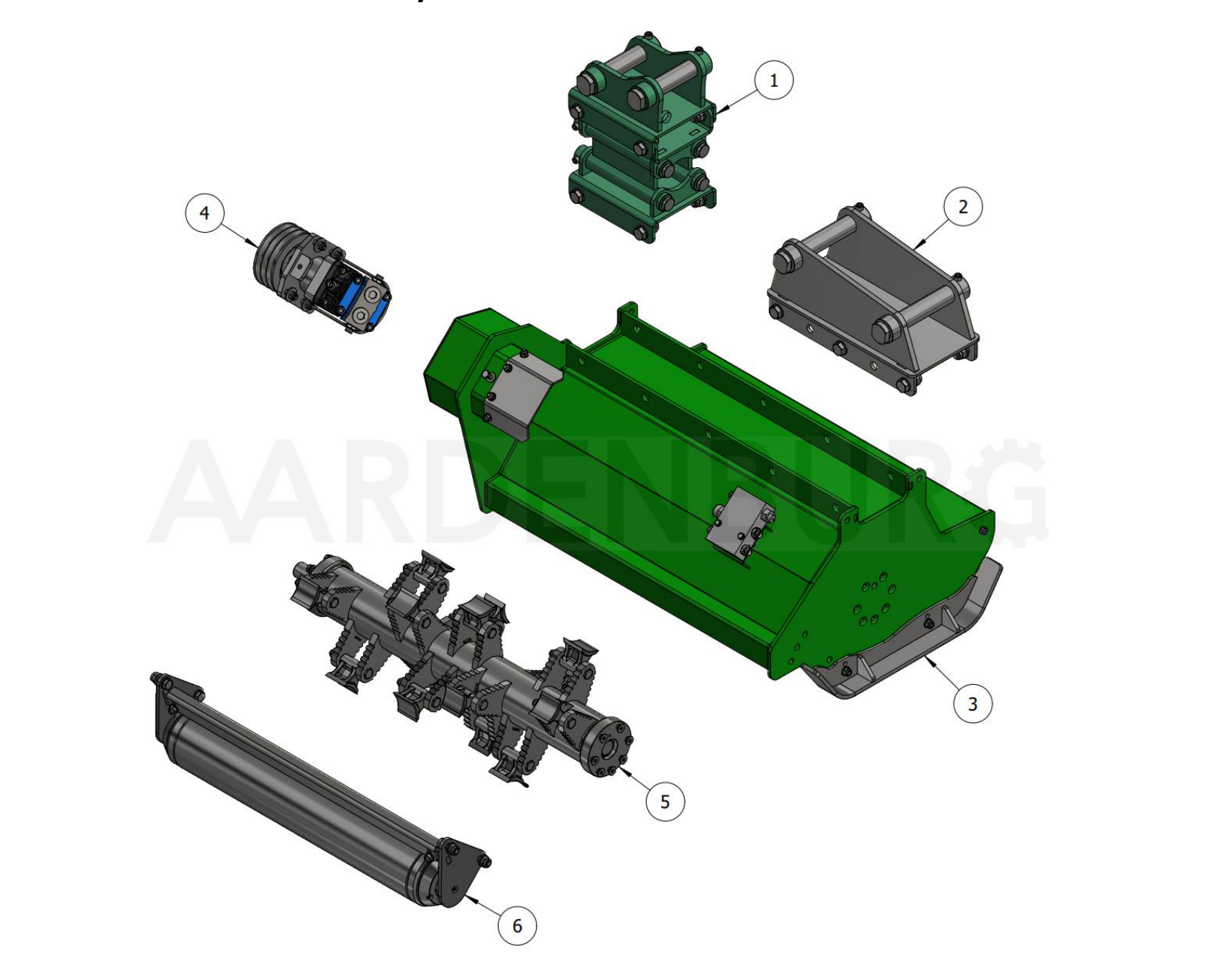

Exploded view


Diagrams

1
AARDENBURG

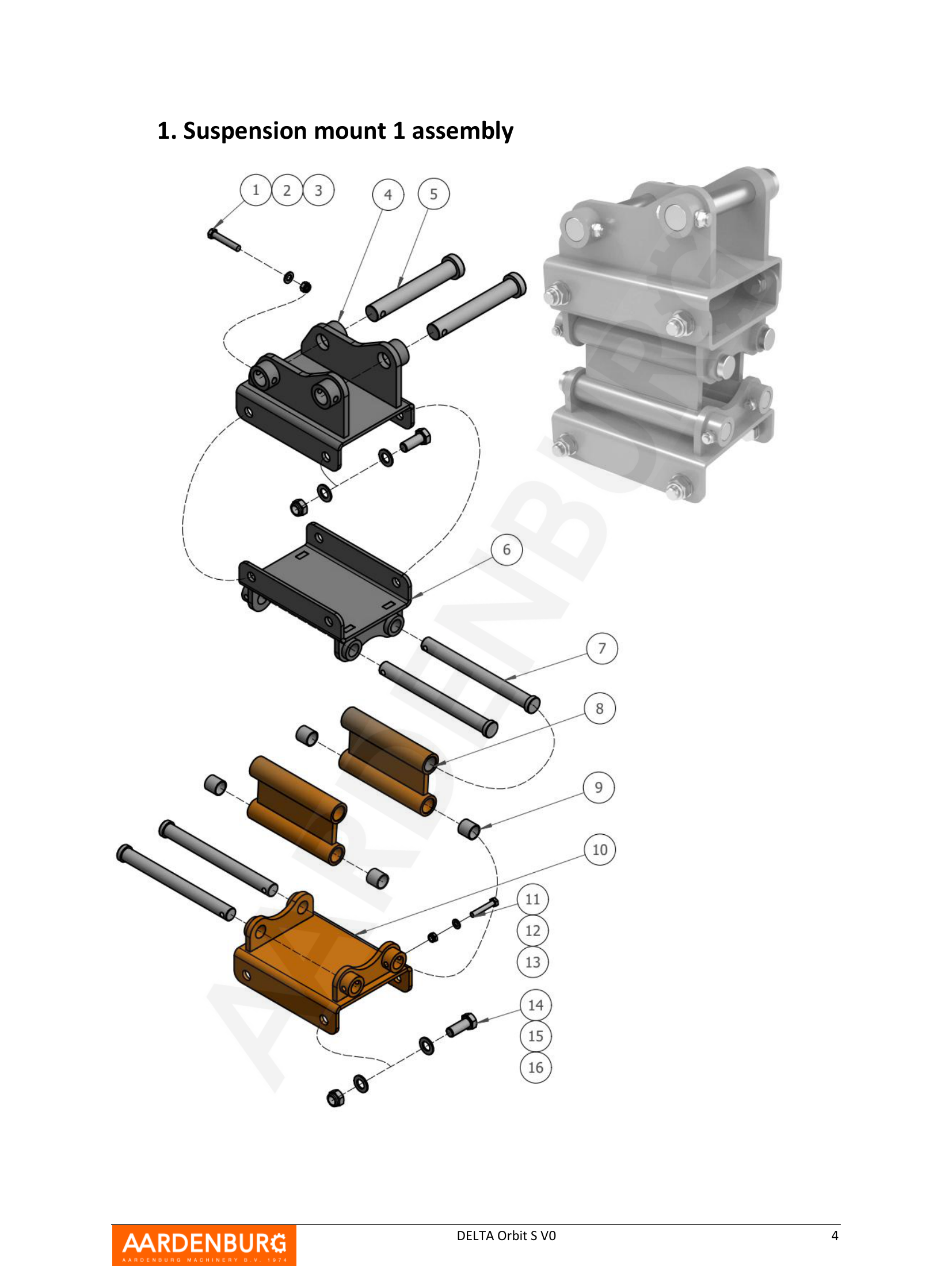

Suspension mount 1 assembly

Item no.: A1-28327 · 1 pcs

Available to order
Price on request
2
AARDENBURG

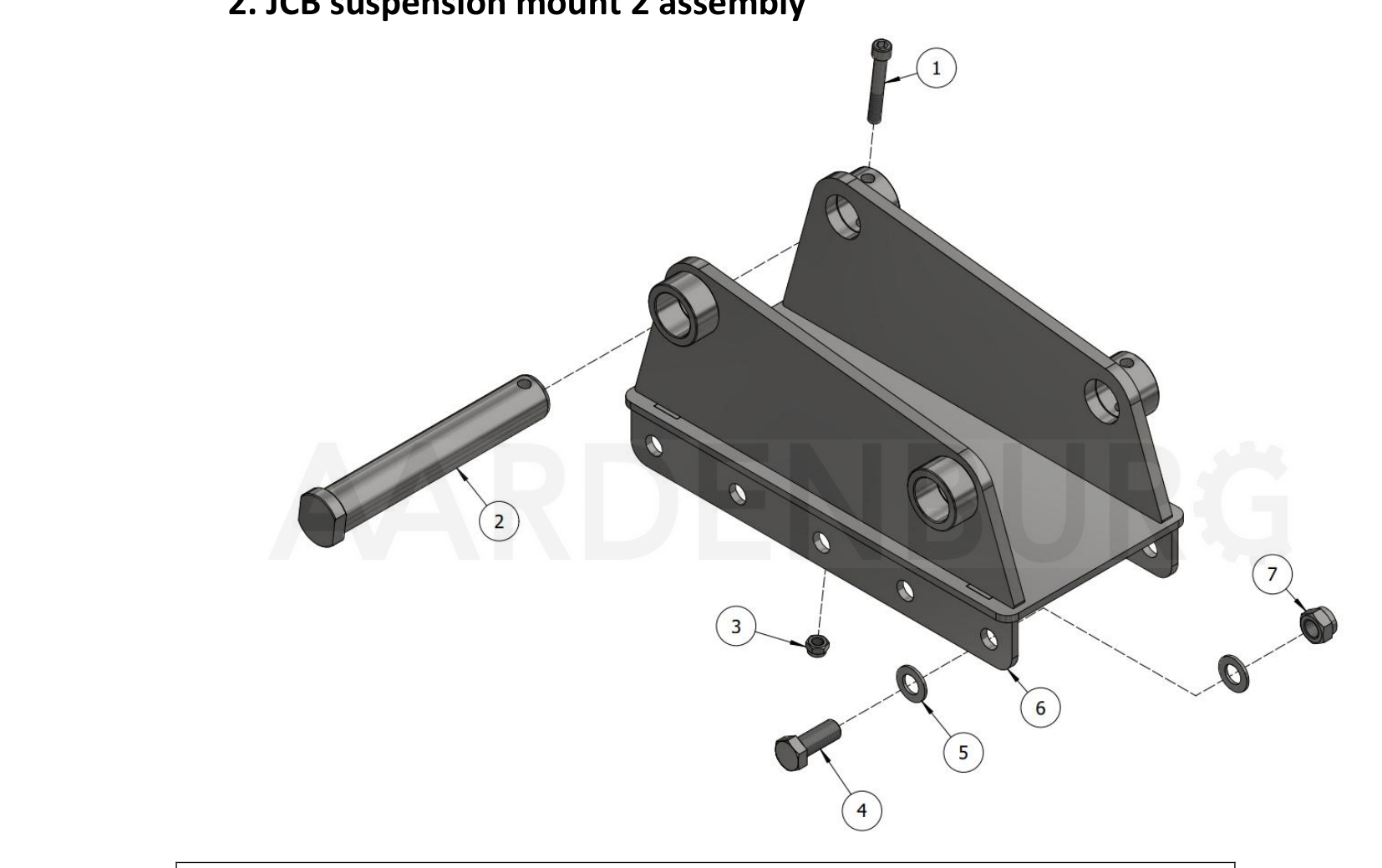

JCB suspension mount assembly

Item no.: A1-28328 · 1 pcs

Available to order
Price on request
3
AARDENBURG

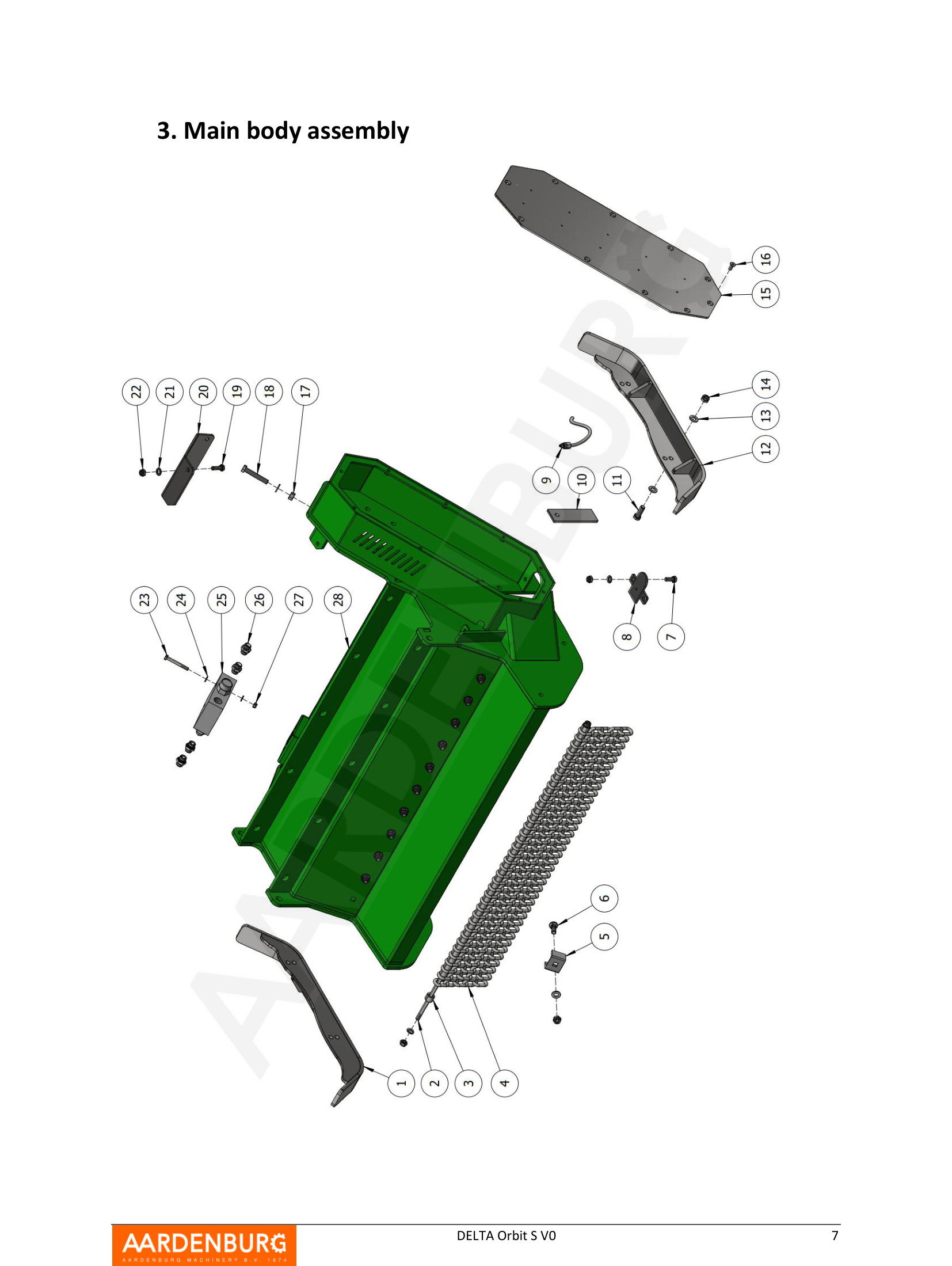

Main body assembly

Item no.: A1-28329 · 1 pcs

Available to order
Price on request
4
AARDENBURG

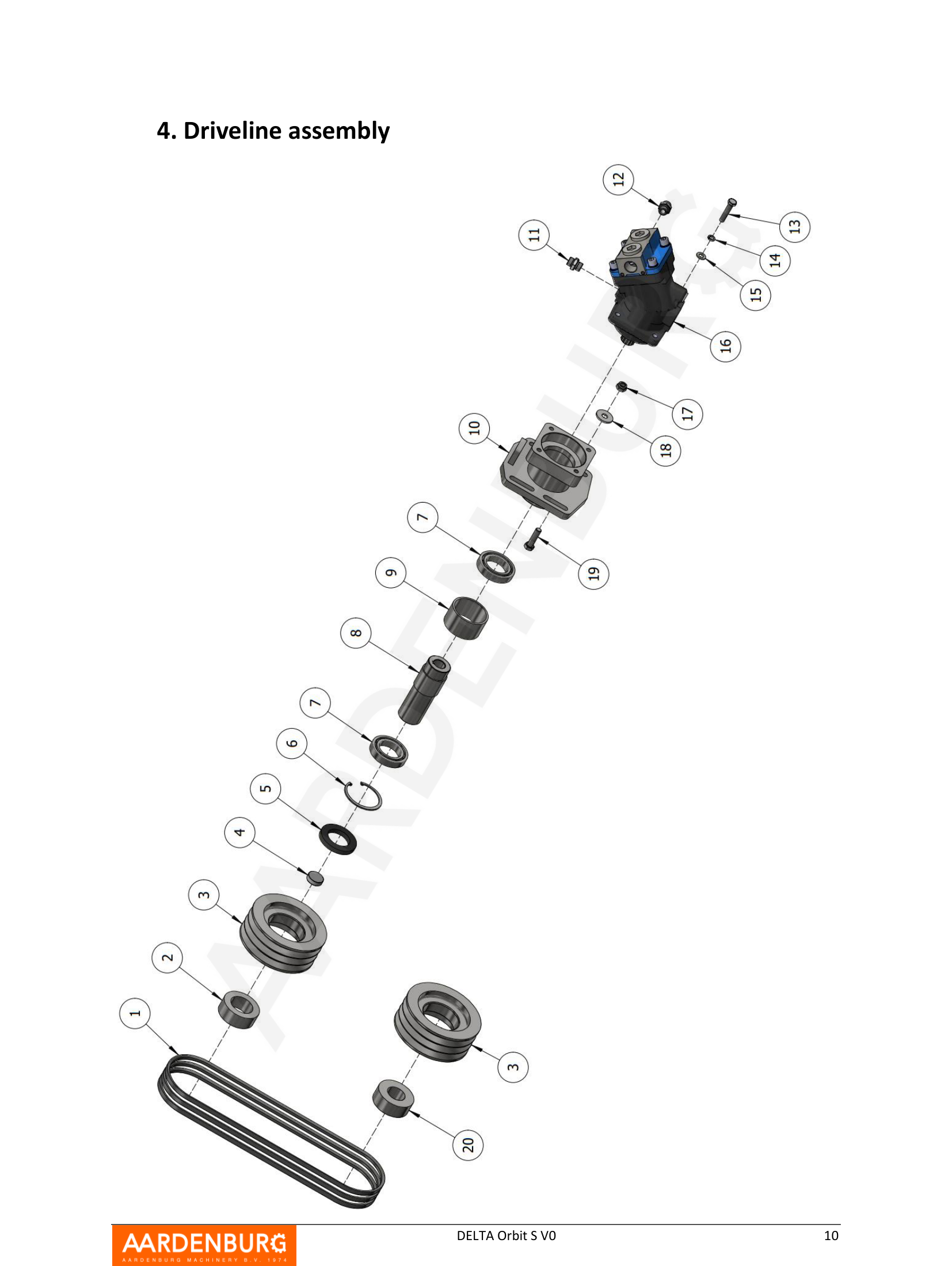

Driveline assembly

Item no.: A1-28330 · 1 pcs

Available to order
Price on request
5
AARDENBURG

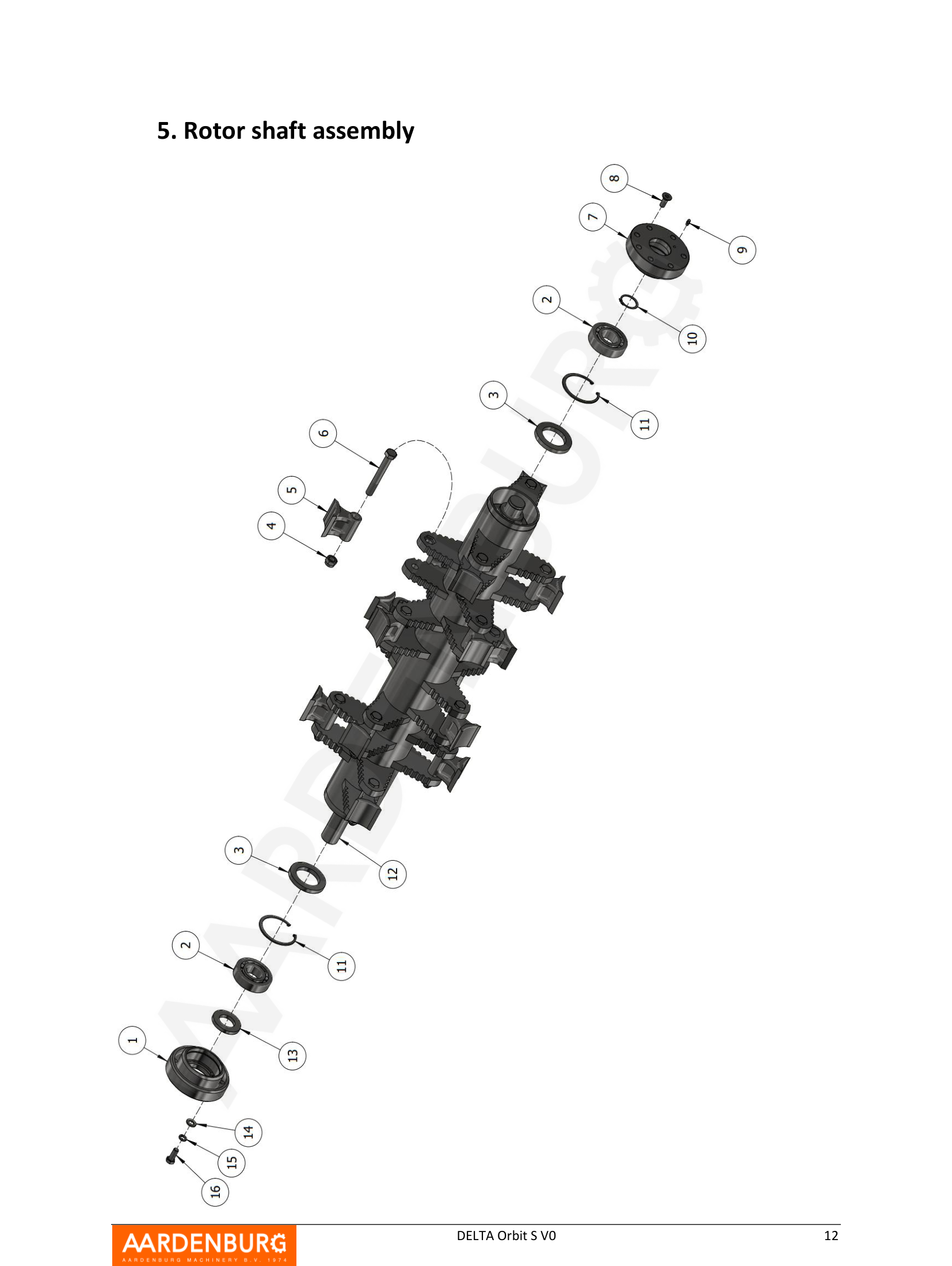

Rotor shaft assembly

Item no.: A1-28331 · 1 pcs

Available to order
Price on request
6
AARDENBURG

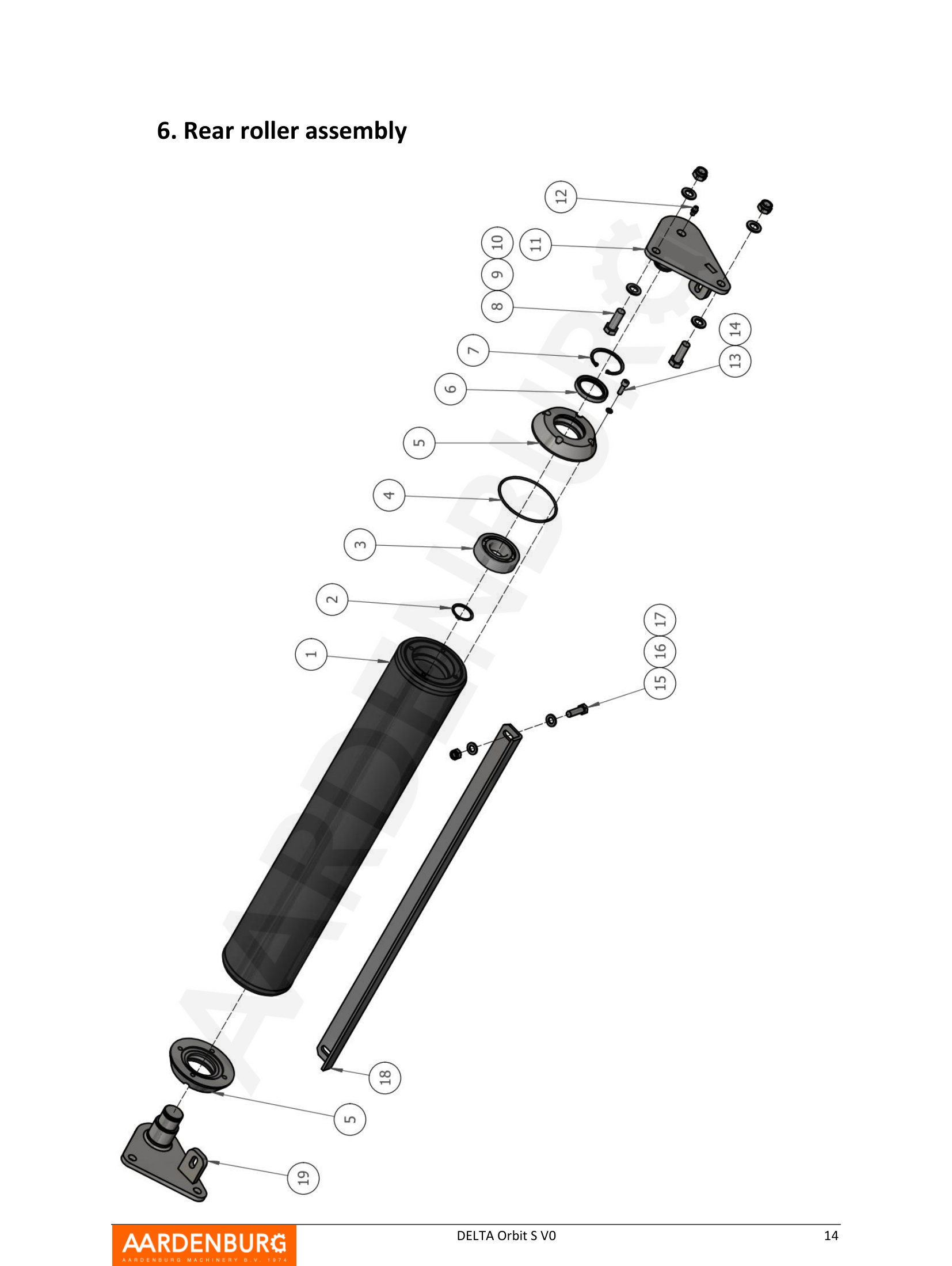

Trailing roller

Item no.: A1-28332 · 1 pcs

Available to order
Price on request
7
AARDENBURG

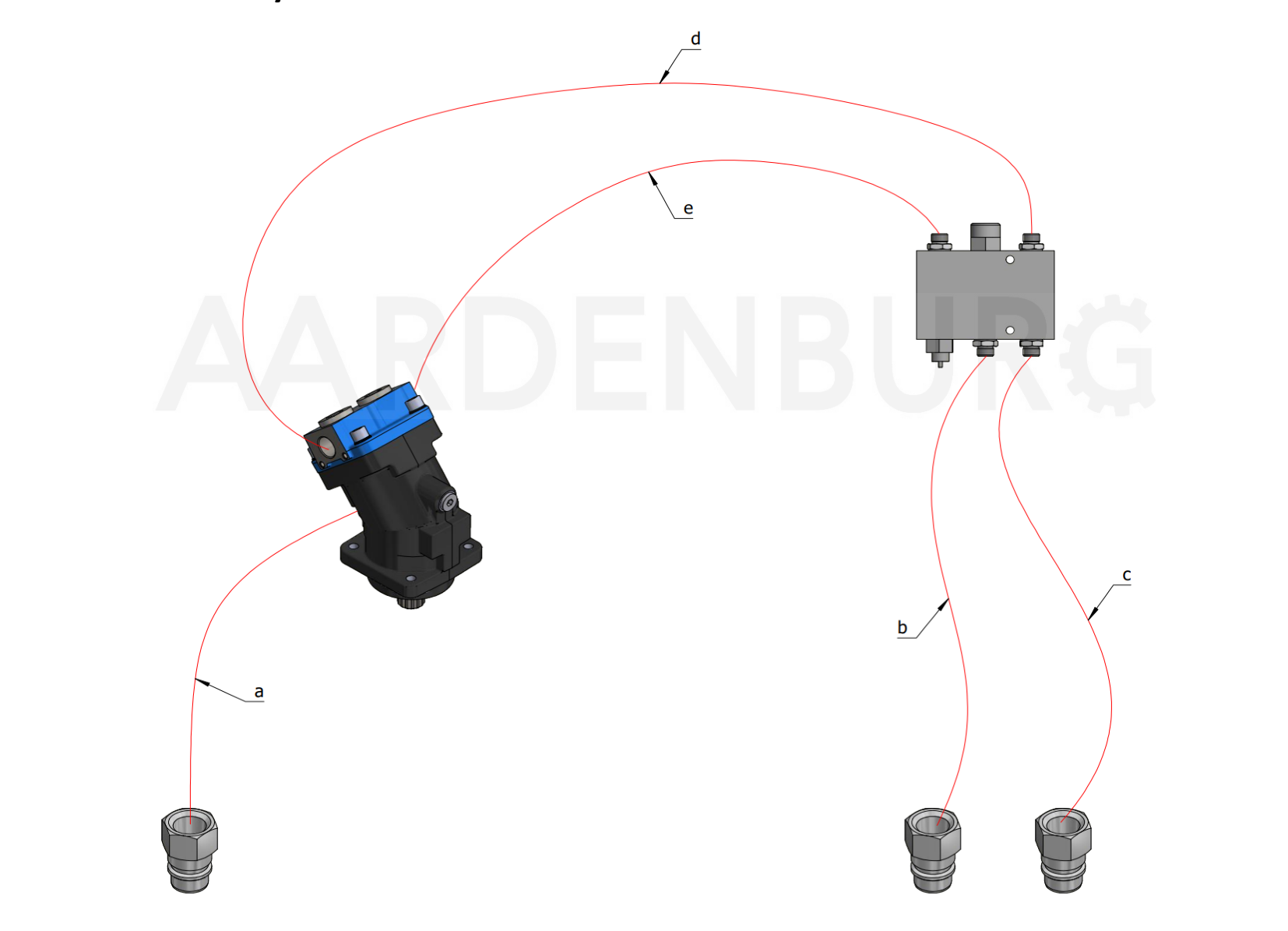

Hydraulic connections (not on drawing)

Item no.: A1-28333 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Bolt M12 x 70

Item no.: A1-28334 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Connecting seat

Item no.: A1-28337 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Bucket pin

Item no.: A1-28338 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Upper swing frame seat

Item no.: A1-28339 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Swing frame shaft

Item no.: A1-28340 · 4 pcs

Available to order
Price on request
8
AARDENBURG
Swing frame arm

Item no.: A1-28341 · 2 pcs

Available to order
Price on request
9 Plain bearing 28 x 32 x 30
AARDENBURG
Plain bearing 28 x 32 x 30

Item no.: A1-28342 · 8 pcs

Available to order
Price on request
10
AARDENBURG
Lower swing frame seat

Item no.: A1-28343 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M10 x 60

Item no.: A1-28344 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 4 pcs

Available to order
Price on request
13
AARDENBURG
Lock nut M10

Item no.: A1-28346 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M20 x 45

Item no.: A1-28347 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Flat washer 20

Item no.: A1-28348 · 16 pcs

Available to order
Price on request
16
AARDENBURG
Lock nut M20

Item no.: A1-28349 · 8 pcs

Available to order
Price on request
1
AARDENBURG
Allen bolt M12 x 80

Item no.: A1-28350 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Locking pin JCB

Item no.: A1-28351 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M20 x 50

Item no.: A1-28352 · 6 pcs

Available to order
Price on request
5
AARDENBURG
Flat washer 20

Item no.: A1-28348 · 12 pcs

Available to order
Price on request
6
AARDENBURG
JCB lower Suspension

Item no.: A1-28353 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Lock nut M20

Item no.: A1-28349 · 6 pcs

Available to order
Price on request
1
AARDENBURG
Skid right side

Item no.: A1-28354 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod Delta S 1000

Item no.: A1-28355 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod Delta S 1200

Item no.: A1-28356 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Delta S 1000

Item no.: A1-28357 · 40 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Delta S 1200

Item no.: A1-28358 · 48 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain 5 sections Delta S 1000

Item no.: A1-28359 · 42 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain 5 sections Delta S 1200

Item no.: A1-28360 · 50 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Delta S 1000

Item no.: A1-28361 · 11 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Delta S 1200

Item no.: A1-28362 · 13 pcs

Available to order
Price on request
6
AARDENBURG
Carriage M12 x 30 Delta S 1000

Item no.: A1-28363 · 11 pcs

Available to order
Price on request
6
AARDENBURG
Carriage M12 x 30 Delta S 1200

Item no.: A1-28364 · 13 pcs

Available to order
Price on request
7
AARDENBURG
Bolt M10 x 25

Item no.: A1-28207 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Locking plate bottom

Item no.: A1-28365 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Grease hose

Item no.: A1-28366 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Locking plate side wall

Item no.: A1-28367 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M12 x 35

Item no.: A1-28368 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Skid left side

Item no.: A1-28369 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 20 pcs

Available to order
Price on request
14
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 15 pcs

Available to order
Price on request
15
AARDENBURG
Cover plate

Item no.: A1-28370 · 1 pcs

Available to order
Price on request
16
AARDENBURG
Allen bolt M8 x 20

Item no.: A1-28371 · 10 pcs

Available to order
Price on request
17
AARDENBURG
Nut M12

Item no.: A1-28372 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Bolt M12 x 70

Item no.: A1-28334 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M10 x 30

Item no.: A1-28373 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Shield

Item no.: A1-28374 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 8 pcs

Available to order
Price on request
22
AARDENBURG
Lock nut M10

Item no.: A1-28375 · 8 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M8 x 65

Item no.: A1-28376 · 2 pcs

Available to order
Price on request
24
AARDENBURG
Flat washer 8

Item no.: A1-28377 · 4 pcs

Available to order
Price on request
25
AARDENBURG
Priority flow valve

Item no.: A1-28378 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Transition joint

Item no.: A1-28379 · 4 pcs

Available to order
Price on request
27
AARDENBURG
Lock nut M8

Item no.: A1-28380 · 2 pcs

Available to order
Price on request
28
AARDENBURG
Main housing 1000 Delta S 1000

Item no.: A1-28381 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Main housing 1200 Delta S 1200

Item no.: A1-28382 · 1 pcs

Available to order
Price on request
1 Belt 17 x 1168
AARDENBURG
Belt 17 x 1168

Item no.: A1-28383 · 3 pcs

Available to order
Price on request
2
AARDENBURG
Keyless bushing 50 x 80

Item no.: A1-28384 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Pulley driveline

Item no.: A1-28385 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Center cover

Item no.: A1-28386 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Oil seal FB 50 x 80 x 10

Item no.: A1-28387 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Circlip Inner 80

Item no.: A1-28388 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Connecting sleeve

Item no.: A1-28390 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Bearing seat spacer

Item no.: A1-28391 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Motor mount

Item no.: A1-28392 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Transition joint

Item no.: A1-28393 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Transition joint

Item no.: A1-28394 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Bolt M10 x 50

Item no.: A1-28395 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Spring washer 10

Item no.: A1-28396 · 4 pcs

Available to order
Price on request
15
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 4 pcs

Available to order
Price on request
16
AARDENBURG
Piston motor A2F28W2P1G

Item no.: A1-28397 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Locking nut M12

Item no.: A1-28398 · 4 pcs

Available to order
Price on request
18
AARDENBURG
Fender washer 12

Item no.: A1-28399 · 4 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M12 x 45

Item no.: A1-28400 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Keyless bushing 40 x 80

Item no.: A1-28401 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Bearing seat left side

Item no.: A1-28402 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Bearing 1308

Item no.: A1-28403 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Oil seal FB 60 x 90 x10

Item no.: A1-28404 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Locking nut M16 Delta S 1000

Item no.: A1-28405 · 16 pcs

Available to order
Price on request
4
AARDENBURG
Locking nut M16 Delta S 1200

Item no.: A1-28406 · 20 pcs

Available to order
Price on request
5 Hammer Delta S 1000
AARDENBURG
Hammer Delta S 1000

Item no.: A1-28407 · 16 pcs

In stock
29,00 EUR +VAT
5 Hammer Delta S 1000
AARDENBURG
Hammer Delta S 1000

Item no.: A1-28407 · 20 pcs

In stock
29,00 EUR +VAT
6
AARDENBURG
Bolt M16 x 120 Delta S 1000

Item no.: A1-28409 · 16 pcs

Available to order
Price on request
6
AARDENBURG
Bolt M16 x 120 Delta S 1200

Item no.: A1-28410 · 20 pcs

Available to order
Price on request
7
AARDENBURG
Bearing seat right side

Item no.: A1-28411 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Allen bolt M12 x 30

Item no.: A1-28412 · 7 pcs

Available to order
Price on request
9
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Circlip Outer 40

Item no.: A1-28414 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Circlip Inner 90

Item no.: A1-28415 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Rotor 1000 Delta S 1000

Item no.: A1-28416 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Rotor 1200 Delta S 1200

Item no.: A1-28417 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Oil seal FB 40 x 70 x 8

Item no.: A1-28418 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 7 pcs

Available to order
Price on request
15
AARDENBURG
Spring washer 12

Item no.: A1-28419 · 7 pcs

Available to order
Price on request
16
AARDENBURG
Bolt M12 x 30

Item no.: A1-28420 · 7 pcs

Available to order
Price on request
1
AARDENBURG
Trailing roller 1000 Delta S 1000

Item no.: A1-28421 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Trailing roller 1200 Delta S 1200

Item no.: A1-28422 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Circlip outer 40

Item no.: A1-28423 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Bearing 6308

Item no.: A1-28424 · 2 pcs

Available to order
Price on request
4
AARDENBURG
O-ring 120 x 3.55

Item no.: A1-28425 · 2 pcs

Available to order
Price on request
5
AARDENBURG
Roller cover

Item no.: A1-28426 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Oil seal FB 50 x 68 x 8

Item no.: A1-28427 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Circlip inner 68

Item no.: A1-28428 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Bolt M16 x 45

Item no.: A1-28261 · 4 pcs

Available to order
Price on request
9
AARDENBURG
Flat washer 16

Item no.: A1-28429 · 8 pcs

Available to order
Price on request
10
AARDENBURG
Lock nut M16

Item no.: A1-28430 · 4 pcs

Available to order
Price on request
11
AARDENBURG
Roller bracket left side

Item no.: A1-28431 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Allen bolt M8 x 25

Item no.: A1-28432 · 8 pcs

Available to order
Price on request
14
AARDENBURG
Spring washer 8

Item no.: A1-28433 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Bolt M12 x 40

Item no.: A1-28271 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 4 pcs

Available to order
Price on request
17
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Scraper bar 1000 Delta S 1000

Item no.: A1-28434 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Scraper bar 1200 Delta S 1200

Item no.: A1-28435 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Roller bracket right side

Item no.: A1-28436 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 1

Item no.: A1-28437 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 2

Item no.: A1-28438 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 3

Item no.: A1-28439 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 4

Item no.: A1-28440 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 5

Item no.: A1-28441 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Suspension mount 1 assembly

Item no.: A1-28327 · 1 pcs

Available to order
Price on request
2
AARDENBURG
JCB suspension mount assembly

Item no.: A1-28328 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Main body assembly

Item no.: A1-28329 · 1 pcs

Available to order
Price on request
4
AARDENBURG
Driveline assembly

Item no.: A1-28330 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Rotor shaft assembly

Item no.: A1-28331 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Trailing roller

Item no.: A1-28332 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Hydraulic connections (not on drawing)

Item no.: A1-28333 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Bolt M12 x 70

Item no.: A1-28334 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Connecting seat

Item no.: A1-28337 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Bucket pin

Item no.: A1-28338 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Upper swing frame seat

Item no.: A1-28339 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Swing frame shaft

Item no.: A1-28340 · 4 pcs

Available to order
Price on request
8
AARDENBURG
Swing frame arm

Item no.: A1-28341 · 2 pcs

Available to order
Price on request
9 Plain bearing 28 x 32 x 30
AARDENBURG Popular part
Plain bearing 28 x 32 x 30

Item no.: A1-28342 · 8 pcs

Available to order
Price on request
10
AARDENBURG
Lower swing frame seat

Item no.: A1-28343 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M10 x 60

Item no.: A1-28344 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 4 pcs

Available to order
Price on request
13
AARDENBURG
Lock nut M10

Item no.: A1-28346 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Bolt M20 x 45

Item no.: A1-28347 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Flat washer 20

Item no.: A1-28348 · 16 pcs

Available to order
Price on request
16
AARDENBURG
Lock nut M20

Item no.: A1-28349 · 8 pcs

Available to order
Price on request
1
AARDENBURG
Allen bolt M12 x 80

Item no.: A1-28350 · 2 pcs

Available to order
Price on request
2
AARDENBURG
Locking pin JCB

Item no.: A1-28351 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Bolt M20 x 50

Item no.: A1-28352 · 6 pcs

Available to order
Price on request
5
AARDENBURG
Flat washer 20

Item no.: A1-28348 · 12 pcs

Available to order
Price on request
6
AARDENBURG
JCB lower Suspension

Item no.: A1-28353 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Lock nut M20

Item no.: A1-28349 · 6 pcs

Available to order
Price on request
1
AARDENBURG
Skid right side

Item no.: A1-28354 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod Delta S 1000

Item no.: A1-28355 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Deflection chain rod Delta S 1200

Item no.: A1-28356 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Delta S 1000

Item no.: A1-28357 · 40 pcs

Available to order
Price on request
3
AARDENBURG
Deflection chain link spacer Delta S 1200

Item no.: A1-28358 · 48 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain 5 sections Delta S 1000

Item no.: A1-28359 · 42 pcs

Available to order
Price on request
4
AARDENBURG
ø8 Chain 5 sections Delta S 1200

Item no.: A1-28360 · 50 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Delta S 1000

Item no.: A1-28361 · 11 pcs

Available to order
Price on request
5
AARDENBURG
Fixed counter knife Delta S 1200

Item no.: A1-28362 · 13 pcs

Available to order
Price on request
6
AARDENBURG
Carriage M12 x 30 Delta S 1000

Item no.: A1-28363 · 11 pcs

Available to order
Price on request
6
AARDENBURG
Carriage M12 x 30 Delta S 1200

Item no.: A1-28364 · 13 pcs

Available to order
Price on request
7
AARDENBURG
Bolt M10 x 25

Item no.: A1-28207 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Locking plate bottom

Item no.: A1-28365 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Grease hose

Item no.: A1-28366 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Locking plate side wall

Item no.: A1-28367 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Bolt M12 x 35

Item no.: A1-28368 · 4 pcs

Available to order
Price on request
12
AARDENBURG
Skid left side

Item no.: A1-28369 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 20 pcs

Available to order
Price on request
14
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 15 pcs

Available to order
Price on request
15
AARDENBURG
Cover plate

Item no.: A1-28370 · 1 pcs

Available to order
Price on request
16
AARDENBURG
Allen bolt M8 x 20

Item no.: A1-28371 · 10 pcs

Available to order
Price on request
17
AARDENBURG
Nut M12

Item no.: A1-28372 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Bolt M12 x 70

Item no.: A1-28334 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M10 x 30

Item no.: A1-28373 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Shield

Item no.: A1-28374 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 8 pcs

Available to order
Price on request
22
AARDENBURG
Lock nut M10

Item no.: A1-28375 · 8 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M8 x 65

Item no.: A1-28376 · 2 pcs

Available to order
Price on request
24
AARDENBURG
Flat washer 8

Item no.: A1-28377 · 4 pcs

Available to order
Price on request
25
AARDENBURG
Priority flow valve

Item no.: A1-28378 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Transition joint

Item no.: A1-28379 · 4 pcs

Available to order
Price on request
27
AARDENBURG
Lock nut M8

Item no.: A1-28380 · 2 pcs

Available to order
Price on request
28
AARDENBURG
Main housing 1000 Delta S 1000

Item no.: A1-28381 · 1 pcs

Available to order
Price on request
28
AARDENBURG
Main housing 1200 Delta S 1200

Item no.: A1-28382 · 1 pcs

Available to order
Price on request
1 Belt 17 x 1168
AARDENBURG Popular part
Belt 17 x 1168

Item no.: A1-28383 · 3 pcs

Available to order
Price on request
2
AARDENBURG
Keyless bushing 50 x 80

Item no.: A1-28384 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Pulley driveline

Item no.: A1-28385 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Center cover

Item no.: A1-28386 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Oil seal FB 50 x 80 x 10

Item no.: A1-28387 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Circlip Inner 80

Item no.: A1-28388 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Connecting sleeve

Item no.: A1-28390 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Bearing seat spacer

Item no.: A1-28391 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Motor mount

Item no.: A1-28392 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Transition joint

Item no.: A1-28393 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Transition joint

Item no.: A1-28394 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Bolt M10 x 50

Item no.: A1-28395 · 4 pcs

Available to order
Price on request
14
AARDENBURG
Spring washer 10

Item no.: A1-28396 · 4 pcs

Available to order
Price on request
15
AARDENBURG
Flat washer 10

Item no.: A1-28345 · 4 pcs

Available to order
Price on request
16
AARDENBURG
Piston motor A2F28W2P1G

Item no.: A1-28397 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Locking nut M12

Item no.: A1-28398 · 4 pcs

Available to order
Price on request
18
AARDENBURG
Fender washer 12

Item no.: A1-28399 · 4 pcs

Available to order
Price on request
19
AARDENBURG
Bolt M12 x 45

Item no.: A1-28400 · 4 pcs

Available to order
Price on request
20
AARDENBURG
Keyless bushing 40 x 80

Item no.: A1-28401 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Bearing seat left side

Item no.: A1-28402 · 1 pcs

Available to order
Price on request
2
AARDENBURG Popular part
Bearing 1308

Item no.: A1-28403 · 2 pcs

Available to order
Price on request
3
AARDENBURG
Oil seal FB 60 x 90 x10

Item no.: A1-28404 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Locking nut M16 Delta S 1000

Item no.: A1-28405 · 16 pcs

Available to order
Price on request
4
AARDENBURG
Locking nut M16 Delta S 1200

Item no.: A1-28406 · 20 pcs

Available to order
Price on request
5 Hammer Delta S 1000
AARDENBURG
Hammer Delta S 1000

Item no.: A1-28407 · 16 pcs

In stock
29,00 EUR +VAT
5 Hammer Delta S 1000
AARDENBURG Popular part
Hammer Delta S 1000

Item no.: A1-28407 · 20 pcs

In stock
29,00 EUR +VAT
6
AARDENBURG
Bolt M16 x 120 Delta S 1000

Item no.: A1-28409 · 16 pcs

Available to order
Price on request
6
AARDENBURG
Bolt M16 x 120 Delta S 1200

Item no.: A1-28410 · 20 pcs

Available to order
Price on request
7
AARDENBURG
Bearing seat right side

Item no.: A1-28411 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Allen bolt M12 x 30

Item no.: A1-28412 · 7 pcs

Available to order
Price on request
9
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Circlip Outer 40

Item no.: A1-28414 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Circlip Inner 90

Item no.: A1-28415 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Rotor 1000 Delta S 1000

Item no.: A1-28416 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Rotor 1200 Delta S 1200

Item no.: A1-28417 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Oil seal FB 40 x 70 x 8

Item no.: A1-28418 · 1 pcs

Available to order
Price on request
14
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 7 pcs

Available to order
Price on request
15
AARDENBURG
Spring washer 12

Item no.: A1-28419 · 7 pcs

Available to order
Price on request
16
AARDENBURG
Bolt M12 x 30

Item no.: A1-28420 · 7 pcs

Available to order
Price on request
1
AARDENBURG
Trailing roller 1000 Delta S 1000

Item no.: A1-28421 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Trailing roller 1200 Delta S 1200

Item no.: A1-28422 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Circlip outer 40

Item no.: A1-28423 · 2 pcs

Available to order
Price on request
3
AARDENBURG Popular part
Bearing 6308

Item no.: A1-28424 · 2 pcs

Available to order
Price on request
4
AARDENBURG
O-ring 120 x 3.55

Item no.: A1-28425 · 2 pcs

Available to order
Price on request
5
AARDENBURG
Roller cover

Item no.: A1-28426 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Oil seal FB 50 x 68 x 8

Item no.: A1-28427 · 2 pcs

Available to order
Price on request
7
AARDENBURG
Circlip inner 68

Item no.: A1-28428 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Bolt M16 x 45

Item no.: A1-28261 · 4 pcs

Available to order
Price on request
9
AARDENBURG
Flat washer 16

Item no.: A1-28429 · 8 pcs

Available to order
Price on request
10
AARDENBURG
Lock nut M16

Item no.: A1-28430 · 4 pcs

Available to order
Price on request
11
AARDENBURG
Roller bracket left side

Item no.: A1-28431 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Grease nipple M6

Item no.: A1-28413 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Allen bolt M8 x 25

Item no.: A1-28432 · 8 pcs

Available to order
Price on request
14
AARDENBURG
Spring washer 8

Item no.: A1-28433 · 8 pcs

Available to order
Price on request
15
AARDENBURG
Bolt M12 x 40

Item no.: A1-28271 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Flat washer 12

Item no.: A1-28335 · 4 pcs

Available to order
Price on request
17
AARDENBURG
Lock nut M12

Item no.: A1-28336 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Scraper bar 1000 Delta S 1000

Item no.: A1-28434 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Scraper bar 1200 Delta S 1200

Item no.: A1-28435 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Roller bracket right side

Item no.: A1-28436 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 1

Item no.: A1-28437 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 2

Item no.: A1-28438 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 3

Item no.: A1-28439 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 4

Item no.: A1-28440 · 1 pcs

Available to order
Price on request
0
AARDENBURG
Hydraulic hose no. 5

Item no.: A1-28441 · 1 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
