AARDENBURG

X-Delta XL 1500 Grizzly, Fixed teeth forestry mulcher for excavator,150 cm

Available to order 0.0 0 reviews Item no.: A01-6543

Parameters

Weight
1450 kg
V-Belts
7 pcs
Hammer PCs
34 pcs
RPM
1632-2226 rpm
Max tree diameter
20 cm
Oil flow
110-150 l/min
Hydraulic pressure
250 bar
Working width
1500 mm
Excavator weight
14-20 t

Description

The X-Delta XL 1500 Grizzly is a fixed-tooth forestry shredder for excavators, capable of effectively clearing normal to hard forest vegetation, making it an ideal choice for landscaping. This heavy-duty mulcher features fixed tines, delivering class-leading cutting performance and reducing the need for frequent maintenance.  It allows the operator to control the opening and closing of the door directly from the cab, conveniently and safely. The durable construction of the forestry mulcher ensures long life and reliability.

Reviews

0.0 0 reviews

We only show reviews from genuine buyers!

No reviews yet for this product!

Help others out and tell them what you think of this product.

Please sign in to review this product!

Your name
Email address
Rating (1-5) Your review

Warranty

Under European Union warranty rules we provide 2 years of warranty for private individuals and 1 year for companies and businesses. Manufacturers may, however, set their own warranty periods.

Warranty handling

In case of a warranty issue, please fill in the warranty form. Once reported, we send the case for review and reply within 48 hours with the next steps for your case.

Fill in the warranty form

Have a question? We can help!

Call us on +36 56 770 010 or send an email to sales@agrohof.com — our colleagues reply within 2-4 hours!

Exploded view

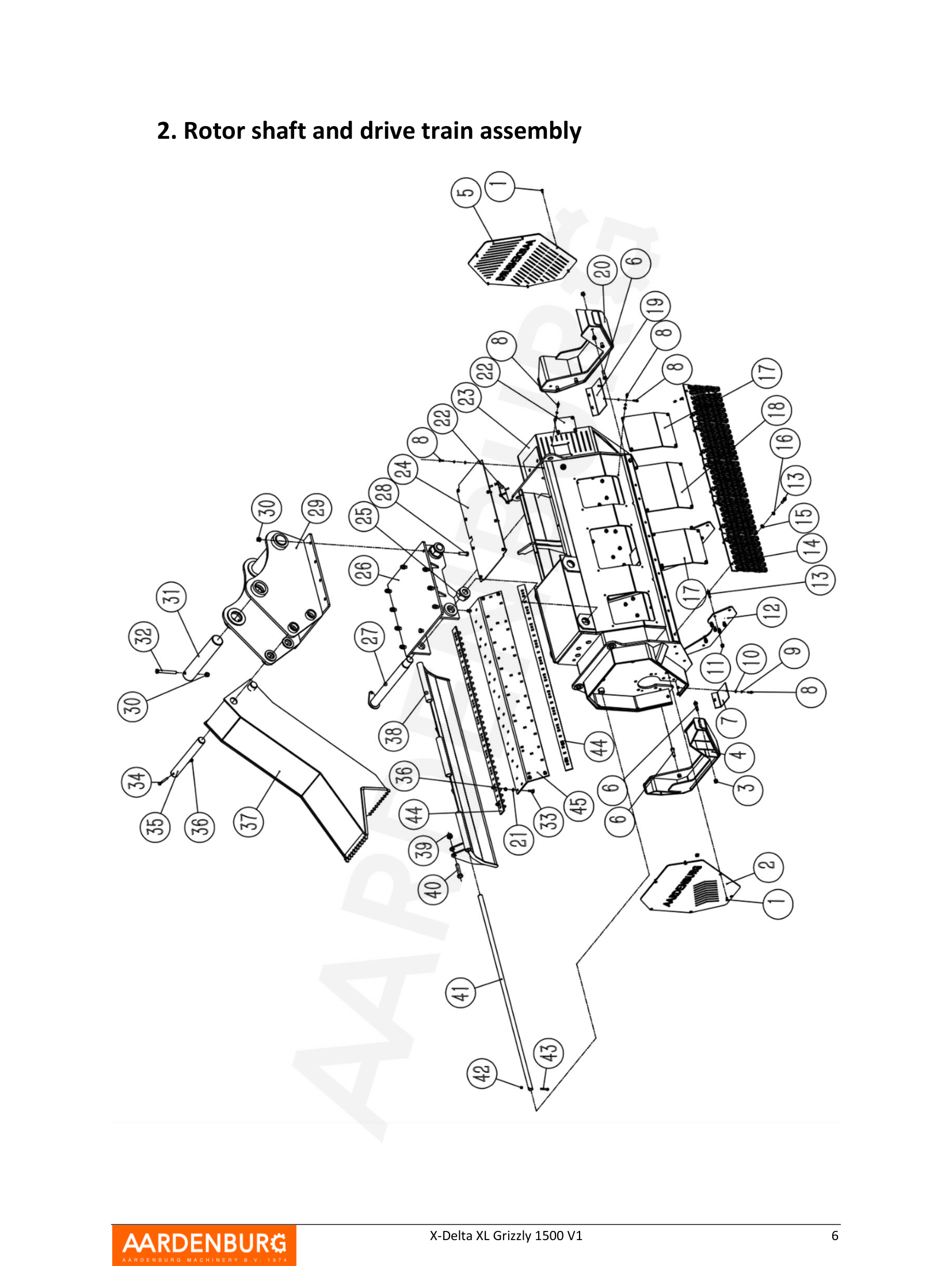

x-delta-xl-grizzly-1500-parts-list-engli__02-2-rotor-shaft-and-drive-train-assembly__p06.png

Diagrams

1
AARDENBURG
Grease hose bearing right

Item no.: A1-28052 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Bolt M16x45

Item no.: A1-25131 · 10 pcs

Available to order
Price on request
3
AARDENBURG
Spring washer M 16

Item no.: A1-28053 · 10 pcs

Available to order
Price on request
4
AARDENBURG
Bearing cover

Item no.: A1-28054 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Circlip inner 130

Item no.: A1-28055 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Circlip outer 60

Item no.: A1-28056 · 1 pcs

Available to order
Price on request
7
AARDENBURG Popular part
Bearing 2312

Item no.: A1-28057 · 2 pcs

Available to order
Price on request
8
AARDENBURG
Oil seal FB75x115x8

Item no.: A1-28058 · 2 pcs

Available to order
Price on request
9
AARDENBURG
Circlip inner 115

Item no.: A1-28059 · 2 pcs

Available to order
Price on request
10
AARDENBURG
Rotor bearing housing R

Item no.: A1-28060 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Grass ring

Item no.: A1-28061 · 2 pcs

Available to order
Price on request
12
AARDENBURG
Rotor shaft

Item no.: A1-28062 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Allenbolt M20x1.5x140- 12.9

Item no.: A1-28063 · 34 pcs

Available to order
Price on request
14
AARDENBURG Popular part
Hammer

Item no.: A1-28064 · 34 pcs

Available to order
Price on request
15
AARDENBURG
Self-locking nut M20x1.5- 10.9

Item no.: A1-28065 · 34 pcs

Available to order
Price on request
16
AARDENBURG
Grease nipple M8x1

Item no.: A1-25238 · 3 pcs

Available to order
Price on request
17
AARDENBURG
Grease hose bearing left

Item no.: A1-28066 · 1 pcs

Available to order
Price on request
18
AARDENBURG
Hose clamp R-type ø 10

Item no.: A1-28067 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Spring washer M6

Item no.: A1-28068 · 5 pcs

Available to order
Price on request
20
AARDENBURG
Bolt M6x12

Item no.: A1-28069 · 5 pcs

Available to order
Price on request
21
AARDENBURG
Rotor bearing housing L

Item no.: A1-28070 · 1 pcs

Available to order
Price on request
22
AARDENBURG
Spring washer M10

Item no.: A1-25264 · 38 pcs

Available to order
Price on request
23
AARDENBURG
Bolt M10x35

Item no.: A1-25273 · 4 pcs

Available to order
Price on request
24
AARDENBURG
Oil seal FB60x130x10

Item no.: A1-28071 · 1 pcs

Available to order
Price on request
25
AARDENBURG
Bearing housing end cover

Item no.: A1-28072 · 1 pcs

Available to order
Price on request
26
AARDENBURG
Spring washer M8

Item no.: A1-25125 · 6 pcs

Available to order
Price on request
27
AARDENBURG
Bolt M8x25

Item no.: A1-25270 · 4 pcs

Available to order
Price on request
28
AARDENBURG
Keyless bushing Z3-60*90L

Item no.: A1-28073 · 2 pcs

Available to order
Price on request
29
AARDENBURG
Rotor pulley

Item no.: A1-28074 · 2 pcs

Available to order
Price on request
30
AARDENBURG
Bolt M8x25

Item no.: A1-25270 · 6 pcs

Available to order
Price on request
31
AARDENBURG
V-belt cover left side

Item no.: A1-28075 · 1 pcs

Available to order
Price on request
32 V-belt XPB1600
AARDENBURG Popular part
V-belt XPB1600

Item no.: A1-28076 · 7 pcs

Available to order
Price on request
33
AARDENBURG
Nut M16

Item no.: A1-25294 · 4 pcs

Available to order
Price on request
34
AARDENBURG
Adjuster plate

Item no.: A1-28077 · 1 pcs

Available to order
Price on request
35
AARDENBURG
Self-locking nut M16

Item no.: A1-25171 · 4 pcs

Available to order
Price on request
36
AARDENBURG
Spring washer M 16

Item no.: A1-28053 · 4 pcs

Available to order
Price on request
37
AARDENBURG
Bolt M16x65

Item no.: A1-28078 · 4 pcs

Available to order
Price on request
38
AARDENBURG
Grease hose drive line

Item no.: A1-28079 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Bell housing

Item no.: A1-28080 · 1 pcs

Available to order
Price on request
40
AARDENBURG
Oil Seal FB65x90x10

Item no.: A1-28081 · 1 pcs

Available to order
Price on request
41
AARDENBURG Popular part
Bearing 6213-2RZ

Item no.: A1-28082 · 2 pcs

Available to order
Price on request
42
AARDENBURG
Pulley shaft

Item no.: A1-28083 · 1 pcs

Available to order
Price on request
43
AARDENBURG
Circlip inner 120

Item no.: A1-25153 · 1 pcs

Available to order
Price on request
44
AARDENBURG
Spring washer M12

Item no.: A1-25132 · 4 pcs

Available to order
Price on request
45
AARDENBURG
Bolt M12x60

Item no.: A1-28084 · 4 pcs

Available to order
Price on request
46
AARDENBURG
Pistonmotor A2F63W2Z6

Item no.: A1-28085 · 1 pcs

Available to order
Price on request
47
AARDENBURG
Hydraulic assembly

Item no.: A1-28086 · 1 pcs

Available to order
Price on request
48
AARDENBURG
Slef-locking nut M20

Item no.: A1-28087 · 1 pcs

Available to order
Price on request
49
AARDENBURG
Cylinder hinge pin

Item no.: A1-28088 · 1 pcs

Available to order
Price on request
50
AARDENBURG
Hose clamp R-type ø13

Item no.: A1-28089 · 4 pcs

Available to order
Price on request
51
AARDENBURG
Main housing

Item no.: A1-28090 · 1 pcs

Available to order
Price on request
52
AARDENBURG
Electrical assembly

Item no.: A1-28091 · 1 pcs

Available to order
Price on request
1
AARDENBURG
Bolt M8x25

Item no.: A1-25270 · 12 pcs

Available to order
Price on request
2
AARDENBURG
V-belt cover right side

Item no.: A1-28092 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Self-locking nut M14

Item no.: A1-25278 · 10 pcs

Available to order
Price on request
4
AARDENBURG
Skid right side

Item no.: A1-28093 · 1 pcs

Available to order
Price on request
5
AARDENBURG
V-belt cover left side

Item no.: A1-28094 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Bolt M14x50

Item no.: A1-25275 · 12 pcs

Available to order
Price on request
7
AARDENBURG
V-belt cover bottom plate

Item no.: A1-28095 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Bolt M8x25

Item no.: A1-25270 · 34 pcs

Available to order
Price on request
9
AARDENBURG
Spring washer M8

Item no.: A1-25125 · 46 pcs

Available to order
Price on request
10
AARDENBURG
Washer 8

Item no.: A1-28096 · 42 pcs

Available to order
Price on request
11
AARDENBURG
Self-locking nut M12

Item no.: A1-25288 · 12 pcs

Available to order
Price on request
12
AARDENBURG
Side wall reinforcement plate

Item no.: A1-28097 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Bolt M12x40

Item no.: A1-25133 · 22 pcs

Available to order
Price on request
14
AARDENBURG
Chain segment

Item no.: A1-28098 · 5 pcs

Available to order
Price on request
15
AARDENBURG
Washer M12

Item no.: A1-28099 · 10 pcs

Available to order
0,78 EUR +VAT
16
AARDENBURG
Spring washer M12

Item no.: A1-25132 · 14 pcs

Available to order
Price on request
17
AARDENBURG
Inspection hatch 1

Item no.: A1-28100 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Inspection hatch 2

Item no.: A1-28101 · 1 pcs

Available to order
Price on request
19
AARDENBURG
Lower left coverplate

Item no.: A1-28102 · 1 pcs

Available to order
Price on request
20
AARDENBURG
Skid left

Item no.: A1-28103 · 1 pcs

Available to order
Price on request
21
AARDENBURG
Washer 10

Item no.: A1-28104 · 43 pcs

Available to order
Price on request
22
AARDENBURG
V-belt inspection cover

Item no.: A1-28105 · 2 pcs

Available to order
Price on request
23
AARDENBURG
Main housing

Item no.: A1-25281 · 1 pcs

Available to order
Price on request
24
AARDENBURG
Top inspection hatch 1

Item no.: A1-28106 · 1 pcs

Available to order
Price on request
25
AARDENBURG
Self-locking nut M48

Item no.: A1-28107 · 2 pcs

Available to order
Price on request
26
AARDENBURG
Suspension mount

Item no.: A1-28108 · 1 pcs

Available to order
Price on request
27
AARDENBURG
Suspension mounting pin

Item no.: A1-28109 · 2 pcs

Available to order
Price on request
28
AARDENBURG
Bolt M16x45

Item no.: A1-25131 · 10 pcs

Available to order
Price on request
29
AARDENBURG
Excavator Mounting Bracket

Item no.: A1-28110 · 1 pcs

Available to order
Price on request
30
AARDENBURG
Self-locking nut M16

Item no.: A1-25171 · 12 pcs

Available to order
Price on request
31
AARDENBURG
Excavator connection pin

Item no.: A1-28111 · 2 pcs

Available to order
Price on request
32
AARDENBURG
Bolt M16x140

Item no.: A1-28112 · 2 pcs

Available to order
Price on request
33
AARDENBURG
Bolt M10x35

Item no.: A1-25273 · 43 pcs

Available to order
Price on request
34
AARDENBURG
Bolt M10x85

Item no.: A1-28113 · 2 pcs

Available to order
Price on request
35
AARDENBURG
Pusher mounting pin

Item no.: A1-28114 · 2 pcs

Available to order
Price on request
36
AARDENBURG
Self-locking nut M10

Item no.: A1-25267 · 45 pcs

Available to order
Price on request
37
AARDENBURG
Pusher arm

Item no.: A1-28115 · 1 pcs

Available to order
Price on request
38
AARDENBURG
Mulching door

Item no.: A1-28116 · 1 pcs

Available to order
Price on request
39
AARDENBURG
Self-locking nut M20

Item no.: A1-28117 · 1 pcs

Available to order
Price on request
40
AARDENBURG
Bolt M20x80

Item no.: A1-28118 · 1 pcs

Available to order
Price on request
41
AARDENBURG
Mulching door hinge pin

Item no.: A1-28119 · 1 pcs

Available to order
Price on request
42
AARDENBURG
Self-locking nut M8

Item no.: A1-28120 · 1 pcs

Available to order
Price on request
43
AARDENBURG
Bolt M8x50

Item no.: A1-28121 · 1 pcs

Available to order
Price on request
44
AARDENBURG Popular part
Counter knive

Item no.: A1-28122 · 2 pcs

Available to order
Price on request
45
AARDENBURG
Reinforcement plate

Item no.: A1-28123 · 1 pcs

Available to order
Price on request

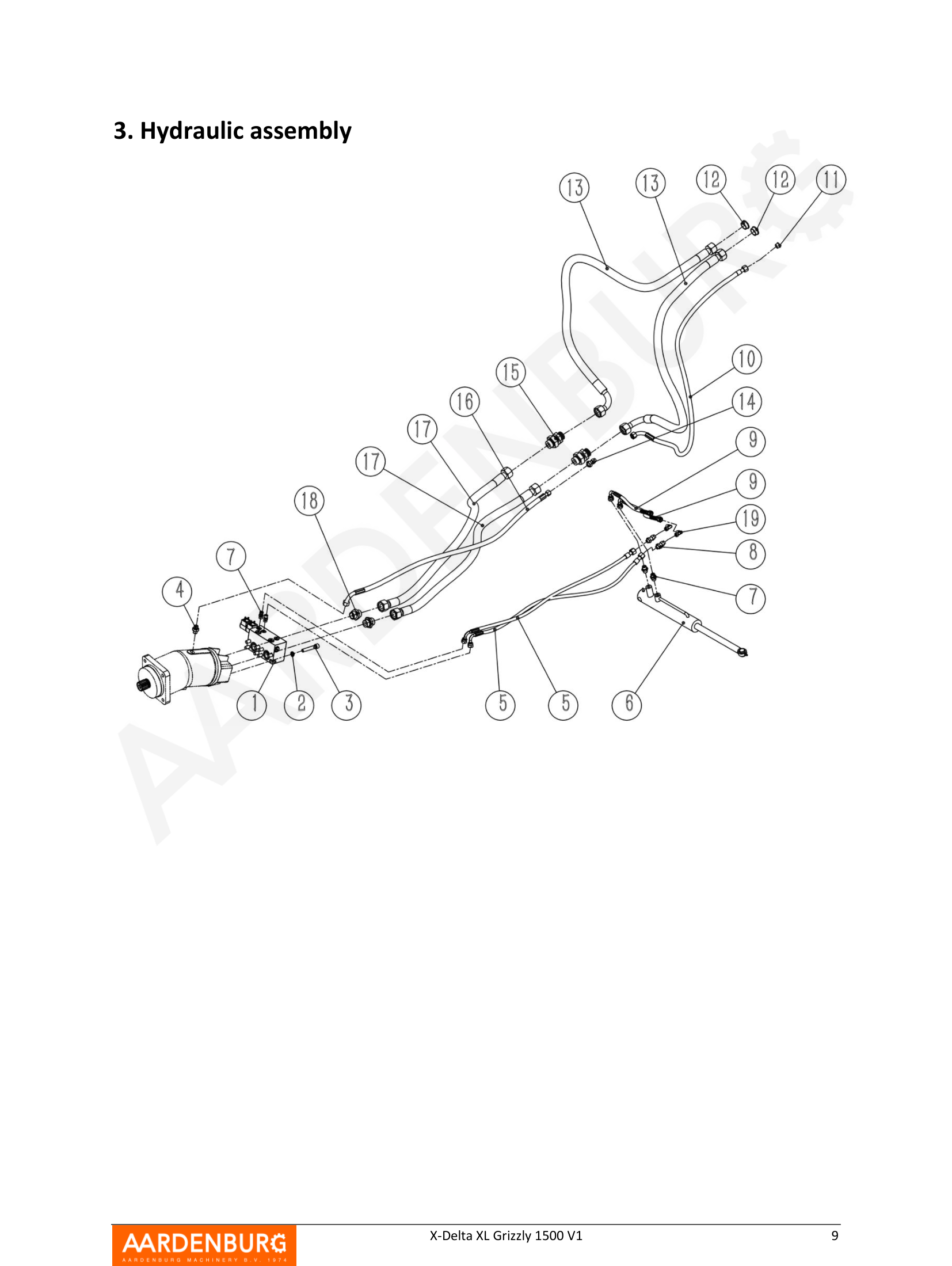

1
AARDENBURG
Valve block

Item no.: A1-28124 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Spring washer M12

Item no.: A1-25132 · 8 pcs

Available to order
Price on request
3
AARDENBURG
Bolt M12x75

Item no.: A1-28125 · 8 pcs

Available to order
Price on request
4
AARDENBURG
Nipple M18x1.5-M18x1.5

Item no.: A1-28126 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Hydraulic hose 2

Item no.: A1-28127 · 2 pcs

Available to order
Price on request
6
AARDENBURG
Hydraulic cylinder

Item no.: A1-28128 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Nipple G1/4-M14x1.5

Item no.: A1-28129 · 4 pcs

Available to order
Price on request
8
AARDENBURG
Bulkhead union M14x1.5

Item no.: A1-28130 · 2 pcs

Available to order
Price on request
9
AARDENBURG
Hydraulic hose 6

Item no.: A1-28131 · 2 pcs

Available to order
Price on request
10
AARDENBURG
Hydraulic hose 5

Item no.: A1-28132 · 1 pcs

Available to order
Price on request
11
AARDENBURG
BSP G3/8 plug

Item no.: A1-28133 · 1 pcs

Available to order
Price on request
12
AARDENBURG
BSPG 1 plug

Item no.: A1-28134 · 2 pcs

Available to order
Price on request
13
AARDENBURG
Hydraulic hose 4

Item no.: A1-28135 · 2 pcs

Available to order
Price on request
14
AARDENBURG
Bulkhead union M18x1.5

Item no.: A1-28136 · 1 pcs

Available to order
Price on request
15
AARDENBURG
Bulkhead union M30x2

Item no.: A1-28137 · 2 pcs

Available to order
Price on request
16
AARDENBURG
Hydraulic hose 3

Item no.: A1-28138 · 1 pcs

Available to order
Price on request
17
AARDENBURG
Hydraulic hose 1

Item no.: A1-28139 · 2 pcs

Available to order
Price on request
18
AARDENBURG
Nipple G3/4-M30x2

Item no.: A1-28140 · 2 pcs

Available to order
Price on request
19
AARDENBURG
Nipple 90º M14x1.5- M14x1.5

Item no.: A1-28141 · 2 pcs

Available to order
Price on request

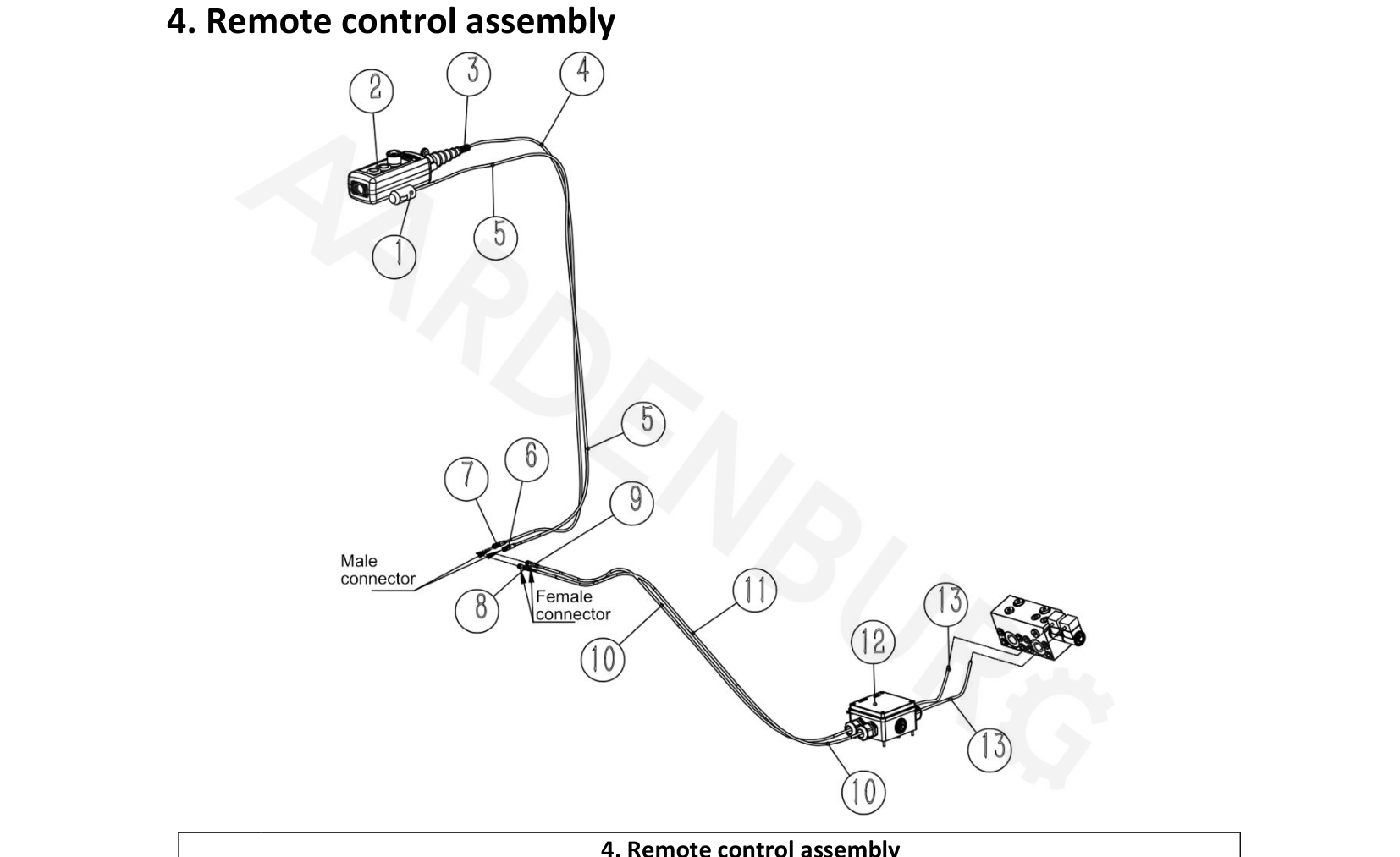

1
AARDENBURG
Cigarette lighter plug

Item no.: A1-28142 · 1 pcs

Available to order
Price on request
2
AARDENBURG
Switch box

Item no.: A1-28143 · 1 pcs

Available to order
Price on request
3
AARDENBURG
Wire conduit

Item no.: A1-28144 · 2 pcs

Available to order
Price on request
4
AARDENBURG
Switchbox wire 1

Item no.: A1-28145 · 1 pcs

Available to order
Price on request
5
AARDENBURG
Power wire 1

Item no.: A1-28146 · 1 pcs

Available to order
Price on request
6
AARDENBURG
Plug DT06-2S-0122 Female

Item no.: A1-28147 · 1 pcs

Available to order
Price on request
7
AARDENBURG
Plug DT06-3S-0122 Female

Item no.: A1-28148 · 1 pcs

Available to order
Price on request
8
AARDENBURG
Plug DT06-3P-0122 Male

Item no.: A1-28149 · 1 pcs

Available to order
Price on request
9
AARDENBURG
Plug DT06-2P-0122 Male

Item no.: A1-28150 · 1 pcs

Available to order
Price on request
10
AARDENBURG
Power wire 2

Item no.: A1-28151 · 1 pcs

Available to order
Price on request
11
AARDENBURG
Switchbox wire 2

Item no.: A1-28152 · 1 pcs

Available to order
Price on request
12
AARDENBURG
Junction box

Item no.: A1-28153 · 1 pcs

Available to order
Price on request
13
AARDENBURG
Selenoid wire

Item no.: A1-28154 · 2 pcs

Available to order
Price on request
Newsletter subscription

Newsletter subscription

Subscribe to our newsletter to be the first to know about the latest agricultural machines and parts, special promotions and exclusive offers!

Thank you! We will call you back shortly.
Thank you! We will contact you shortly with the price and delivery time.
